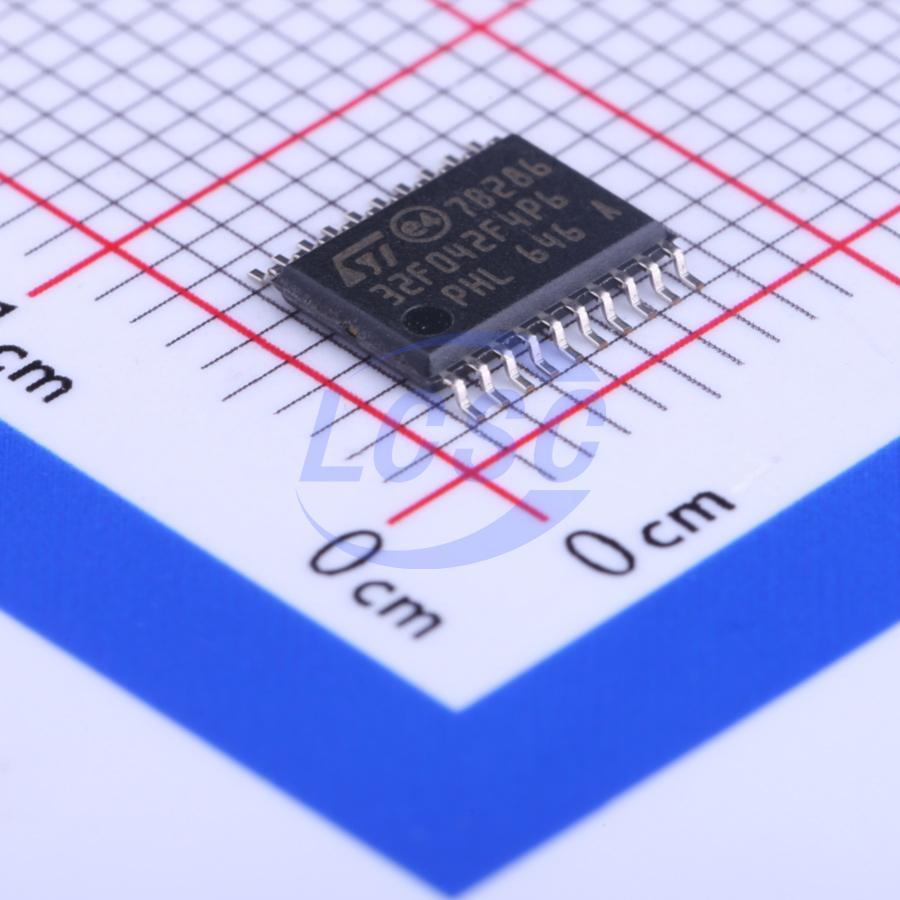

STM32F042F4P6
ARM Cortex-M0 32 Bit 48MHz TSSOP-20 Microcontrollers RoHS
TSSOP-20ROHS3 CompliantActive
ARM-based 32-bit MCU, up to 32 KB Flash, crystal-less USB FS 2.0, CAN, 9 timers, ADC and comm. interfaces, 2.0 - 3.6 V
- Manufacturer
- ST
- Manufacturer part #
- STM32F042F4P6
- Store part #
- C81002
- Package / case
- TSSOP-20
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,000 in stock
#C81002
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.73 | ₹264.73 |
| 10+ | ₹227.45 | ₹2,274.50 |
| 30+ | ₹204.24 | ₹6,127.20 |
| 100+ | ₹165.44 | ₹16,544.00 |
| 500+ | ₹154.59 | ₹77,295.00 |
| 1,000+ | ₹150.04 | ₹1,50,040.00 |
1 × ₹264.73
₹264.73
excl. GST
₹312.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 74 per tube
STM32F042F4P6
₹264.73 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 16
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.65V~3.6V
- Program Memory Type
- FLASH
- Program Storage Size
- 16KB
- CPU Core
- ARM Cortex-M0
- Core Size
- 32 Bit
- CPU Maximum Speed
- 48MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 3A991A2
- Packaging
- Tube-packed
- Standard pack
- 74 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.162 g
Overview
ARM-based 32-bit MCU, up to 32 KB Flash, crystal-less USB FS 2.0, CAN, 9 timers, ADC and comm. interfaces, 2.0 - 3.6 V
Key features
- Core: ARM 32-bit Cortex-M0 CPU, frequency up to 48 MHz
- Memories - 16 to 32 Kbytes of Flash memory - 6 Kbytes of SRAM with HW parity
- CRC calculation unit
- Reset and power management - Digital and I/Os supply: VDD = 2 V to 3.6 V - Analog supply: VDDA = from VDD to 3.6 V Selected I/O: VDDIO2 = 1.65 V to 3.6 V - Power-on/Power down reset (POR/PDR) - Programmable voltage detector (PVD) - Low power modes: Sleep, Stop, Standby VBAT supply for RTC and backup registers
- Clock management - 4 to 32 MHz crystal oscillator - 32kHz oscillator for RTC with calibration - Internal 8 MHz RC with x6 PLL option - Internal 40 kHz RC oscillator - Internal 48 MHz oscillator with automatic trimming based on ext. synchronization
- Up to 38 fast I/Os - All mappable on external interrupt vectors - Up to 24 I/Os with 5 V tolerant capability and 8 with independent suppy VDDIO2
- 5-channel DMA controller
- One 12-bit, 1.0 μs ADC (up to 10 channels) - Conversion range: 0 to 3.6 V - Separate analog supply: 2.4 V to 3.6 V
- Up to 14 capacitive sensing channels for touchkey, linear and rotary touch sensors
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- One 16-bit advanced-control timer for six channel PwM output
- One 32-bit and four 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
- Independent and system watchdog timers
- SysTick timer
- One I2C interface supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup
- Two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA, auto baud rate detection and wakeup feature
- Two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, one with I2S interface multiplexed
- CAN interface
- USB 2.0 full-speed interface, able to run from internal 48 MHz oscillator and with BCD and LPM support
- HDMI CEC, wakeup on header reception
- Serial wire debug (SWD)
- 96-bit unique ID
- All packages ECOPACK2
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STM32F042F6P6TR#C2969989ST · TSSOP-20(4.4x6.5) | ST | TSSOP-20(4.4x6.5) | 2,950 | ₹236.05 · 2,950 in stock | View |
 | STM32F042F6P6#C81000ST · TSSOP-20 | ST | TSSOP-20 | 1,790 | ₹272.93 · 1,790 in stock | View |
 | STM32F042F6P7#C2969784ST · TSSOP-20(4.4x6.5) | ST | TSSOP-20(4.4x6.5) | 20 | ₹776.50 · 20 in stock | View |
 | FCM32F042F6P6#C5160546Flashchip Microelectronics · TSSOP-20 | Flashchip Microelectronics | TSSOP-20 | 1,725 | ₹104.73 · 1,725 in stock | View |
 | N32G030F6S7#C2928157Nations Technologies Inc · TSSOP-20 | Nations Technologies Inc | TSSOP-20 | 498 | ₹113.35 · 498 in stock | View |
