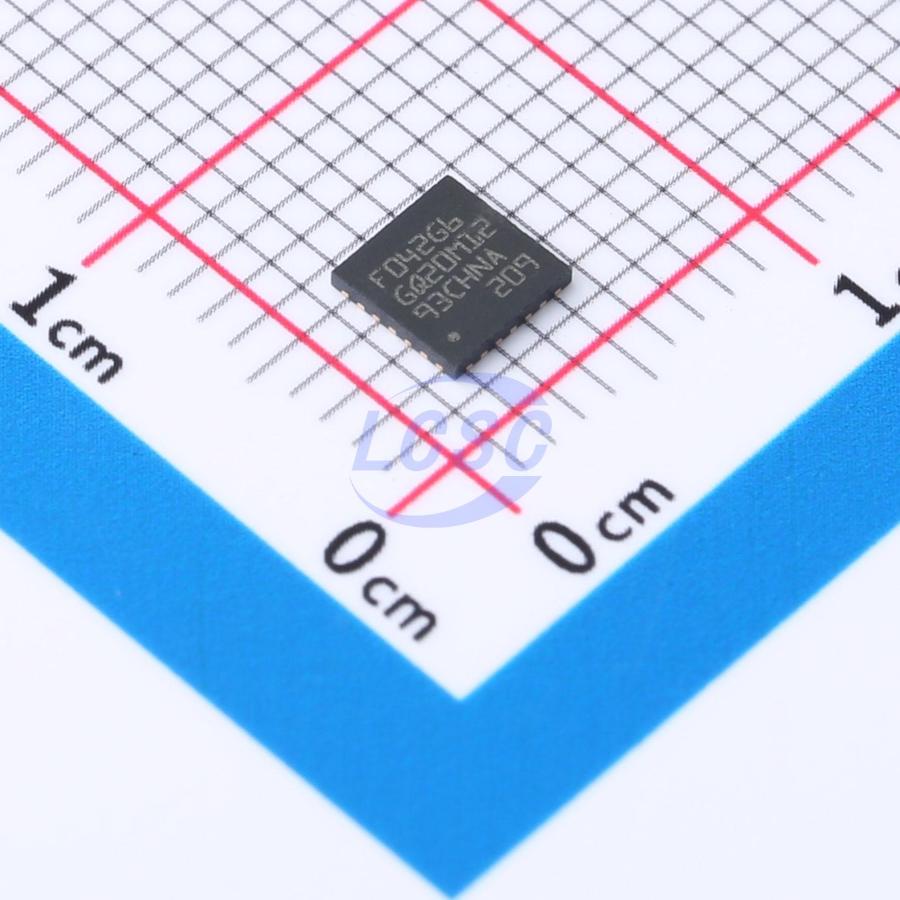

STM32F042G6U6TR

ARM Cortex-M0 32 Bit 48MHz UFQFN-28 Microcontrollers RoHS

UFQFN-28ROHS3 CompliantActive

ARM-based 32-bit MCU, up to 32 KB Flash, crystal-less USB FS 2.0, CAN, 9 timers, ADC and comm. interfaces, 2.0 - 3.6 V

Manufacturer: ST
Manufacturer part #: STM32F042G6U6TR
Store part #: C2971720
Package / case: UFQFN-28
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,526 in stock

#C2971720

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹275.58	₹275.58
10+	₹233.81	₹2,338.10
30+	₹207.50	₹6,225.00
100+	₹180.52	₹18,052.00
500+	₹168.35	₹84,175.00
1,000+	₹163.13	₹1,63,130.00

Quantity (min 1)

1 × ₹275.58

₹275.58

excl. GST

₹325.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

STM32F042G6U6TR

₹275.58 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 24
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 1.65V~3.6V
Program Storage Size: 32KB
CPU Core: ARM Cortex-M0
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.315 g

Overview

ARM-based 32-bit MCU, up to 32 KB Flash, crystal-less USB FS 2.0, CAN, 9 timers, ADC and comm. interfaces, 2.0 - 3.6 V

Key features

Core: ARM 32-bit Cortex-M0 CPU, frequency up to 48 MHz
Memories - 16 to 32 Kbytes of Flash memory - 6 Kbytes of SRAM with HW parity
CRC calculation unit
Reset and power management - Digital and I/Os supply: VDD = 2 V to 3.6 V - Analog supply: VDDA = from VDD to 3.6 V Selected I/O: VDDIO2 = 1.65 V to 3.6 V - Power-on/Power down reset (POR/PDR) - Programmable voltage detector (PVD) - Low power modes: Sleep, Stop, Standby VBAT supply for RTC and backup registers
Clock management - 4 to 32 MHz crystal oscillator - 32kHz oscillator for RTC with calibration - Internal 8 MHz RC with x6 PLL option - Internal 40 kHz RC oscillator - Internal 48 MHz oscillator with automatic trimming based on ext. synchronization
Up to 38 fast I/Os - All mappable on external interrupt vectors - Up to 24 I/Os with 5 V tolerant capability and 8 with independent suppy VDDIO2
5-channel DMA controller
One 12-bit, 1.0 μs ADC (up to 10 channels) - Conversion range: 0 to 3.6 V - Separate analog supply: 2.4 V to 3.6 V
Up to 14 capacitive sensing channels for touchkey, linear and rotary touch sensors
Calendar RTC with alarm and periodic wakeup from Stop/Standby
One 16-bit advanced-control timer for six channel PwM output
One 32-bit and four 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
Independent and system watchdog timers
SysTick timer
One I2C interface supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup
Two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA, auto baud rate detection and wakeup feature
Two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, one with I2S interface multiplexed
CAN interface
USB 2.0 full-speed interface, able to run from internal 48 MHz oscillator and with BCD and LPM support
HDMI CEC, wakeup on header reception
Serial wire debug (SWD)
96-bit unique ID
All packages ECOPACK2
