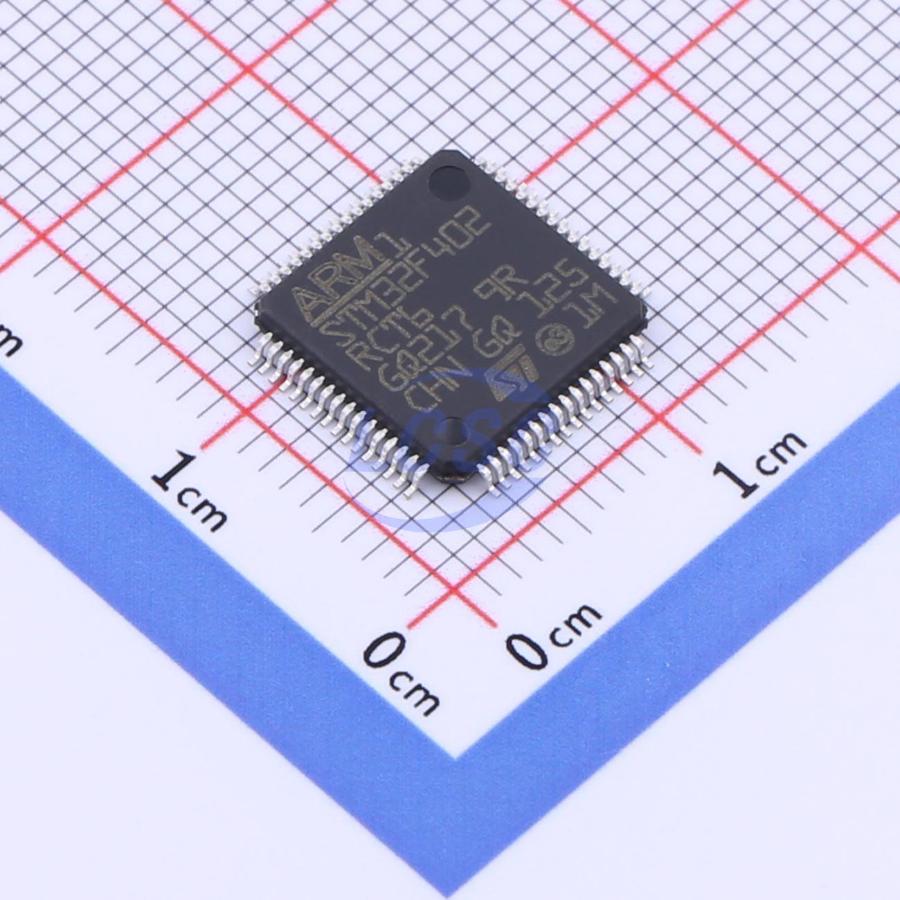

STM32F402RCT6

The STM32F402xC devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 84 MHz. The Cortex®-M4 core features a single-precision floating-point unit (FPU) supporting all ARM® single-precision data-processing instructions and data types, a DSP instruction set, and a memory protection unit (MPU) for enhanced application security. The STM32F402xC devices incorporate high-speed embedded memory with up to 256 Kbytes of Flash and 64 Kbytes of SRAM, along with an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix. All devices include one 12-bit ADC, one low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, and two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces: - Up to three I2C - Up to four SPI - Two full-duplex I2S. To achieve audio-class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or from an external clock for synchronization. - Three USART - SDIO interface - USB 2.0 OTG full-speed interface The STM32F402xC devices operate over a temperature range of -40 to +85°C and a supply voltage range of 1.7 V (PDR OFF) to 3.6 V. A comprehensive set of power-saving modes is available for low-power application design.

Applications

• Motor drive and application control
• Medical devices
• Industrial applications: PLC, inverters, circuit breakers, printers, scanners
• Alarm systems, video phones, HVAC
• Home audio equipment
• Mobile phone sensor hubs

Key features

• Dynamic Efficiency™ series using BAM (Batch Acquisition Mode), 1.7 V to 3.6 V supply, -40℃ to 85℃ temperature range
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive Real-Time Accelerator (ART Accelerator™) for zero-wait-state execution from Flash memory, up to 84 MHz CPU frequency, Memory Protection Unit, up to 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1) performance, DSP instruction set
• 1× 12-bit, 2.4 MSPS ADC (up to 16 channels)
• General-purpose DMA: 16-stream DMA controller with FIFO and burst support
• Up to 11 timers: up to six 16-bit and two 32-bit timers up to 84 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder inputs, two watchdog timers (independent and windowed), and one SysTick timer
• Debug modes: Serial Wire Debug (SWD) and JTAG interfaces
• Cortex®-M4 Trace Macrocell™
• Up to 81 I/O ports with interrupt capability, all 5 V-tolerant
• Up to 78 fast I/Os up to 42 MHz
• Up to 11 communication interfaces
• Up to 3× I2C interfaces (1 Mbit/s, SMBus/PMBus)
• Up to 3× USART (2× 10.5 Mbit/s, 1× 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control
• Up to 4× SPI (up to 42 Mbits/s at fCPU = 84 MHz), SPI2 and SPI3 with multiplexed full-duplex I2S, audio-grade accuracy via internal audio PLL or external clock
• SDIO interface
• Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY
• CRC calculation unit
• 96-bit unique ID
• RTC: sub-second accuracy, hardware calendar
• All packages ECOPACK2
