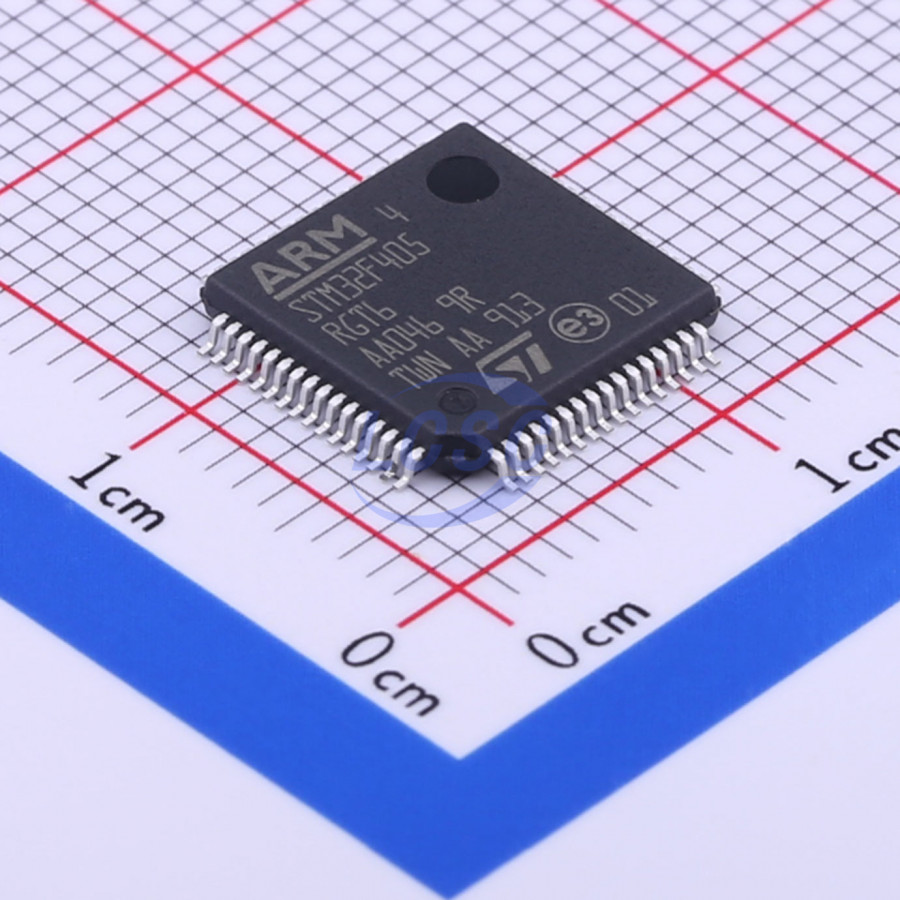

STM32F405RGT6
ARM Cortex-M4 32 Bit 168MHz LQFP-64(10x10) Microcontrollers RoHS
PopularLQFP-64(10x10)ROHS3 CompliantActive
ARM Cortex-M4 32b MCU+FPU, 210DMIPS, up to 1MB Flash/192+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 comm. interfaces & camera
- Manufacturer
- ST
- Manufacturer part #
- STM32F405RGT6
- Store part #
- C15742
- Package / case
- LQFP-64(10x10)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,262 in stock
#C15742
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹794.81 | ₹794.81 |
| 10+ | ₹707.13 | ₹7,071.30 |
| 30+ | ₹651.13 | ₹19,533.90 |
| 100+ | ₹596.87 | ₹59,687.00 |
1 × ₹794.81
₹794.81
excl. GST
₹937.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 160 per tray
STM32F405RGT6
₹794.81 for 1 + GST
Specifications
- DAC (Bit)
- 12bit
- ADC (Bit)
- 12bit
- Number of I/O
- 51
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V~3.6V
- Program Memory Type
- FLASH
- Program Storage Size
- 1MB
- CPU Core
- ARM Cortex-M4
- Core Size
- 32 Bit
- CPU Maximum Speed
- 168MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991A2
- Packaging
- Tray
- Standard pack
- 160 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
This product is a microcontroller available in multiple package options, including LQFP64 (10×10 mm), LQFP100 (14×14 mm), LQFP144 (20×20 mm), LQFP176 (24×24 mm), WLCSP90, and UFBGA176 (10×10 mm). It features an ARM 32-bit Cortex-M4 CPU with FPU, supporting multiple memory types and interfaces.
Key features
- Core: ARM 32-bit Cortex-M4 CPU (with FPU), Adaptive Real-Time Accelerator (ART Accelerator) enabling zero-wait-state execution from Flash, up to 168 MHz, MPU, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), DSP instructions
- Memories: Up to 1 MB Flash; up to 192+4 KB SRAM (including 64 KB CCM data RAM); flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
- LCD parallel interface supporting 8080/6800 modes
- Clock, reset and power management: 1.8 V to 3.6 V application supply and I/Os; POR, PDR, PVD and BOR support; 4 to 26 MHz crystal oscillator; internal 16 MHz factory-trimmed RC (1% accuracy); 32 kHz oscillator for RTC (with calibration); internal 32 kHz RC (with calibration)
- Low-power: Sleep, Stop and Standby modes; VBAT supply for RTC, 20×32-bit backup registers + optional 4 KB backup SRAM
- 3×12-bit, 2.4 MSPS ADCs: up to 24 channels, up to 7.2 MSPS in triple interleaved mode
- 2×12-bit DACs
- General-purpose DMA: 16-stream DMA controller with FIFO and burst support
- Up to 17 timers: up to 12×16-bit and 2×32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
- Debug: SWD and JTAG interfaces; Cortex-M4 Embedded Trace Macrocell
- Up to 140 I/O ports with interrupt capability: up to 136 fast I/Os up to 84 MHz; up to 138 5V-tolerant I/Os
- Up to 15 communication interfaces: up to 3×I2C (SMBus/PMBus); up to 4×USART/2×UART (10.5 Mbit/s, ISO7816, LIN, IrDA, modem control); up to 3×SPI (42 Mbit/s), 2 with muxed full-duplex I2S for audio-class accuracy via internal audio PLL or external clock; 2×CAN (2.0B Active); SDIO
- Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY; USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI; 10/100 Ethernet MAC with dedicated DMA (IEEE 1588v2 hardware, MII/RMII)
- 8- to 14-bit parallel camera interface up to 54 MB/s
- True random number generator
- CRC calculation unit
- 96-bit unique ID
- RTC: sub-second accuracy, hardware calendar
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STM32F405RGT6V#C1338696ST · LQFP-64(10x10) | ST | LQFP-64(10x10) | 6 | ₹2,243.60 · 6 in stock | View |
 | STM32F415RGT6TR#C2053883ST · LQFP-64(10x10) | ST | LQFP-64(10x10) | 4 | ₹1,837.49 · 4 in stock | View |
 | STM32F405RGT7#C1337199ST · LQFP-64(10x10) | ST | LQFP-64(10x10) | 26 | ₹2,337.97 · 26 in stock | View |
 | STM32F405RGT7TR#C2054405ST · LQFP-64(10x10) | ST | LQFP-64(10x10) | 3 | ₹1,725.63 · 3 in stock | View |
 | HK32F407RGT7#C41413191HK · LQFP-64(10x10) | HK | LQFP-64(10x10) | 332 | ₹485.20 · 332 in stock | View |
Questions about STM32F405RGT6
What are the primary computational and internal processing specifications of the STM32F405RGT6 microcontroller?
The STMicroelectronics STM32F405RGT6 is a high-performance microcontroller based on a 32-bit ARM Cortex-M4 processor core with an integrated hardware Floating Point Unit (FPU). It operates at a maximum clock frequency of 168 MHz, delivering up to 210 DMIPS of processing performance. The device incorporates ST's Adaptive Real-Time (ART) Accelerator, enabling 0-wait-state execution from embedded Flash memory under supported operating conditions. The microcontroller operates from a 1.8 V to 3.6 V supply voltage, making it suitable for a wide range of embedded and industrial applications.
How are the volatile RAM and non-volatile storage spaces allocated inside this specific MCU model?
The STM32F405RGT6 integrates 1 MB of embedded Flash memory for application storage together with 192 KB of SRAM, including a 64 KB Core Coupled Memory (CCM) SRAM dedicated to high-speed data access by the Cortex-M4 core. The CCM memory is directly connected to the processor core and is intended for performance-critical data and routines that benefit from low-latency memory access.
Which communication interfaces and signal conversion peripherals are integrated into the STM32F405RGT6?
The STM32F405RGT6 provides a comprehensive set of communication peripherals, including four USARTs, two UARTs, three SPI interfaces, three I²C interfaces, and two CAN 2.0B controllers. It also features USB OTG Full-Speed and High-Speed controllers for USB connectivity. For analog applications, the device integrates three 12-bit ADCs supporting up to 24 input channels and two 12-bit DAC channels. The LQFP64 package also provides numerous general-purpose I/O pins for flexible peripheral interfacing.
What are the physical package specifications and operating temperature range of the STM32F405RGT6?
The STM32F405RGT6 is supplied in a 64-pin Low-Profile Quad Flat Package (LQFP64) with a 10.0 mm × 10.0 mm body size. It is specified for the industrial operating temperature range of −40°C to +85°C, making it suitable for industrial and embedded applications requiring reliable operation across a wide range of ambient temperatures.
Why is the STM32F405RGT6 well suited for embedded product development and volume manufacturing?
The STM32F405RGT6 includes a factory-programmed system bootloader that supports in-system firmware programming through supported communication interfaces, simplifying firmware updates during development and production. Combined with its high processing performance, rich peripheral set, embedded Flash and SRAM, and widely adopted LQFP64 package, the device is well suited for commercial embedded systems, industrial controllers, motor control, communication equipment, and other high-volume applications.
