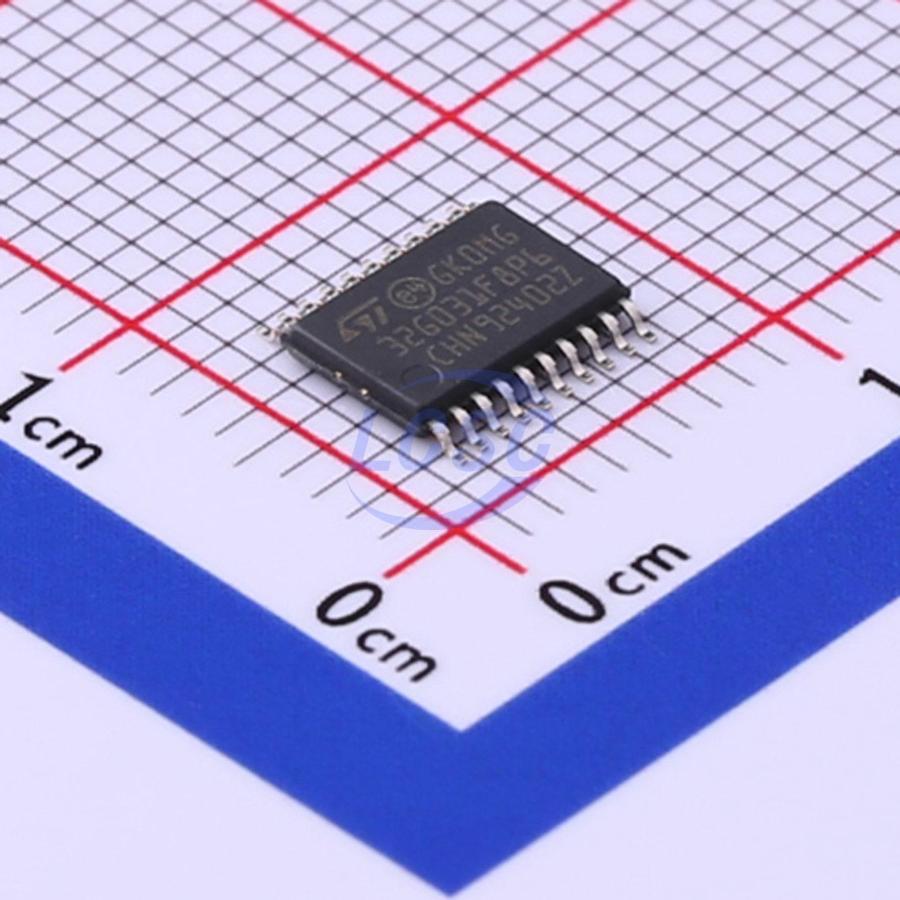

STM32G031F8P6

Key features

• Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 64 MHz, -40°C to 85°C/105°C/125°C operating temperature
• Memories: Up to 64 Kbytes of Flash memory with protection and securable area, 8 Kbytes of SRAM with HW parity check
• CRC calculation unit
• Reset and power management: Voltage range: 1.7 to 3.6V, Power-on/Power-down reset (POR/PDR), Programmable Brownout reset (BOR), Programmable voltage detector (PVD), Low-power modes: Sleep, Stop, Standby, Shutdown, VBAT supply for RTC and backup registers
• Clock management: 4 to 48 MHz crystal oscillator, 32 kHz crystal oscillator with calibration, Internal 16 MHz RC with PLL option (±1 %), Internal 32 kHz RC oscillator (±5 %)
• Up to 44 fast I/Os, All mappable on external interrupt vectors, Multiple 5 V-tolerant I/Os
• 5-channel DMA controller with flexible mapping
• 12-bit, 0.4 µs ADC (up to 16 ext. channels), Up to 16-bit with hardware oversampling, Conversion range: 0 to 3.6V
• 11 timers (one 128 MHz capable): 16-bit for advanced motor control, one 32-bit and four 16-bit general-purpose, two low-power 16-bit, two watchdogs, SysTick timer
• Calendar RTC with alarm and periodic wakeup from Stop/Standby/Shutdown
• Communication interfaces: Two I²C-bus interfaces supporting Fast mode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode, Two USARTs with master/slave synchronous SPI; one supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature, One low-power UART, Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframe, one multiplexed with I²S interface
• Development support: serial wire debug (SWD)
• 96-bit unique ID
• All packages ECOPACK2 compliant
