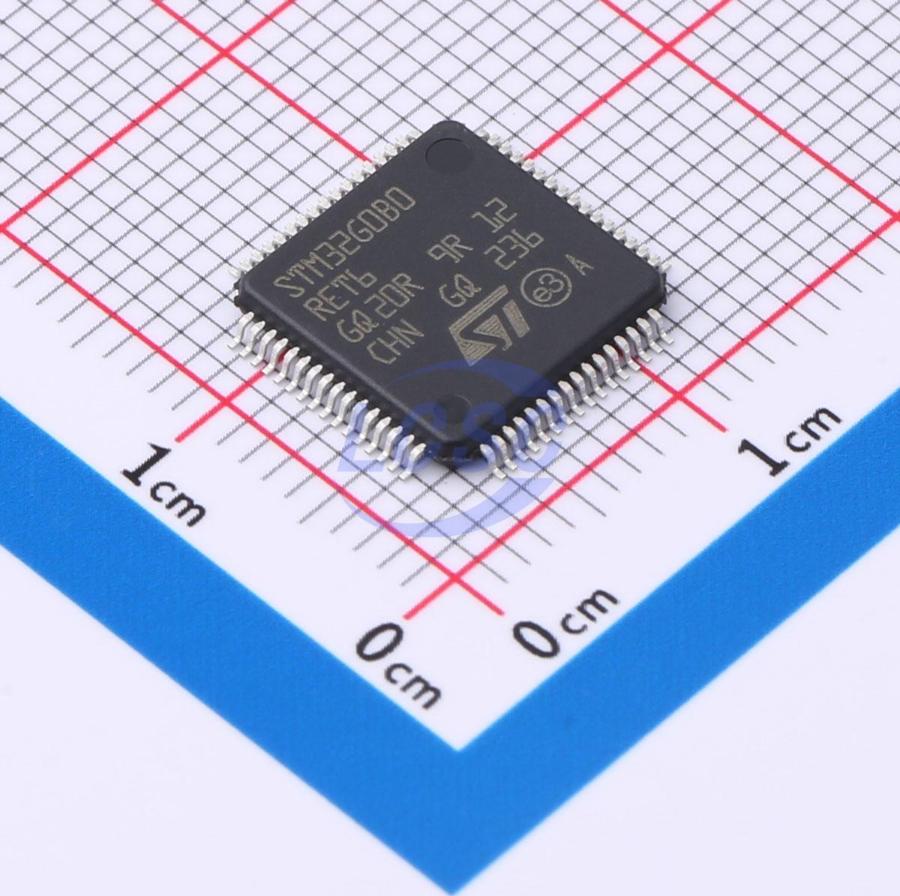

STM32G0B0RET6

ARM Cortex-M0+ 32 Bit 64MHz LQFP-64(10x10) Microcontrollers RoHS

LQFP-64(10x10)ROHS3 CompliantActive

Arm Cortex-M0+ 32-bit MCU, 512KB Flash, 144KB RAM, 6x USART, timers, ADC, comm. I/Fs, 2.0 - 3.6V

Manufacturer: ST
Manufacturer part #: STM32G0B0RET6
Store part #: C3230954
Package / case: LQFP-64(10x10)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,960 in stock

#C3230954

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹530.13	₹530.13
10+	₹467.07	₹4,670.70
30+	₹427.50	₹12,825.00
100+	₹374.22	₹37,422.00
500+	₹355.97	₹1,77,985.00
1,000+	₹347.91	₹3,47,910.00

Quantity (min 1)

1 × ₹530.13

₹530.13

excl. GST

₹625.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 160 per tray

STM32G0B0RET6

₹530.13 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 59
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 2V~3.6V
Program Storage Size: 512KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 64MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.913 g

Overview

This is a 32-bit MCU based on the Arm® Cortex®-M0+ core, featuring 512KB Flash, 144KB RAM, multiple peripherals, and an operating voltage range of 2.0V to 3.6V.

Key features

Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 64 MHz
-40°C to 85°C operating temperature
Memories – 512 Kbytes of Flash memory with protection, two banks, read-while-write support 144 Kbytes of SRAM (128 Kbytes with HW parity check)
CRC calculation unit
Reset and power management – Voltage range: 2.0 V to 3.6 V
Power-on/Power-down reset (POR/PDR)
Low-power modes: Sleep, Stop, Standby
VBAT supply for RTC and backup registers
Clock management
4 to 48 MHz crystal oscillator
32 kHz crystal oscillator with calibration
Internal 16 MHz RC with PLL option (±5 %)
Internal 32 kHz RC oscillator (±5 %)
Up to 93 fast I/Os All mappable on external interrupt vectors
Multiple 5 V-tolerant I/Os
12-channel DMA controller with flexible mapping
12-bit, 0.4 μs ADC (up to 16 ext. channels)
Up to 16-bit with hardware oversampling
Conversion range: 0 to 3.6V
12 timers: 16-bit for advanced motor control, six 16-bit general-purpose, two basic 16-bit, two watchdogs, SysTick timer
Calendar RTC with alarm and periodic wakeup from Stop/Standby
Communication interfaces
Three I²C-bus interfaces supporting Fastmode Plus (1 Mbit/s) with extra current sink, two supporting SMBus/PMBus and wakeup from Stop mode
Six USARTs with master/slave synchronous SPI; three supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature
Three SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframe, two multiplexed with I²S interface
USB 2.0 FS device and host controller
Development support: serial wire debug (SWD)
All packages ECOPACK 2 compliant
