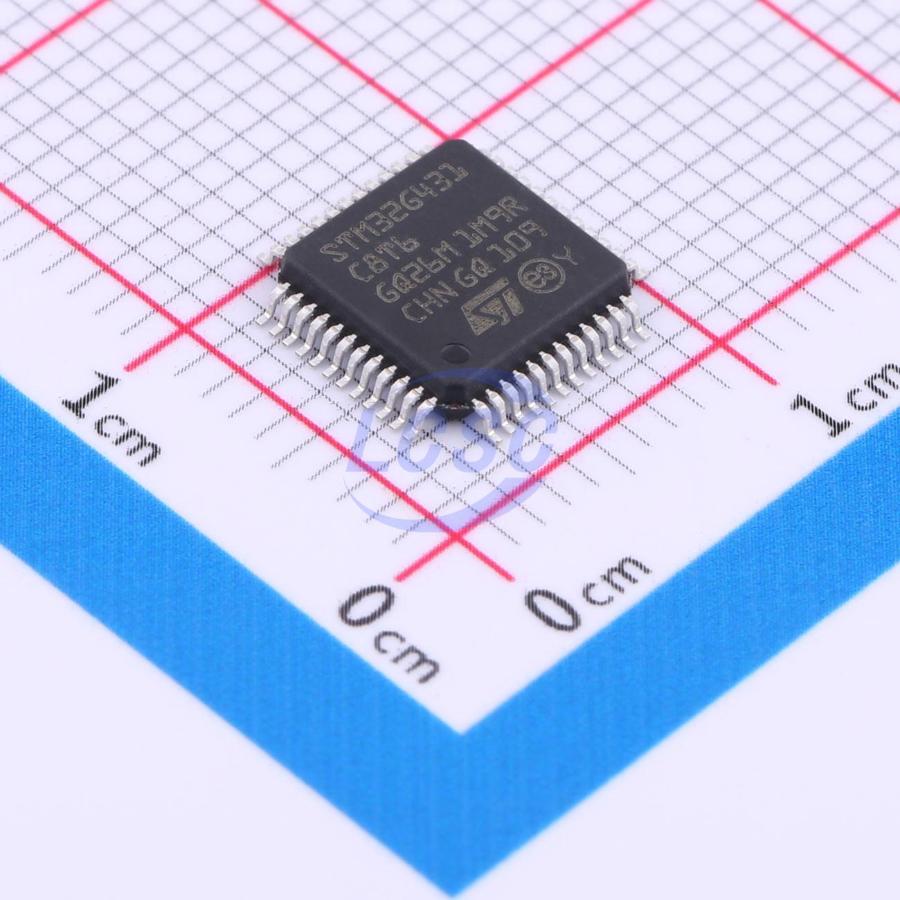

STM32G431C8T6

Arm Cortex-M4 32-bit MCU+FPU, 170 MHz / 213 DMIPS , up to 128 KB Flash, 32 KB SRAM, rich analog, math accelerator

Key features

• Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions
• Operating conditions: VDD, VDDA voltage range: 1.71 V to 3.6 V
• Mathematical hardware accelerators CORDIC for trigonometric functions acceleration FMAC: filter mathematical accelerator
• 128 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP
• 22 Kbytes of SRAM, with hardware parity check implemented on the first 16 Kbytes
• Routine booster: 10 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM)
• Power-on/power-down reset (POR/PDR/BOR)
• Programmable voltage detector (PVD)
• Low-power modes: sleep, stop, standby and shutdown
• VBAT supply for RTC and backup registers
• 4 to 48 MHz crystal oscillator
• 32 kHz oscillator with calibration
• Internal 16 MHz RC with PLL option (±1%)
• Internal 32 kHz RC oscillator (±5%)
• Up to 86 fast I/Os All mappable on external interrupt vectors
• Several I/Os with 5 V tolerant capability
• Interconnect matrix
• 12-channel DMA controller
• 2 x ADCs 0.25 μs (up to 23 channels). Resolution up to 16-bit with hardware oversampling, 0 to 3.6 V conversion range
• 4 x 12-bit DAC channels – 2 x buffered external channels 1 MSPS – 2 x unbuffered internal channels 15 MSPS
• 4 x ultra-fast rail-to-rail analog comparators
• 3 x operational amplifiers that can be used in PGA mode, all terminals accessible
• Internal voltage reference buffer (VREFBUF) supporting three output voltages (2.048 V, 2.5 V, 2.95 V)
• 14 timers:
• 1 x 32-bit timer and 2 x 16-bit timers with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
• 2 x 16-bit 8-channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop
• 1 x 16-bit timer with 2 x IC/OCs, one OCN/PWM, dead time generation and emergency stop
• 2 x 16-bit timers with IC/OC/OCN/PWM, dead time generation and emergency stop
• 2 x watchdog timers (independent, window)
• 1 x SysTick timer: 24-bit downcounter
• 2 x 16-bit basic timers
• 1 x low-power timer
• Calendar RTC with alarm, periodic wakeup from stop/standby
• Communication interfaces:
• 1 x FDCAN controller supporting flexible data rate
• 3 x I2C Fast mode plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from stop
• 4 x USART/UARTs (ISO 7816 interface, LIN, IrDA, modem control)
• 1 x LPUART
• 3 x SPIs, 4 to 16 programmable bit frames, 2 x with multiplexed half duplex I2S interface
• 1 x SAI (serial audio interface)
• USB 2.0 full-speed interface with LPM and BCD support
• IRTIM (infrared interface)
• USB Type-C / USB power delivery controller (UCPD)
• True random number generator (RNG)
• CRC calculation unit, 96-bit unique ID
• Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell
