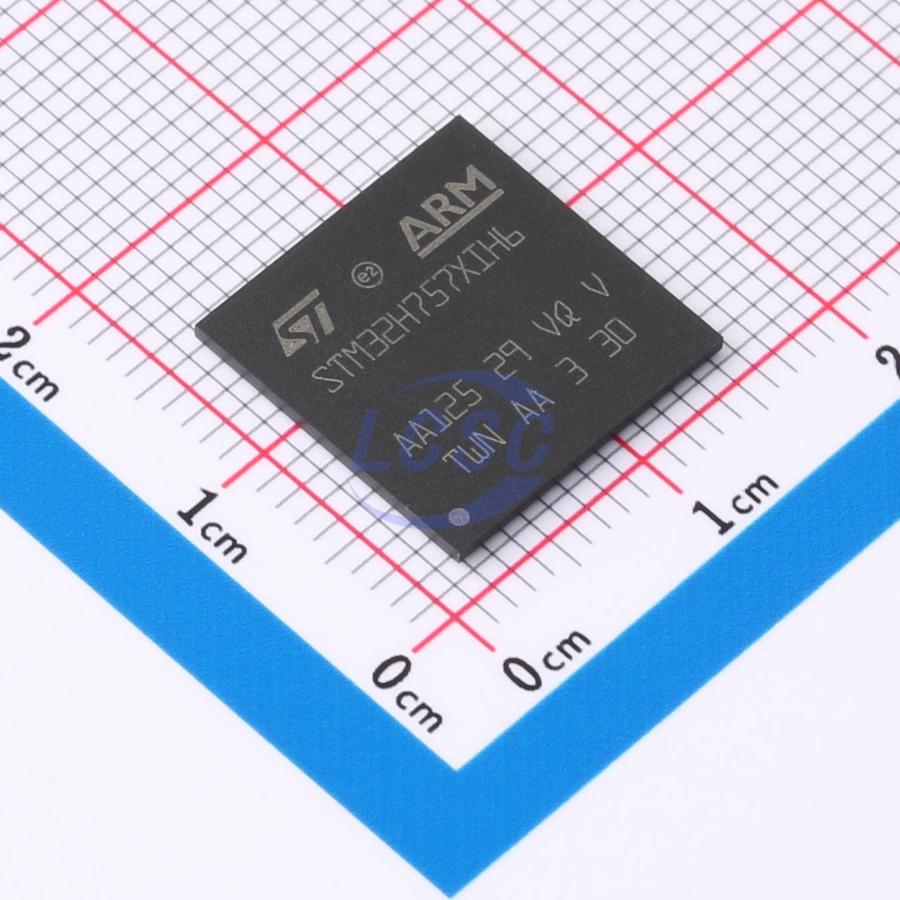

STM32H757XIH6

Dual-core 32-bit Arm® Cortex®-M7 (up to 480MHz) and -M4 microcontroller, 2MB Flash, 1MB RAM, 46 communication and analog interfaces, SMPS, DSI, cryptographic features.

Key features

• Dual core：
• 32-bit Arm Cortex-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• 32-bit Arm Cortex-M4 core with FPU, Adaptive real-time accelerator (ART Accelerator) for internal Flash memory and external memories, frequency up to 240 MHz, MPU, 300 DMIPS/1.25 DMIPS /MHz (Dhrystone 2.1), and DSP instructions
• Memories：
• 2 Mbytes of Flash memory with read-while-write support
• 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
• Dual mode Quad-SPI memory interface running up to 133 MHz
• Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memory clocked up to 125 MHz in Synchronous mode
• CRC calculation unit
• Security：
• ROP, PC-ROP, active tamper, secure firmware upgrade support, Secure access mode
• General-purpose input/outputs：
• Up to 168 I/O ports with interrupt capability
• Reset and power management：
• 3 separate power domains which can be independently clock-gated or switched off: D1: high-performance capabilities; D2: communication peripherals and timers; D3: reset/clock control/power management
• 1.62 to 3.6 V application supply and I/Os
• POR, PDR, PVD and BOR
• Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs
• Embedded regulator (LDO) to supply the digital circuitry
• High power-efficiency SMPS step-down converter regulator to directly supply VCORE and/or external circuitry
• Voltage scaling in Run and Stop mode (6 configurable ranges)
• Backup regulator (~0.9 V)
• Voltage reference for analog peripheral/VREF+
• 1.2 to 3.6 V BAT supply
• Low-power modes: Sleep, Stop, Standby and VBAT supporting battery charging
• Low-power consumption：
• VBAT battery operating mode with charging capability
• CPU and domain power state monitoring pins
• 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
• Clock management：
• Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
• External oscillators: 4 - 48 MHz HSE, 32.768 kHz LSE
• 3x PLLs (1 for the system clock, 2 for kernel clocks) with Fractional mode
• Interconnect matrix：
• 3 bus matrices (1 AXI and 2 AHB)
• Bridges (5x AHB2 - APB, 2x AXI2 - AHB)
• 4 DMA controllers to unload the CPU：
• 1x high-speed master direct memory access controller (MDMA) with linked list support
• 2x dual-port DMAs with FIFO
• 1x basic DMA with request router capabilities
• Up to 35 communication peripherals：
• 4x I2Cs FM+ interfaces (SMBus/PMBus)
• 4x USARTs/4x UARTs (ISO7816 interface, LIN, IrDA, up to 12.5 Mbit/s) and 1x LPUART
• 6x SPIs, 3 with muxed duplex I2S audio class accuracy via internal audio PLL or external clock, 1x 125 in LP domain (up to 150 MHz)
• 4x SAIs (serial audio interface)
• SPDIFRX interface
• SWPMI single-wire protocol master I/F
• MDIO Slave interface
• 2x SD/SDIO/MMC interfaces (up to 125 MHz)
• 2x CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT - CAN)
• 2x USB OTG interfaces (1FS, 1HS/FS) crystalless solution with LPM and BCD
• Ethernet MAC interface with DMA controller
• HDMI - CEC
• 8 - to 14 - bit camera interface (up to 80 MHz)
• 11 analog peripherals：
• 3x ADCs with 16 - bit max. resolution (up to 36 channels, up to 3.6 MSPS)
• 1x temperature sensor
• 2x 12 - bit D/A converters (1 MHz)
• 2x ultra - low - power comparators
• 2x operational amplifiers (7.3 MHz bandwidth)
• 1x digital filters for sigma delta modulator (DFSDM) with 8 channels/4 filters
• Graphics：
• LCD - TFT controller up to XGA resolution
• MIPI DSI host including an MIPI D - PHY to interface with low - pin count large displays
• Chrom - ART graphical hardware Accelerator (DMA2D) to reduce CPU load
• Hardware JPEG Codec
• Up to 22 timers and watchdogs：
• 1x high - resolution timer (2.1 ns max resolution)
• 2x32 - bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input (up to 240 MHz)
• 2x16 - bit advanced motor control timers (up to 240 MHz)
• 10x 16 - bit general - purpose timers (up to 240 MHz)
• 5x 16 - bit low - power timers (up to 240 MHz)
• 4x watchdogs (independent and window)
• 2x SysTick timers
• RTC with sub - second accuracy and hardware calendar
• Cryptographic acceleration：
• AES 128, 192, 256, TDES
• HASH (MD5, SHA - 1, SHA - 2), HMAC
• True random number generators
• Debug mode：
• SWD & JTAG interfaces
• 4 - Kbyte Embedded Trace Buffer
• 96 - bit unique ID
• All packages are ECOPACK2 compliant
