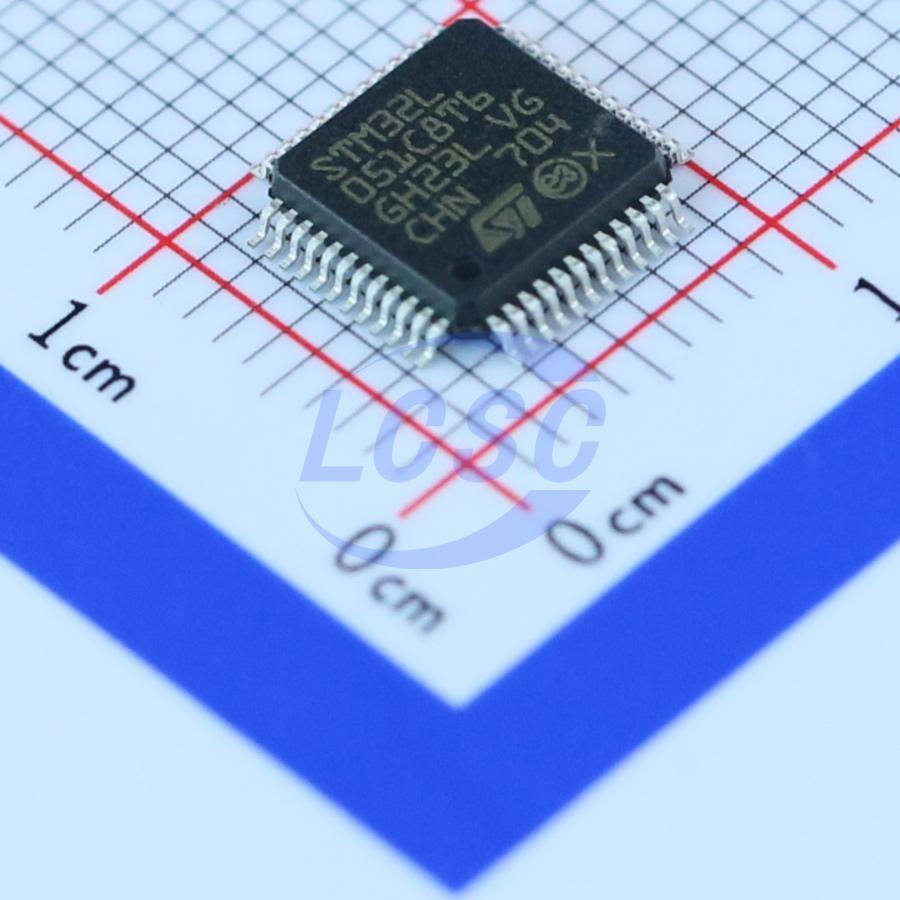

STM32L051C8T6

ARM Cortex-M0+ 32 Bit 32MHz LQFP-48(7x7) Microcontrollers RoHS

LQFP-48(7x7)ROHS3 CompliantActive

Access line ultra-low-power 32-bit MCU ARM-based Cortex-M0+, up to 64 KB Flash, 8 KB SRAM, 2 KB EEPROM, ADC

Manufacturer: ST
Manufacturer part #: STM32L051C8T6
Store part #: C110878
Package / case: LQFP-48(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,970 in stock

#C110878

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹227.23	₹227.23
10+	₹200.10	₹2,001.00
30+	₹180.79	₹5,423.70
250+	₹163.43	₹40,857.50
500+	₹155.40	₹77,700.00
1,000+	₹151.92	₹1,51,920.00

Quantity (min 1)

1 × ₹227.23

₹227.23

excl. GST

₹268.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

STM32L051C8T6

₹227.23 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 37
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.65V~3.6V
Program Memory Type: FLASH
EEPROM: 2KB
Program Storage Size: 64KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 32MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.85 g

Overview

Key features

Ultra-low-power platform
1.65 V to 3.6 V power supply
-40 to 125 ℃ temperature range
0.27 μA Standby mode (2 wakeup pins)
0.4 μA Stop mode (16 wakeup lines)
0.8 μA Stop mode + RTC + 8 KB RAM retention
88 μA/MHz in Run mode
3.5 μs wakeup time (from RAM)
5 μs wakeup time (from Flash memory)
Core: ARM 32-bit Cortex-M0+ with MPU
From 32 kHz up to 32 MHz max. - 0.95 DMIPS/MHz
Reset and supply management
Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)
Clock sources
1 to 25 MHz crystal oscillator
32 kHz oscillator for RTC with calibration
High speed internal 16 MHz factory-trimmed RC (+/-1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
PLL for CPU clock
Pre-programmed bootloader - USART, SPI supported
Development support - Serial wire debug supported
Up to 51 fast I/Os (45 I/Os 5V tolerant)
Memories
Up to 64 KB Flash memory with ECC
8 KB RAM
2 KB of data EEPROM with ECC
20-byte backup register
Sector protection against R/W operation
Rich Analog peripherals
12-bit ADC 1.14 Msps up to 16 channels (down to 1.65 V)
2x ultra-low-power comparators (window mode and wake up capability, down to 1.65 V)
7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers
7x peripheral communication interfaces
2x USART (ISO 7816, IrDA), 1x UART (low power)
Up to 4x SPI 16 Mbits/s
2x I2C (SMBus/PMBus)
9x timers: 1x 16-bit with up to 4 channels, 2x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC, 1x 16-bit basic, and 2x watchdogs (independent/window)
CRC calculation unit, 96-bit unique ID
All packages are ECOPACK2
