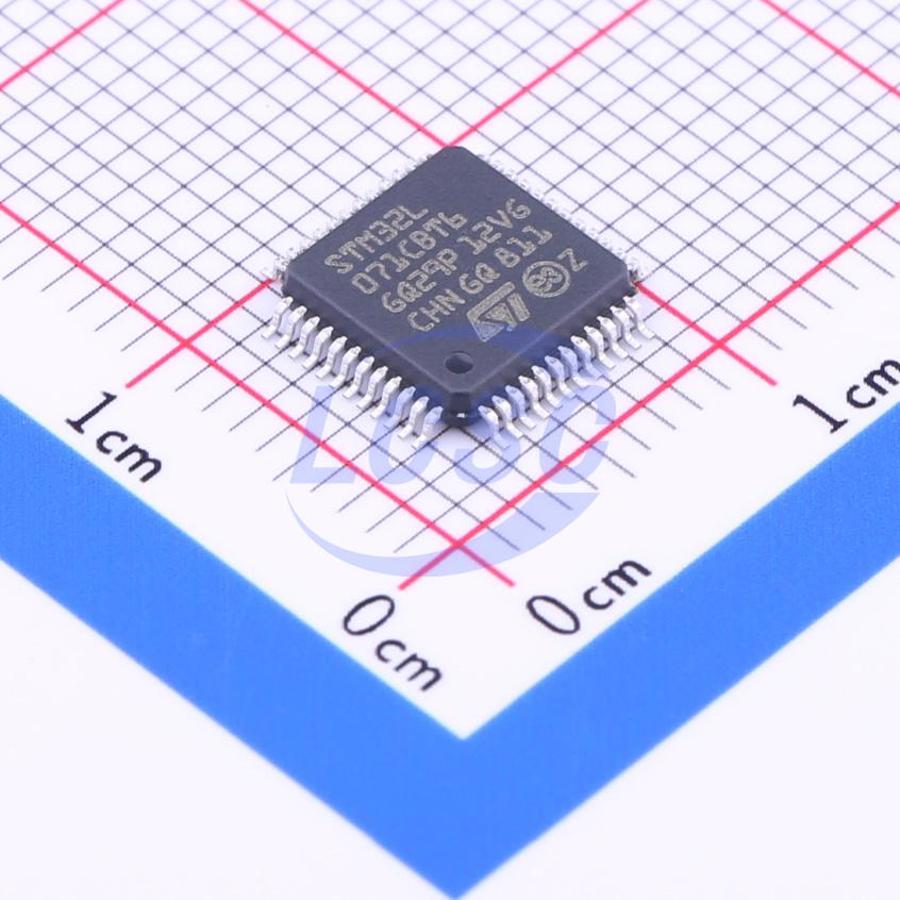

STM32L071CBT6

Key features

• Ultra-low-power platform
• 1.65 V to 3.6 V power supply
• -40 to 125 °C temperature range
• 0.29 μA Standby mode (3 wakeup pins)
• 0.43 μA Stop mode (16 wakeup lines)
• 0.86 μA Stop mode + RTC + 20 KB RAM retention
• Down to 93 μA/MHz in Run mode
• 5 μs wakeup time (from Flash memory)
• 41 μA 12-bit ADC conversion at 10 ksps
• Core: Arm 32-bit Cortex-M0+ with MPU
• From 32 kHz up to 32 MHz max.
• 0.95 DMIPS/MHz
• Up to 192 KB Flash memory with ECC (2 banks with read-while-write capability)
• 20 KB RAM
• 6 KB of data EEPROM with ECC
• 20-byte backup register
• Sector protection against R/W operation
• Up to 84 fast I/O (78 I/Os 5V tolerant)
• Reset and supply management: Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds, Ultra-low-power POR/PDR, Programmable voltage detector (PVD)
• Clock sources: 1 to 25 MHz crystal oscillator, 32 kHz oscillator for RTC with calibration, High speed internal 16 MHz factory-trimmed RC (+/-1%), Internal low-power 37 kHz RC, Internal multispeed low-power 65 kHz to 4.2 MHz RC, PLL for CPU clock
• Pre-programmed bootloader: USART, I2C, SPI supported
• Development support: Serial wire debug supported
• Rich Analog peripherals: 12-bit ADC 1.14 Msps up to 16 channels (down to 1.65 V), 2x ultra-low-power comparators (window mode and wake up capability, down to 1.65 V), 7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers, Up to 10x peripheral communication interfaces: 4x USART (2 with ISO 7816, IrDA), 1x UART (low power), Up to 6x SPI 16 Mbits/s, 3x I2C (2 with SMBus/PMBus), 11x timers: 2x 16-bit with up to 4 channels, 2x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC, 2x 16-bit basic, and 2x watchdogs (independent/window), CRC calculation unit, 96-bit unique ID
• All packages are ECOPACK2
