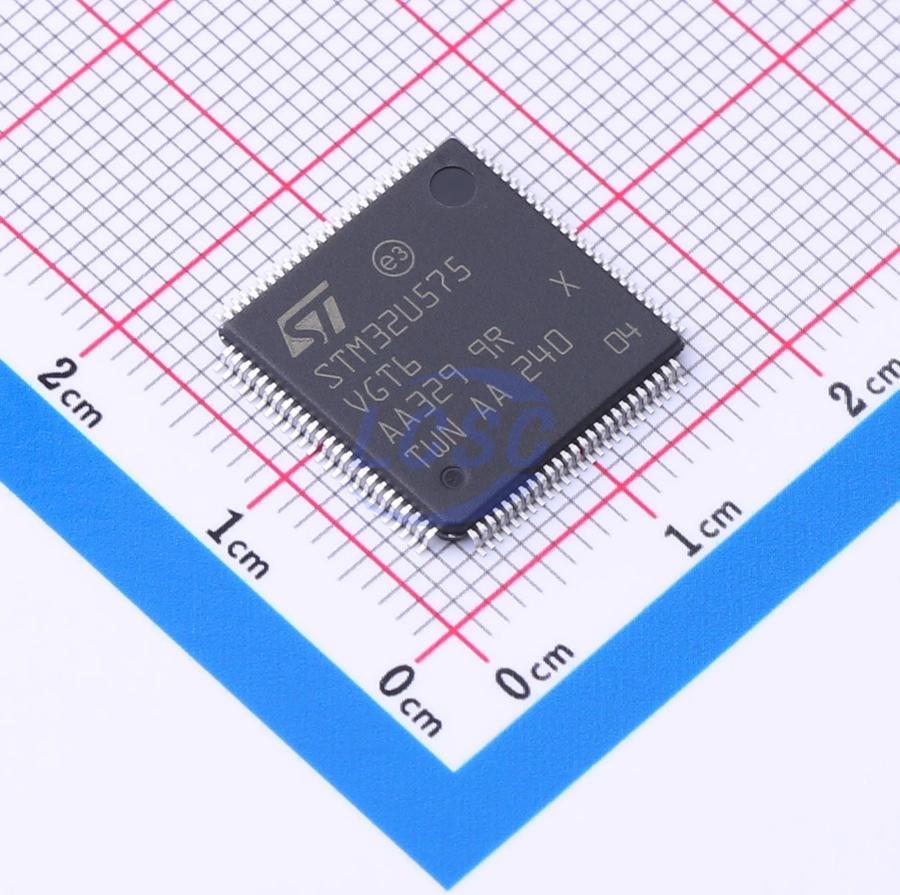

STM32U575VGT6

This product is a 32-bit microcontroller based on the Arm Cortex-M33 core, integrating TrustZone security technology and a floating-point unit, delivering up to 240 DMIPS of performance. It provides up to 2 MB of Flash memory and 786 KB of SRAM. The device employs advanced low-power technology, supports a wide supply voltage range of 1.71 V to 3.6 V, and operates over a temperature range of -40 °C to +125 °C. It includes multiple low-power modes such as Stop mode and Standby mode, and supports a low-power background autonomous mode that allows peripherals to operate autonomously via DMA in deep sleep mode. The integrated power management unit incorporates an LDO and a switching buck converter with dynamic voltage scaling support. Security features include hardware isolation based on Arm TrustZone, protectable secure I/Os, memories and peripherals, as well as secure boot, secure firmware installation and upgrade support. It also offers a true random number generator, device ID, and active tamper detection. Rich connectivity peripherals include a USB Type-C/PD controller, USB OTG, multiple USART, SPI, I²C, CAN FD, SAI, and SDMMC interfaces. Analog peripherals include high-speed ADC, DAC, operational amplifiers, and comparators. Additionally, it features a graphics accelerator, math co-processor, capacitive touch-sensing channels, and comprehensive debug support.

Key features

• Includes ST state-of-the-art patented technology
• Ultra-low-power with FlexPowerControl
• 1.71 V to 3.6 V power supply
• -40 °C to +85/125 °C temperature range
• Low-power background autonomous mode (LPBAM): autonomous peripherals with DMA, functional down to Stop 2 mode
• VBAT mode: supply for RTC, 32x32-bit backup registers and 2-Kbyte backup SRAM
• 160 nA Shutdown mode (24 wake-up pins)
• 210 nA Standby mode (24 wake-up pins)
• 530 nA Standby mode with RTC
• 1.9 μA Stop 3 mode with 16-Kbyte SRAM
• 4.3 μA Stop 3 mode with full SRAM
• 4.0 μA Stop 2 mode with 16-Kbyte SRAM
• 8.95 μA Stop 2 mode with full SRAM
• 19.5 μA/MHz Run mode @ 3.3 V
• Arm 32-bit Cortex-M33 CPU with TrustZone, MPU, DSP, and FPU
• 8-Kbyte instruction cache allowing 0-wait-state execution from flash and external memories: up to 160 MHz, 240 DMIPS
• 4-Kbyte data cache for external memories
• Embedded regulator (LDO) and SMPS step-down converter supporting switch on-the-fly and voltage scaling
• 1.5 DMIPS/MHz (Drystone 2.1)
• 651 CoreMark (4.07 CoreMark/MHz)
• 450 ULPMark-CP
• 109 ULPMark-PP
• 51.5 ULPMark-CM
• 133000 SecureMark-TLS
• 2-Mbyte flash memory with ECC, 2 banks read-while-write, including 512 Kbytes with 100 kcycles
• 786-Kbyte SRAM with ECC OFF or 722-Kbyte SRAM including up to 322-Kbyte SRAM with ECC ON
• External memory interface supporting SRAM, PSRAM, NOR, NAND, and FRAM memories
• 2 Octo-SPI memory interfaces
• Arm TrustZone and securable I/Os, memories, and peripherals
• Flexible life cycle scheme with RDP and password protected debug
• Root of trust thanks to unique boot entry and secure hide protection area (HDP)
• Secure firmware installation (SFI) thanks to embedded root secure services (RSS)
• Secure firmware upgrade support with TF-M
• HASH hardware accelerator
• True random number generator, NIST SP800-90B compliant
• 96-bit unique ID
• 512-byte OTP (one-time programmable)
• Active tampers
• 4 to 50 MHz crystal oscillator
• 32 kHz crystal oscillator for RTC (LSE)
• Internal 16 MHz factory-trimmed RC (±1%)
• Internal low-power 32 kHz RC (±5%)
• 2 internal multispeed 100 kHz to 48 MHz oscillators, including one autotrimmed by LSE (better than ±0.25% accuracy)
• Internal 48 MHz with clock recovery
• 3 PLLs for system clock, USB, audio, ADC
• Up to 136 fast I/Os with interrupt capability most 5V-tolerant and up to 14 I/Os with independent supply down to 1.08 V
• Up to 17 timers and 2 watchdogs
• 2 16-bit advanced motor-control, 4 32-bit, 5 16-bit, 4 low-power 16-bit (available in Stop mode), 2 SysTick timers and 2 watchdogs
• RTC with hardware calendar and calibration
• Up to 22 communication peripherals
• 1 USB Type-C, /USB power delivery controller
• 1 USB OTG 2.0 full-speed controller
• 2 SAIs (serial audio interface)
• 4 I²C FM+(1 Mbit/s), SMBus/PMBus
• 6 U(S)ART (SPI, ISO 7816, LIN, IrDA, modem)
• 3 SPI with OCTOSPI with USART
• 1 CAN FD controller
• 2 SDMMC interfaces
• 1 multifunction digital filter (6 filters) +1 audio digital filter with sound-activity detection
• Parallel synchronous slave interface
• 16- and 4-channel DMA controllers, functional in Stop mode
• Chrom-ART Accelerator (DMA2D) for enhanced graphic content creation
• 1 digital camera interface
• CORDIC for trigonometric functions acceleration
• Filter mathematical accelerator (FMAC)
• Up to 22 capacitive sensing channels
• Support touch key, linear, and rotary touch sensors
• 14-bit ADC 2.5-Msps with hardware oversampling
• 12-bit ADC 2.5-Msps, with hardware oversampling, autonomous in Stop 2 mode
• 2 12-bit DAC, low-power sample and hold
• 2 operational amplifiers with built-in PGA
• 2 ultra-low-power comparators
• CRC calculation unit
• Development support: serial-wire debug (SWD), JTAG, Embedded Trace Macrocell (ETM)
• ECOPACK2 compliant packages
