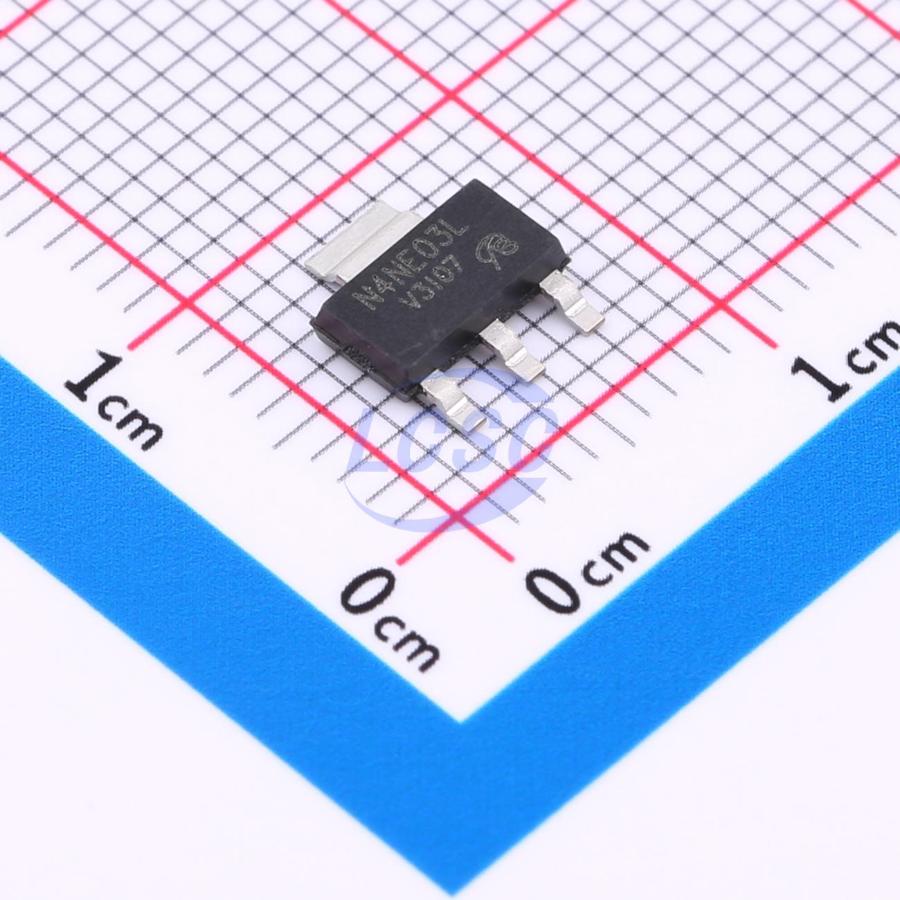

STN4NE03LT4-VB
30V 7A 4W 54mΩ@10V 1 N-channel N-Channel SOT-223-3 Single FETs, MOSFETs
SOT-223-3RoHSActive
MOSFET N-CH 30V 7A SOT-223-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STN4NE03LT4-VB
- Store part #
- C18795010
- Package / case
- SOT-223-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C18795010
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.14 | ₹225.70 |
| 50+ | ₹36.37 | ₹1,818.50 |
| 150+ | ₹32.61 | ₹4,891.50 |
| 500+ | ₹27.92 | ₹13,960.00 |
| 2,500+ | ₹23.02 | ₹57,550.00 |
| 5,000+ | ₹21.76 | ₹1,08,800.00 |
5 × ₹45.14
₹225.70
excl. GST
₹266.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STN4NE03LT4-VB
₹225.70 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 67pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 295pF
- Pd - Power Dissipation
- 4W
- RDS(on)
- 54mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMT29EN-VB#C879193VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 5 | ₹50.67 · 5 in stock | View |
 | BSP100-VB#C19188200VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 10 | ₹50.31 · 10 in stock | View |
 | IRFL1006TRPBF-VB#C20626350VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 35 | ₹41.57 · 35 in stock | View |
 | P1503BLH-VB#C20754943VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 15 | ₹41.57 · 15 in stock | View |
 | DMN3032LE-VB#C29778957VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 15 | ₹39.93 · 15 in stock | View |
