VBsemi ElecDatasheet (PDF)

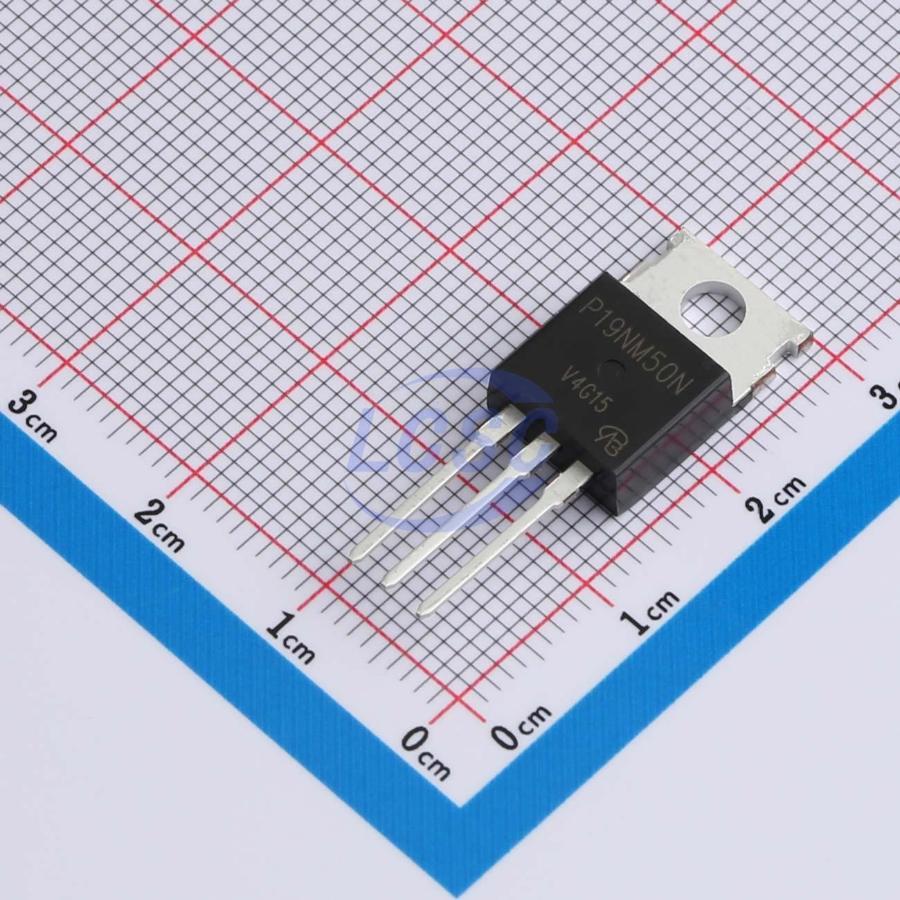

STP19NM50N-VB
N-Channel 650V 20A 208W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 20A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP19NM50N-VB
- Store part #
- C29779361
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C29779361
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹446.99 | ₹446.99 |
| 10+ | ₹391.58 | ₹3,915.80 |
| 50+ | ₹292.26 | ₹14,613.00 |
| 100+ | ₹256.64 | ₹25,664.00 |
| 500+ | ₹240.55 | ₹1,20,275.00 |
| 1,000+ | ₹233.60 | ₹2,33,600.00 |
1 × ₹446.99
₹446.99
excl. GST
₹527.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP19NM50N-VB
₹446.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 1.054nF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- Telecommunications - Server and telecom power supplies
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Consumer and computing - ATX power supplies
- Industrial - Welding - Battery chargers
- Renewable energy - Solar (PV inverters)
- Switch mode power supplies (SMPS)
Key features
- Reduced trr, Qrr, and IRRM
- Low figure-of-merit (FOM) R(on)×Qg
- Low input capacitance (Ciss)
- Low switching losses due to reduced Qrr
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDP19N40-VB#C20755719VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹364.66 · 10 in stock | View |
 | IPP50R199CP-VB#C45662395VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹416.89 · 2 in stock | View |
 | IPP60R190E6-VB#C45662397VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹506.14 · 5 in stock | View |
 | IPP65R110CFD7XKSA1-VB#C45662403VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹506.14 · 5 in stock | View |
 | IPP65R115CFD7AAKSA1-VB#C45662404VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹506.14 · 5 in stock | View |
