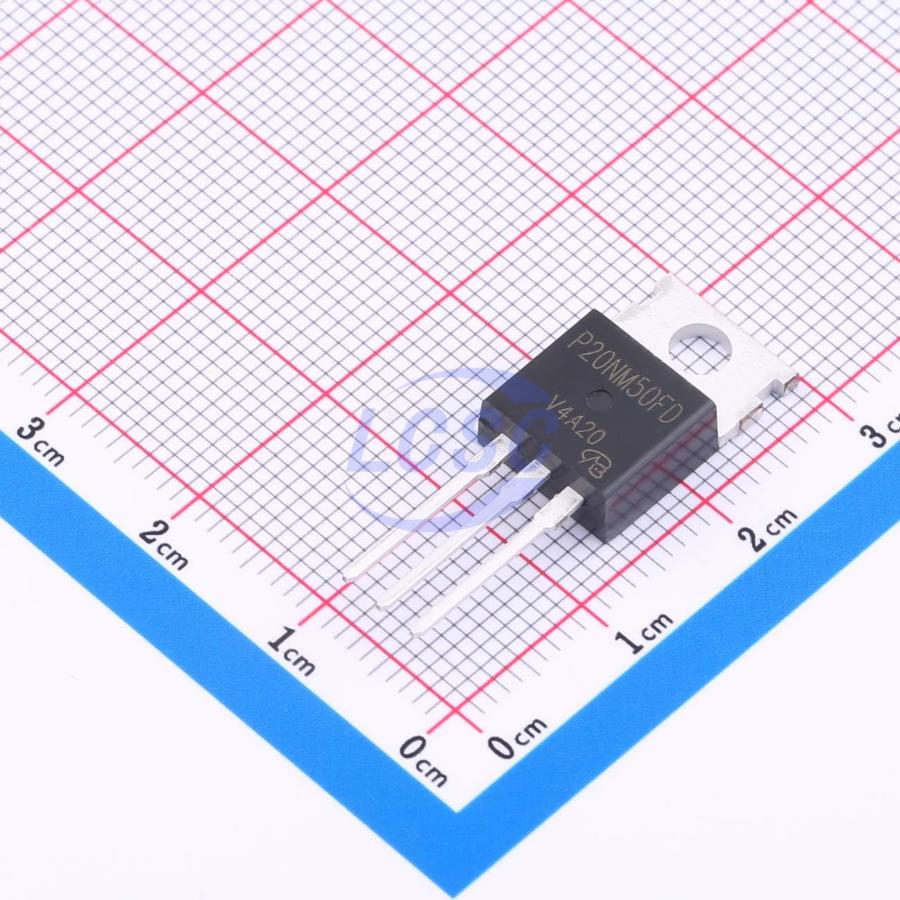

STP20NM50FD-VB
N-Channel 650V 20A 208W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 20A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP20NM50FD-VB
- Store part #
- C20626366
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C20626366
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹388.37 | ₹388.37 |
| 10+ | ₹333.25 | ₹3,332.50 |
| 50+ | ₹298.81 | ₹14,940.50 |
| 100+ | ₹263.71 | ₹26,371.00 |
| 500+ | ₹247.78 | ₹1,23,890.00 |
| 1,000+ | ₹240.91 | ₹2,40,910.00 |
1 × ₹388.37
₹388.37
excl. GST
₹458.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP20NM50FD-VB
₹388.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6 g
