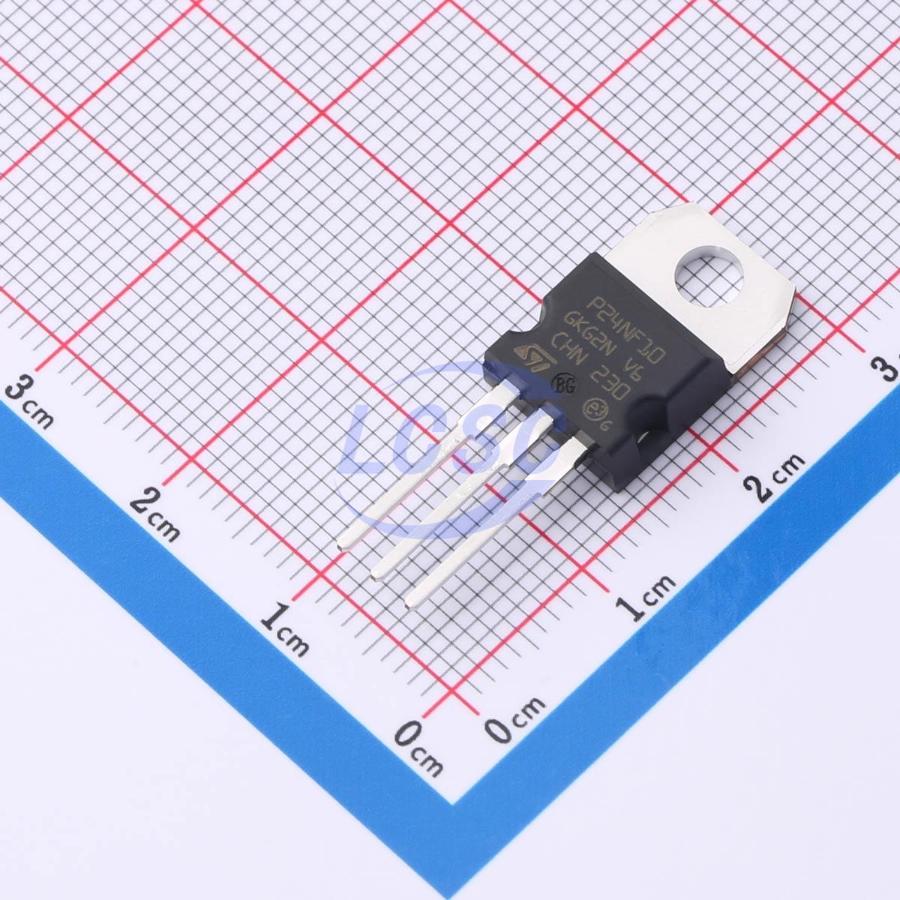

STP24NF10
N-Channel 100V 26A 85W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 26A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP24NF10
- Store part #
- C2844919
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C2844919
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.59 | ₹165.59 |
| 10+ | ₹138.43 | ₹1,384.30 |
| 50+ | ₹118.87 | ₹5,943.50 |
| 100+ | ₹101.92 | ₹10,192.00 |
| 500+ | ₹94.53 | ₹47,265.00 |
| 1,000+ | ₹91.05 | ₹91,050.00 |
1 × ₹165.59
₹165.59
excl. GST
₹195.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP24NF10
₹165.59 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 125pF
- Ciss-Input Capacitance
- 870pF
- Pd - Power Dissipation
- 85W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 26A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
