VBsemi ElecDatasheet (PDF)

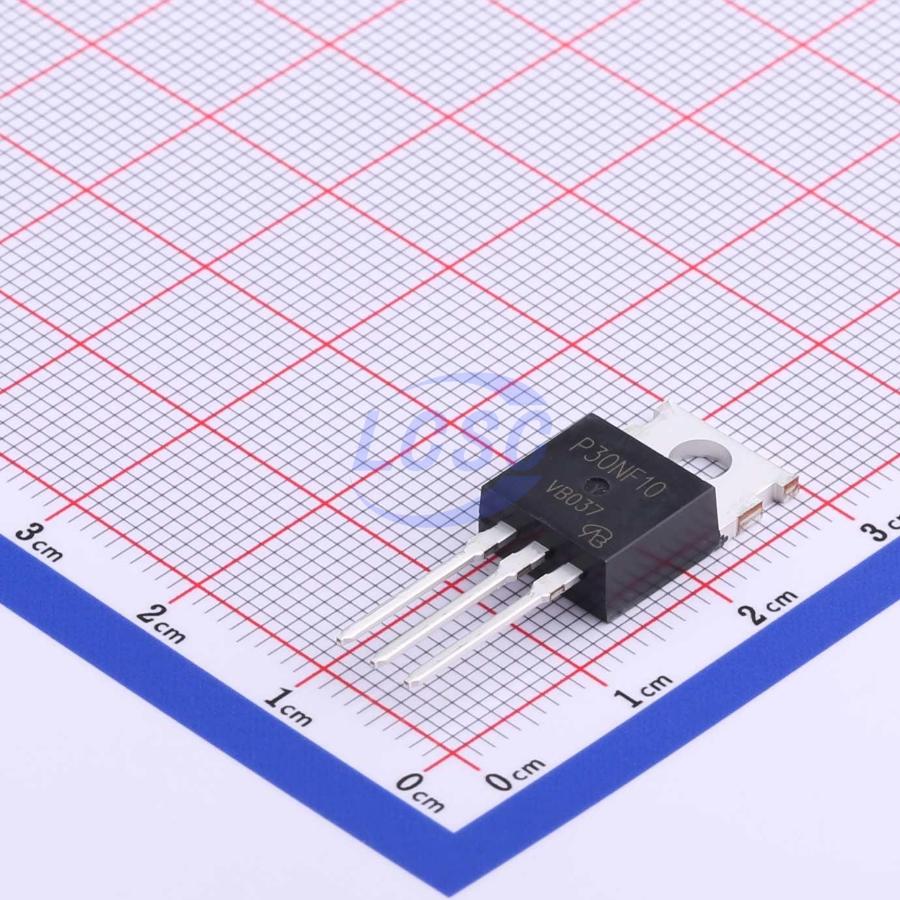

STP30NF10-VB
N-Channel 100V 45A 127W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 45A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP30NF10-VB
- Store part #
- C878789
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C878789
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.02 | ₹95.02 |
| 10+ | ₹77.25 | ₹772.50 |
| 50+ | ₹62.68 | ₹3,134.00 |
| 100+ | ₹53.90 | ₹5,390.00 |
| 500+ | ₹48.51 | ₹24,255.00 |
| 1,000+ | ₹45.91 | ₹45,910.00 |
1 × ₹95.02
₹95.02
excl. GST
₹112.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP30NF10-VB
₹95.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 270pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.73 g
Overview
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN015-100P-VB#C19188140VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹123.86 · 20 in stock | View |
 | 2SK3480-Z-VB#C19626781VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 48 | ₹128.56 · 48 in stock | View |
 | BUK555-100A-VB#C19711232VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹121.48 · 10 in stock | View |
 | 2SK1429-VB#C19711258VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹96.00 · 5 in stock | View |
 | FQP44N10F-VB#C19711298VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 40 | ₹116.91 · 40 in stock | View |
