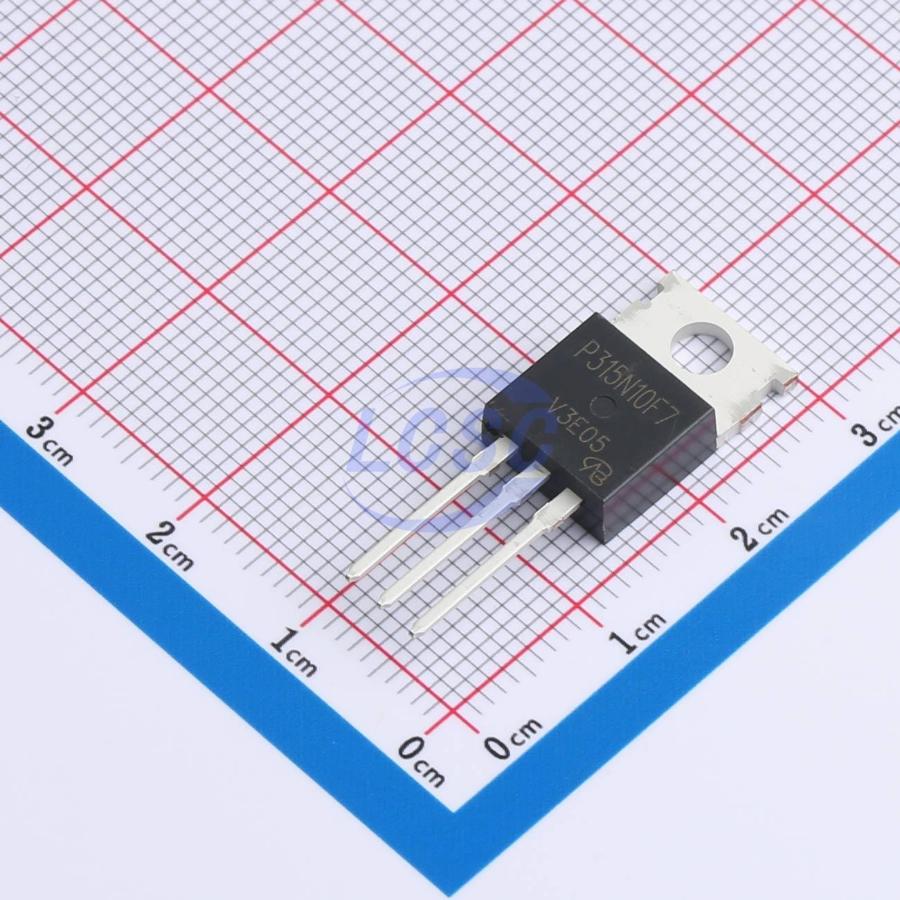

STP315N10F7-VB
N-Channel 100V 180A 250W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 100V 180A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP315N10F7-VB
- Store part #
- C7568925
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568925
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹332.64 | ₹332.64 |
| 10+ | ₹293.89 | ₹2,938.90 |
| 50+ | ₹200.94 | ₹10,047.00 |
| 100+ | ₹176.12 | ₹17,612.00 |
| 500+ | ₹165.02 | ₹82,510.00 |
| 1,000+ | ₹160.02 | ₹1,60,020.00 |
1 × ₹332.64
₹332.64
excl. GST
₹392.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP315N10F7-VB
₹332.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 7.23nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 385pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 125nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.9 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance package
- AEC-Q101 qualified
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFB4110PBF-VB#C7568843VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 151 | ₹252.90 · 151 in stock | View |
 | IRLB4030PBF-VB#C19626843VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹256.69 · 6 in stock | View |
 | SM1A50NHF-VB#C20755259VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹252.90 · 10 in stock | View |
 | IPP120N08S4-03-VB#C54177261VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹369.43 · 5 in stock | View |
 | SUP60020E-GE3-VB#C54177282VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹369.43 · 5 in stock | View |
