VBsemi ElecDatasheet (PDF)

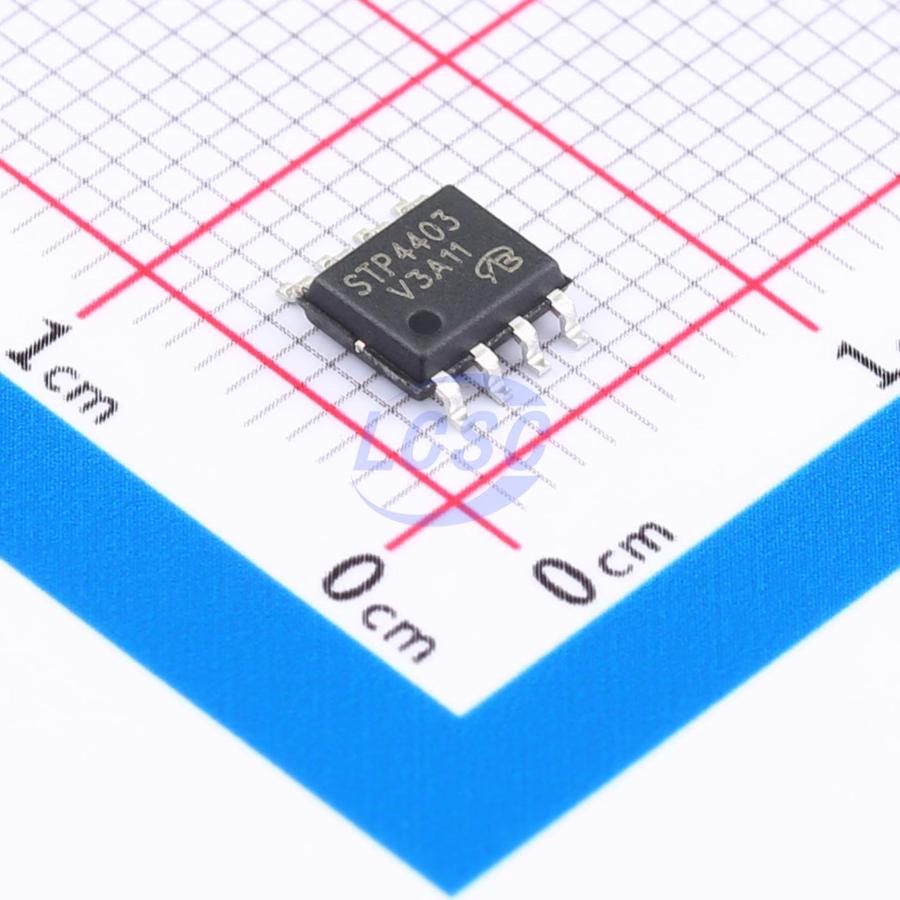

STP4403-VB
P-Channel 20V 13A 19W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 20V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP4403-VB
- Store part #
- C5355683
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5355683
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.51 | ₹242.55 |
| 50+ | ₹38.35 | ₹1,917.50 |
| 150+ | ₹34.00 | ₹5,100.00 |
| 500+ | ₹28.56 | ₹14,280.00 |
| 2,500+ | ₹26.14 | ₹65,350.00 |
| 4,000+ | ₹24.69 | ₹98,760.00 |
5 × ₹48.51
₹242.55
excl. GST
₹286.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
STP4403-VB
₹242.55 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 13A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 15mΩ@4.5V;21mΩ@2.5V;40mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 50nC@8V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
This dual N-channel MOSFET utilizes advanced trench technology and design to achieve excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Portable devices - Load switch - Battery switch - Charger switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS9433A-NL-VB#C20755498VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹49.27 · 50 in stock | View |
 | SI9424DY-T1-E3-VB#C558274VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 35 | ₹51.44 · 35 in stock | View |
 | CEM2163-VB#C693258VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹49.27 · 50 in stock | View |
 | SDM9433-VB#C725150VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 60 | ₹54.18 · 60 in stock | View |
 | SI9433BDY-T1-E3-VB#C7463672VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 90 | ₹60.94 · 90 in stock | View |
