STDatasheet (PDF)

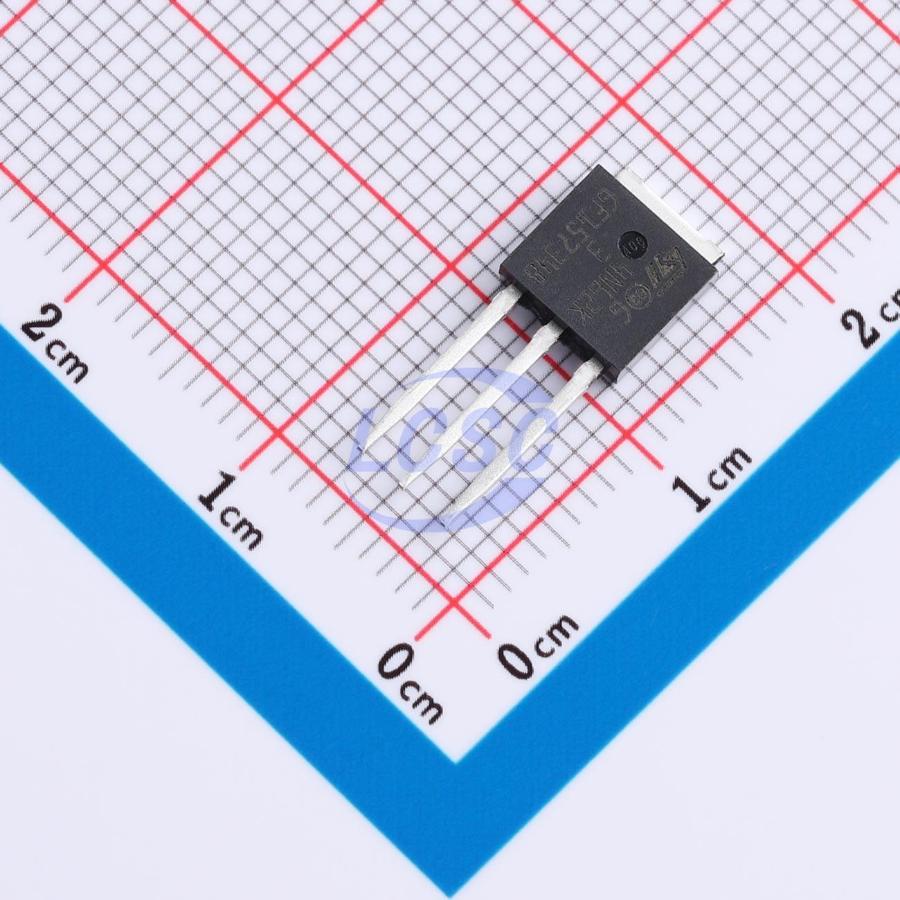

STU4N62K3
70W 620V 3.8A 2Ω@10V 1 N-channel N-Channel TO-251-3 Single FETs, MOSFETs RoHS
TO-251-3ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STU4N62K3
- Store part #
- C2970611
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C2970611
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹325.42 | ₹325.42 |
| 10+ | ₹320.48 | ₹3,204.80 |
| 30+ | ₹317.47 | ₹9,524.10 |
| 100+ | ₹314.25 | ₹31,425.00 |
1 × ₹325.42
₹325.42
excl. GST
₹384.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STU4N62K3
₹325.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 42pF
- Ciss-Input Capacitance
- 550pF
- Pd - Power Dissipation
- 70W
- Drain to Source Voltage
- 620V
- Current - Continuous Drain(Id)
- 3.8A
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.144 g
Overview
These SuperMESH 3™ power MOSFETs are the result of improvements to STMicroelectronics' SuperMESH 3™ technology, combined with a newly optimized vertical structure. These devices feature extremely low on-resistance, excellent dynamic performance, and high avalanche capability, making them suitable for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Extremely high dv/dt capability
- Minimized gate charge
- Ultra-low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE65T540I#C181927NCE · TO-251 | NCE | TO-251 | 324 | ₹84.78 · 324 in stock | View |
 | STD4NK60Z-1#C2844909ST · IPAK | ST | IPAK | 18 | ₹157.34 · 18 in stock | View |
 | LSU05N65A#C3020445CRMICRO · TO-251 | CRMICRO | TO-251 | 20 | ₹39.58 · 20 in stock | View |
 | D4NK60Z-VB TO251#C29779091VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹70.16 · 20 in stock | View |
 | STD3NK50Z-1-VB#C29779480VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 15 | ₹70.16 · 15 in stock | View |
