VBsemi ElecDatasheet (PDF)

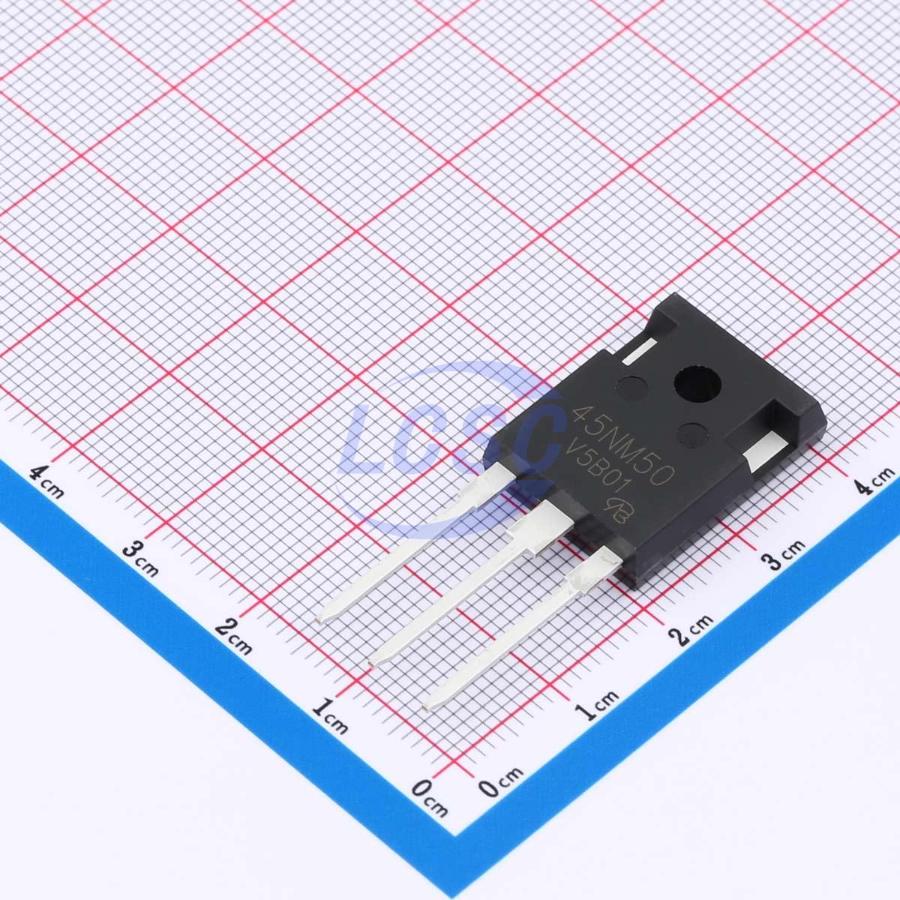

STW45NM50-VB
N-Channel 500V 40A 530W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 500V 40A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STW45NM50-VB
- Store part #
- C46527872
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C46527872
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹439.82 | ₹439.82 |
| 10+ | ₹375.06 | ₹3,750.60 |
| 30+ | ₹334.43 | ₹10,032.90 |
| 90+ | ₹292.93 | ₹26,363.70 |
| 600+ | ₹274.23 | ₹1,64,538.00 |
| 900+ | ₹266.20 | ₹2,39,580.00 |
1 × ₹439.82
₹439.82
excl. GST
₹518.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW45NM50-VB
₹439.82 for 1 + GST
Specifications
- Drain to Source Voltage
- 500V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 960pF
- Ciss-Input Capacitance
- 8.31nF
- Pd - Power Dissipation
- 530W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 350nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.38 g
