MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VISHAYDatasheet (PDF)

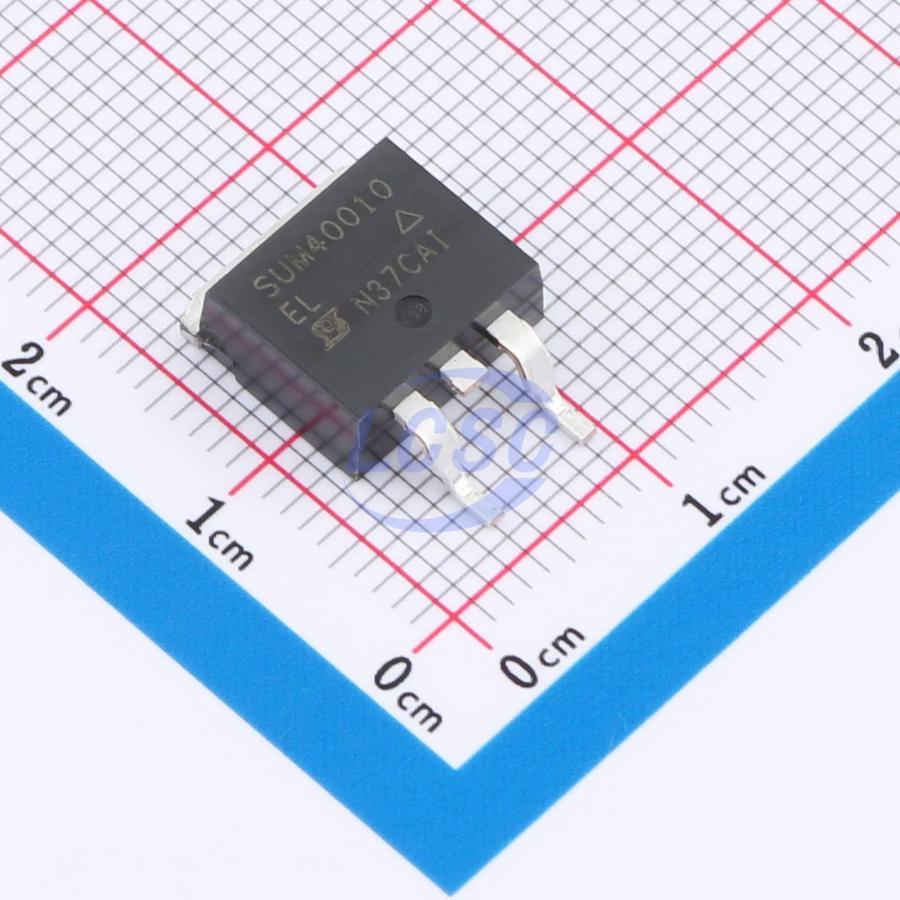

SUM40010EL-GE3
N-Channel 40V 120A 375W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 40V 120A D2PAK(TO-263)
- Manufacturer
- VISHAY
- Manufacturer part #
- SUM40010EL-GE3
- Store part #
- C7325092
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7325092
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹625.47 | ₹625.47 |
| 10+ | ₹616.66 | ₹6,166.60 |
| 30+ | ₹610.86 | ₹18,325.80 |
| 100+ | ₹604.84 | ₹60,484.00 |
1 × ₹625.47
₹625.47
excl. GST
₹738.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
SUM40010EL-GE3
₹625.47 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 7.41nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 11.155nF
- Pd - Power Dissipation
- 375W
- RDS(on)
- 1.9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Power supply
- Secondary synchronous rectification
- DC/DC converter
- Power tools
- Motor drive switch
- DC/AC inverter
- Battery management
Key features
- TrenchFET power MOSFET
- Maximum 175 °C junction temperature RoHS
- Qgd/Qgs ratio < 0.5 COAMPLAN
- Operable with logic-level gate drive FREE
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD19506KTT#C2870732TI · TO-263-2 | TI | TO-263-2 | 46 | ₹606.05 · 46 in stock | View |
 | IRF3805S-VB#C19190276VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹262.64 · 3 in stock | View |
 | BUK762R4-60E-VB#C19626811VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹205.86 · 1 in stock | View |
 | IPB019N06L3G-VB#C19626830VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹214.27 · 10 in stock | View |
 | IRFS7534TRLPBF-VB#C22395819VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹205.86 · 5 in stock | View |
