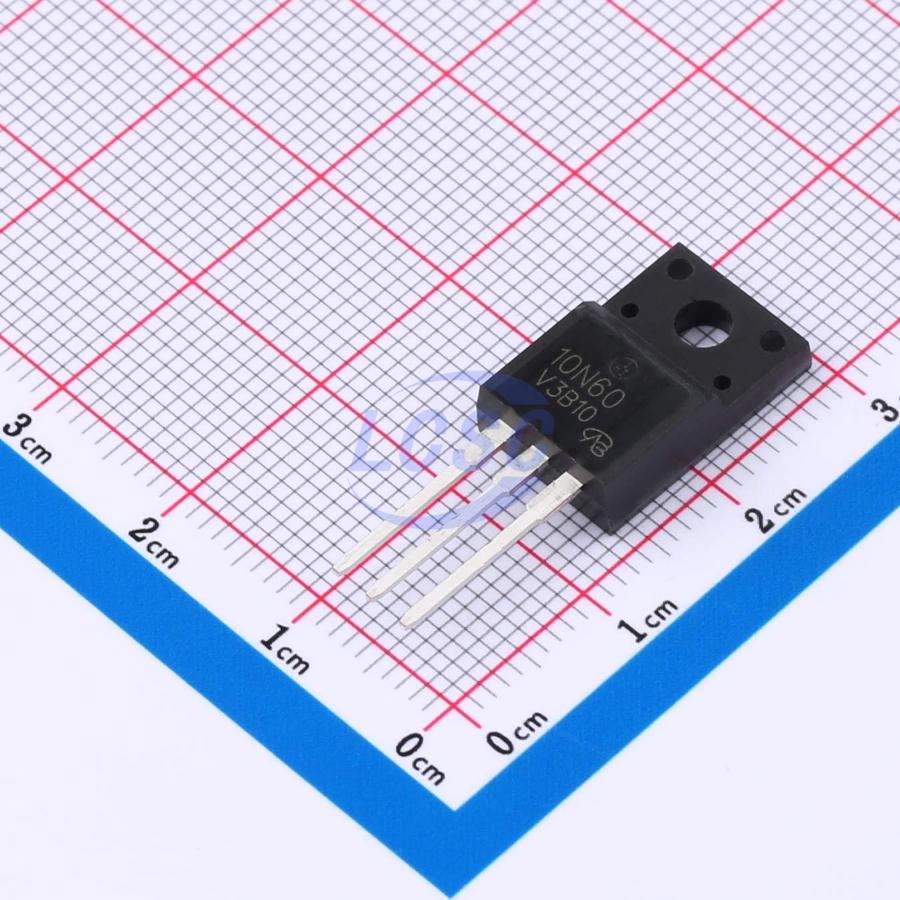

SVD10N60F-VB
N-Channel 650V 10A 178W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 10A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SVD10N60F-VB
- Store part #
- C2680822
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C2680822
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.91 | ₹139.91 |
| 10+ | ₹116.37 | ₹1,163.70 |
| 50+ | ₹103.56 | ₹5,178.00 |
| 100+ | ₹88.85 | ₹8,885.00 |
| 500+ | ₹82.34 | ₹41,170.00 |
| 1,000+ | ₹79.41 | ₹79,410.00 |
1 × ₹139.91
₹139.91
excl. GST
₹165.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
SVD10N60F-VB
₹139.91 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 400pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 178W
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 820mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.864 g
