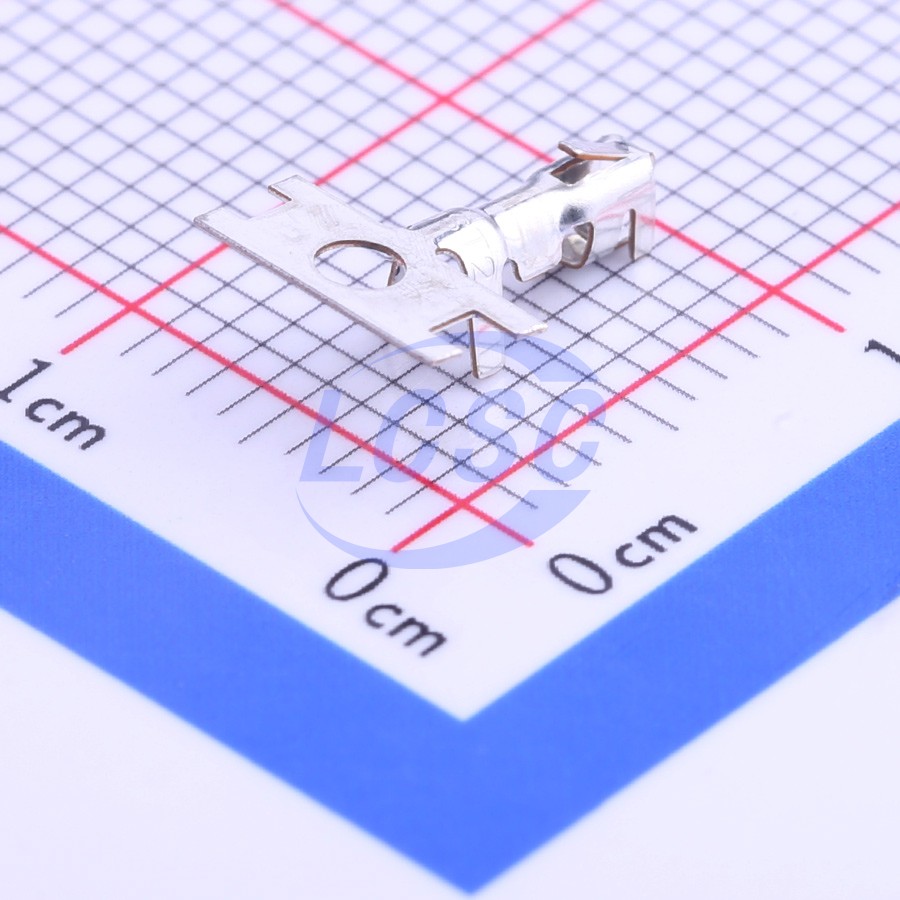

SXH-001T-P0.6
Connector Terminal XH Tin 22~28 AWG Crimp
CONN TERM 22~28AWG CRIMP TIN
- Manufacturer
- JST
- Manufacturer part #
- SXH-001T-P0.6
- Store part #
- C140573
- Package / case
- -
- Category
- Rectangular Connector Contacts
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,47,400 in stock
#C140573
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹1.71 | ₹171.00 |
| 1,000+ | ₹1.34 | ₹1,340.00 |
| 3,000+ | ₹1.18 | ₹3,540.00 |
| 8,000+ | ₹1.06 | ₹8,480.00 |
| 48,000+ | ₹1.01 | ₹48,480.00 |
| 96,000+ | ₹0.979 | ₹93,984.00 |
100 × ₹1.71
₹171.00
excl. GST
₹201.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SXH-001T-P0.6
₹171.00 for 100 + GST
Specifications
- Wire Gauge - mm2
- 0.08~0.33
- Wire Gauge - AWG
- 22~28
- Contact Plating
- Tin
- Contact Material
- Phosphor bronze
- Reference Series
- XH
- Insulation OD
- 0.9mm~1.9mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.157 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TJC3-T#C22374382DLL · - | DLL | - | 8,800 | ₹1.34 · 8,800 in stock | View |
 | A2501-TP#C339286CJT(Changjiang Connectors) · - | CJT(Changjiang Connectors) | - | 6,50,300 | ₹1.06 · 6,50,300 in stock | View |
 | B2542-2DP1#C41409739JXTCONN · - | JXTCONN | - | 13,300 | ₹1.22 · 13,300 in stock | View |
 | HDGC2501-T#C5292543HDGC · - | HDGC | - | 6,000 | ₹0.9658 · 6,000 in stock | View |
 | ZJLQ-XH2.54A25001-T-F#C55195191Lingqiang · - | Lingqiang | - | 5,850 | ₹1.43 · 5,850 in stock | View |
Questions about SXH-001T-P0.6
What Applications is the JST SXH-001T-P0.6 Electronic Component Commonly Used In?
The SXH-001T-P0.6 connector contact is widely used in consumer electronics, industrial controls, power supplies, automotive subassemblies, and wire harness applications. Its durable crimp design and compatibility with JST XH connectors make it ideal for secure wire-to-board connections.
Is the JST SXH-001T-P0.6 Compatible With Other JST XH Series Connectors or Equivalent Parts?
Yes, the JST SXH-001T-P0.6 is designed for use within the JST XH series connector system and should be matched with compatible XH housings and terminals according to the datasheet. For equivalent parts or cross-references, engineers should verify dimensions, wire gauge range, plating, and electrical specifications before replacement.
Does the JST SXH-001T-P0.6 Meet Industry Reliability and Compliance Standards?
The JST SXH-001T-P0.6 connector contact is manufactured by JST, a globally recognized connector supplier known for high-quality interconnect solutions. The part is RoHS compliant and features tin-plated phosphor bronze construction, helping ensure long-term reliability and compliance for modern electronic applications.
What are the Key Specifications and Features of the JST SXH-001T-P0.6 Connector Contact?
The JST SXH-001T-P0.6 is a crimp-type rectangular connector contact designed for the JST XH series. Key specifications include 22–28 AWG wire compatibility, tin-plated phosphor bronze contacts, and support for insulation diameters from 0.9 mm to 1.9 mm, providing reliable electrical connections in compact electronic assemblies.
