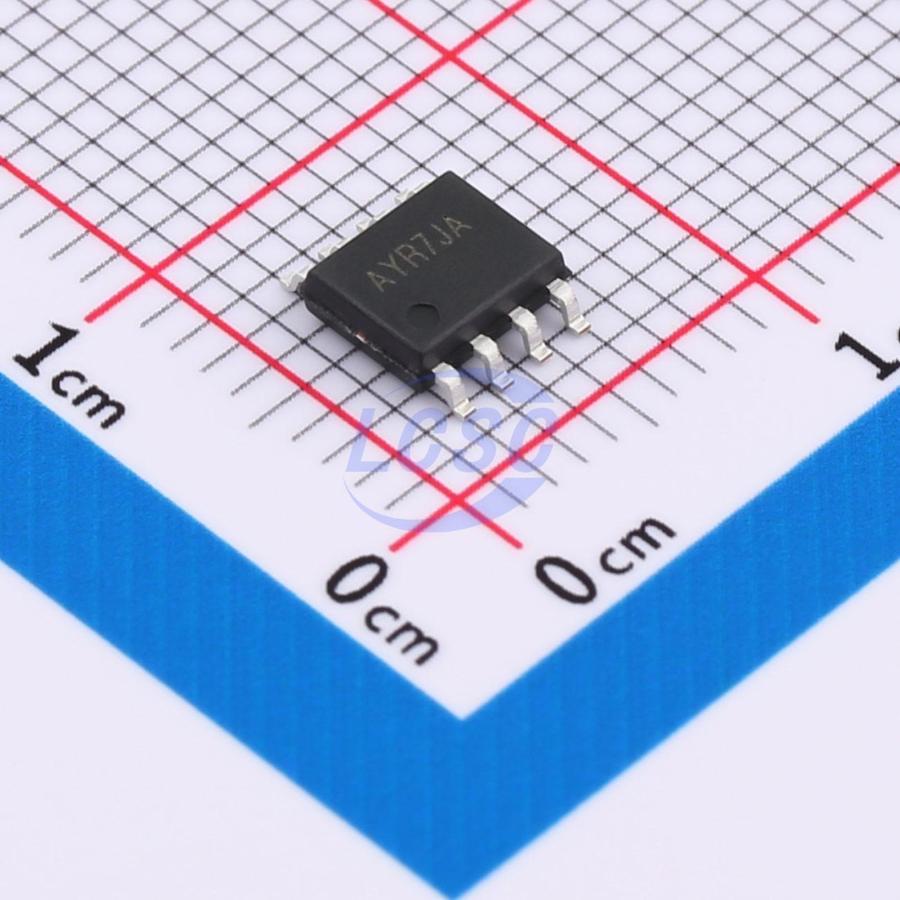

SY58282NFAC

The SY58282N is a Buck regulator targeting at LED lighting applications. It integrates a 500V MOSFET to decrease physical volume. It adopts the proprietary control architecture to achieve an accurate regulation of LED current and Quasi-Resonant valley turn-on for high efficiency operation. Proprietary self-bias technique saves the bias supply and reduces the startup time. It integrates open/short LED protection and eliminates the need for opto-coupler or auxiliary winding (in floating switch application), thus minimizing the component count and board size.

Key features

• Integrated 500V MOSFET
• Quasi-Resonant (QR) mode to achieve low switching losses
• Fast Start up (<300ms)
• No opto-coupler or auxiliary winding for feedback in the proprietary floating switch configuration
• Reliable short LED and open LED protection
• Thermal foldback function
• Maximum output power: 24W
• Compact package: SO8
