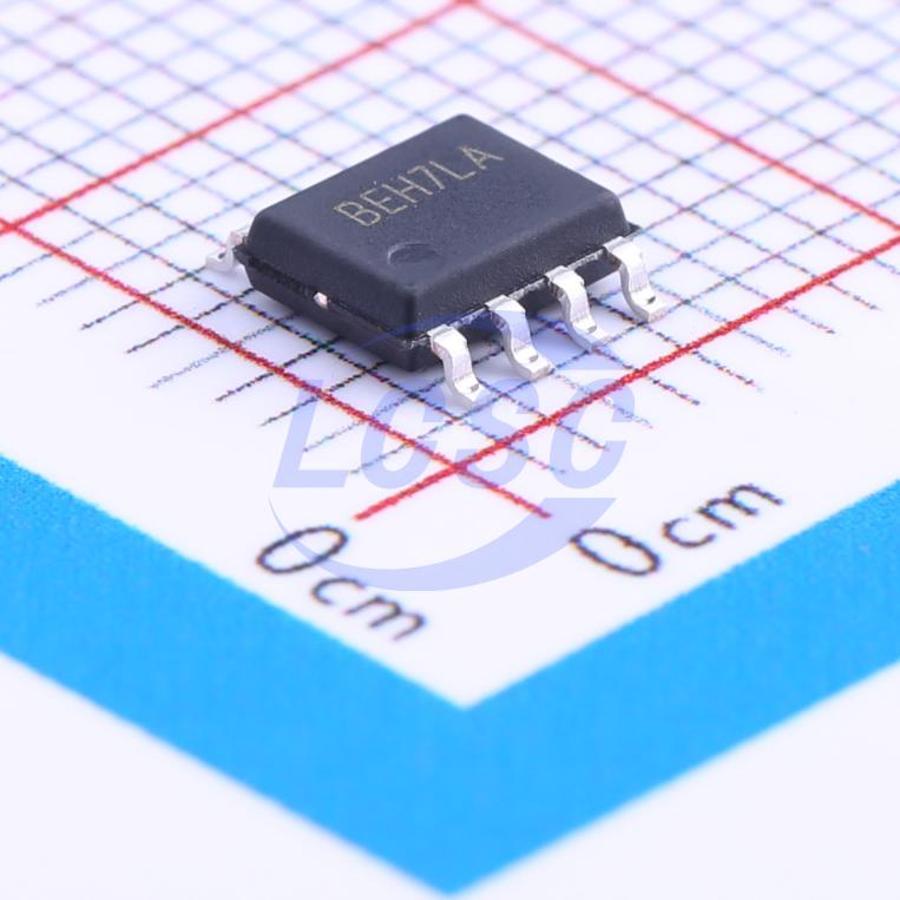

SY5881FAC
46kHz~120kHz Buck 1 300mA 8V~20V SOP-8 LED Drivers ICs
Single Stage Buck And PFC Controller With Primary Side Control For LED Lighting And Mutiple Dimming Option
- Manufacturer
- Silergy
- Manufacturer part #
- SY5881FAC
- Store part #
- C178241
- Package / case
- SOP-8
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,115 in stock
#C178241
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.11 | ₹260.55 |
| 50+ | ₹41.13 | ₹2,056.50 |
| 150+ | ₹36.61 | ₹5,491.50 |
| 500+ | ₹30.80 | ₹15,400.00 |
| 2,500+ | ₹28.22 | ₹70,550.00 |
| 5,000+ | ₹26.71 | ₹1,33,550.00 |
5 × ₹52.11
₹260.55
excl. GST
₹307.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY5881FAC
₹260.55 for 5 + GST
Specifications
- Features
- Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP);High voltage fast start
- Frequency - Switching
- 46kHz~120kHz
- Switch Tube (Built-In/External)
- External
- Operating temperature
- -40℃~+150℃
- Topology
- Buck
- Number of Channels
- 1
- Output Current
- 300mA
- Voltage - Input(DC)
- 8V~20V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.123 g
Overview
The SY5881 is a single stage Buck and PFC controller targeting at LED lighting applications with PWM or Analog dimming. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the Buck converter in the quasi-resonant mode to achieve higher efficiency. It keeps the Buck converter in constant on time operation to achieve high power factor.
Applications
- LED lighting
Key features
- High dimming accuracy
- Dimming Range from 5.5% to 100.0%
- CV mode for Bias supply at <2.5% Dimming Signal
- Valley turn-on of the primary MOSFET to achieve low switching losses
- 300mV primary current sense reference voltage leads to a lower sense resistance thus a lower conduction loss
- Internal high current MOSFET driver: 200mA sourcing and 650mA sinking
- Low start up current: 34μA typical
- Reliable short LED and Open LED protection
- Power factor >0.90
- Compact package: SO8
