SilergyDatasheet (PDF)

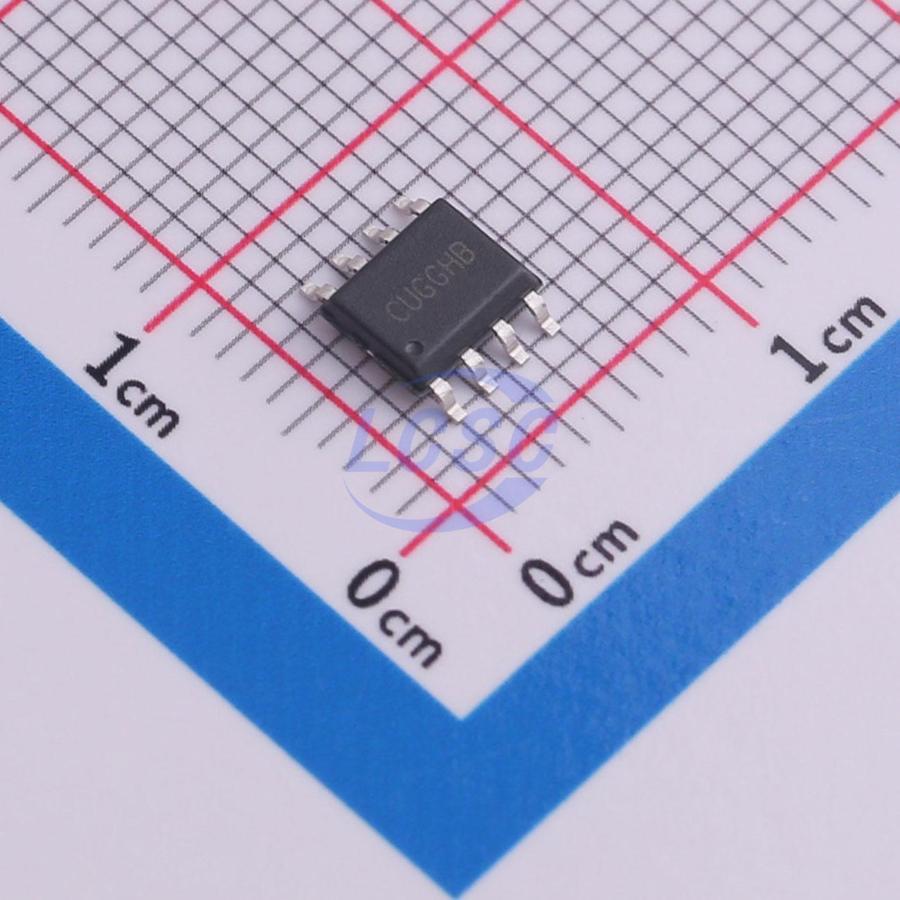

SY59515FAC
200kHz 42V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
SY59515 Charge Pump PFC LLC Low Side Controller
- Manufacturer
- Silergy
- Manufacturer part #
- SY59515FAC
- Store part #
- C21726224
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C21726224
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.11 | ₹145.55 |
| 50+ | ₹25.18 | ₹1,259.00 |
| 150+ | ₹23.48 | ₹3,522.00 |
| 500+ | ₹21.38 | ₹10,690.00 |
| 2,500+ | ₹20.45 | ₹51,125.00 |
| 5,000+ | ₹19.88 | ₹99,400.00 |
5 × ₹29.11
₹145.55
excl. GST
₹171.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY59515FAC
₹145.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+120℃
- Frequency - Switching
- 200kHz
- Features
- Soft-start;Output short-circuit protection;Overcurrent Protection
- Output Voltage
- 42V
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
SY59515 is the low side LLC controller integrated with a 500V MOSFET, it is used in charge pump PFC application. High PF is achieved by inherent PFC function and low LED current ripple is achieved by LLC topology. Single stage structure and primary side regulation save BOM cost a lot. Meanwhile, LLC topology improves efficiency and EMI. It should work with SY59516, which is the high side LLC controller integrated with a 500V MOSFET.
Key features
- Integrated 500V MOSFET
- Charge Pump PFC LLC Topology with Low BOM Cost
- PF > 0.95, THD < 20%
- Primary Side I_LED Regulation and Less than 2% ILED Ripple
- Short LED Protection (SLP), Open LED Protection (OLP), E-cap over Voltage Protection (HV OVP)
- Zero Voltage Overshoot on Resonant Capacitor at Startup
- Compact Package: SO8
