SilergyDatasheet (PDF)

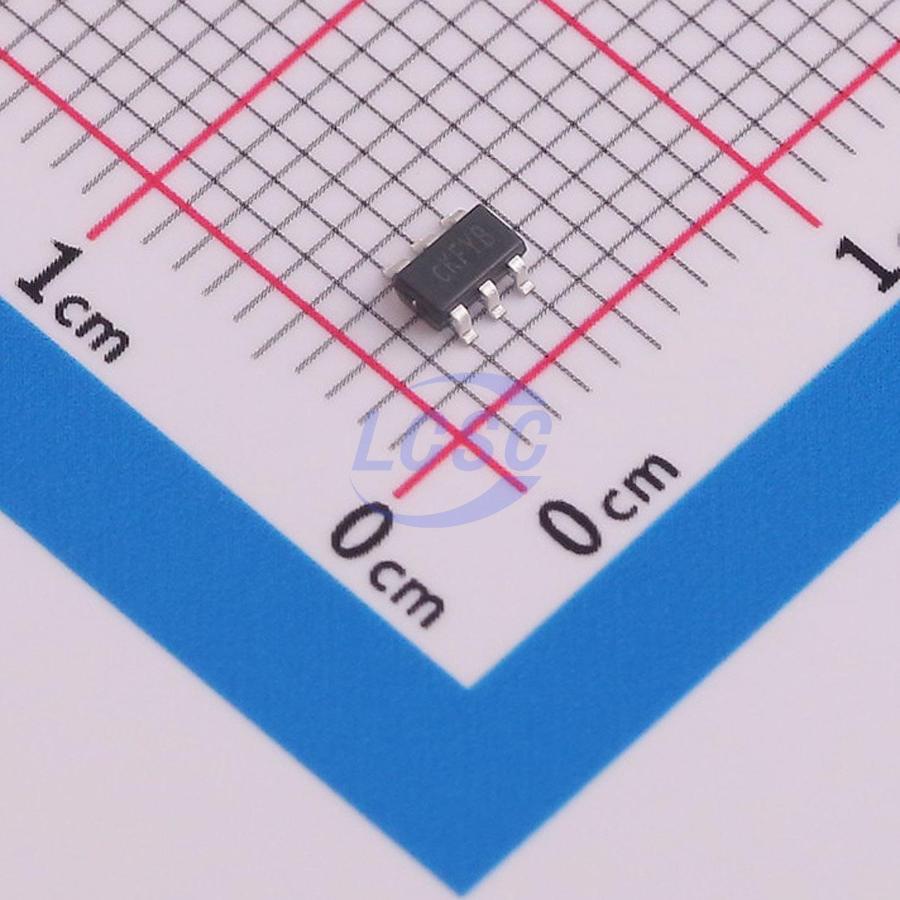

SY7072AABC
1MHz Boost Adjustable 1.8V~5.5V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 2A Valley Current Synchronous Boost Converter
- Manufacturer
- Silergy
- Manufacturer part #
- SY7072AABC
- Store part #
- C22386819
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,981 in stock
#C22386819
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.52 | ₹68.52 |
| 10+ | ₹54.86 | ₹548.60 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹41.85 | ₹4,185.00 |
| 500+ | ₹38.61 | ₹19,305.00 |
| 1,000+ | ₹36.65 | ₹36,650.00 |
1 × ₹68.52
₹68.52
excl. GST
₹80.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY7072AABC
₹68.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 850mV~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.8V~5.5V
- Output Current
- 2A
- Quiescent Current
- 5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
SY7072A is a high efficient, synchronous, step-up Boost converter designed for one-cell Li-Ion or Lipolymer, or a two to three-cell alkaline Ni-Cd or NiMH battery powered applications. It can convert down to 0.85V input voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. SY7072A can disconnect the output from input during the shutdown mode. When input voltage exceeds the regulated output voltage, SY7072A enters bypass mode automatically.
Applications
- All Single Cell Li or Dual Cell Battery Operated Products as MP-3 Player, PDAs, and Other Portable Equipment
Key features
- 0.85V Minimum Input Voltage
- Adjustable Output Voltage from 1.8V to 5.5V
- Min 2A Valley Current Limit
- 5μA Typical Quiescent Current
- Load Disconnect During Shutdown
- Low RDS(ON) (Main Switch/Synchronous Switch) at 3.3V Output: 100/170mΩ
- Output OVP
- RoHS Compliant and Halogen Free
- Auto Bypass Mode When VIN ≥ VOUT
- Compact Package SOT23-6
