Silergy

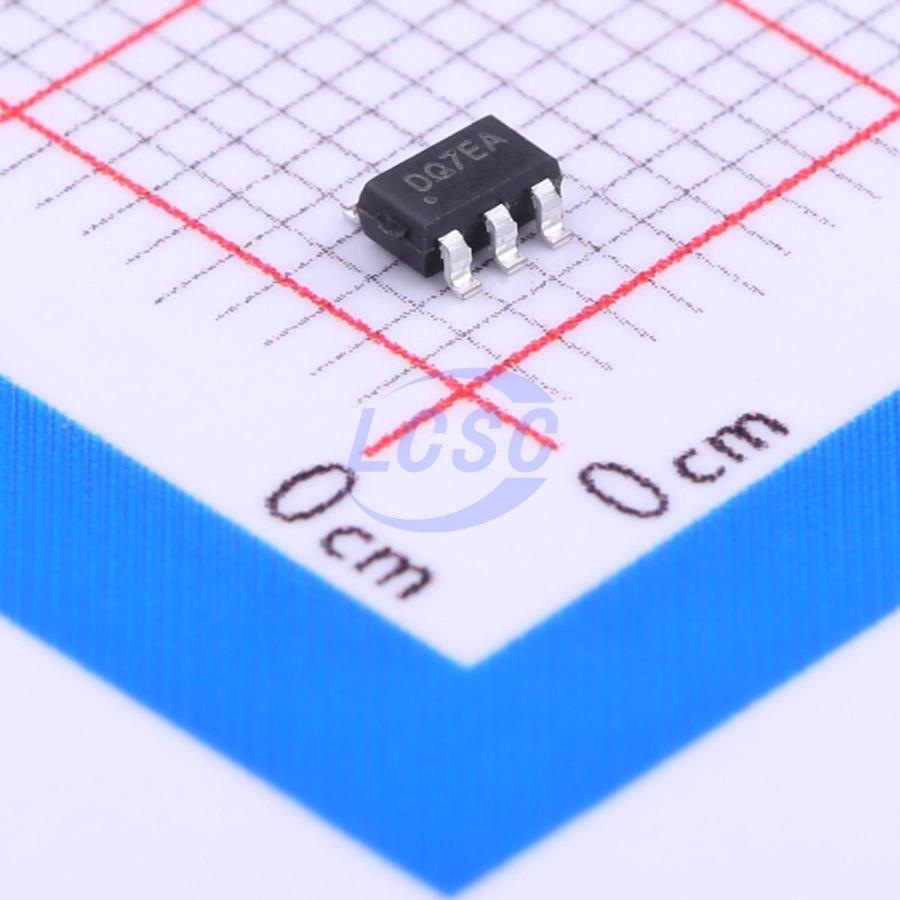

SY7201ABC

1MHz Boost DC-DC 2.5V~30V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

30V High Current Boost LED Driver

Manufacturer: Silergy
Manufacturer part #: SY7201ABC
Store part #: C82173
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,630 in stock

#C82173

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
5+	₹43.43	₹217.15
50+	₹33.71	₹1,685.50
150+	₹29.54	₹4,431.00
500+	₹24.34	₹12,170.00
3,000+	₹22.03	₹66,090.00
6,000+	₹20.64	₹1,23,840.00

Quantity (min 5, multiples of 5)

5 × ₹43.43

₹217.15

excl. GST

₹256.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY7201ABC

₹217.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Boost
Type: DC-DC
Voltage - Input(DC): 2.5V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

SY7201 is a DC/DC step-up converter that delivers an accurate constant current for driving LEDs. Operation at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor. LEDs connected in series are driven with a regulated current set by the external resistor. The SY7201 is ideal for driving up to eight white LEDs in series or up to 30V.
