SilergyDatasheet (PDF)

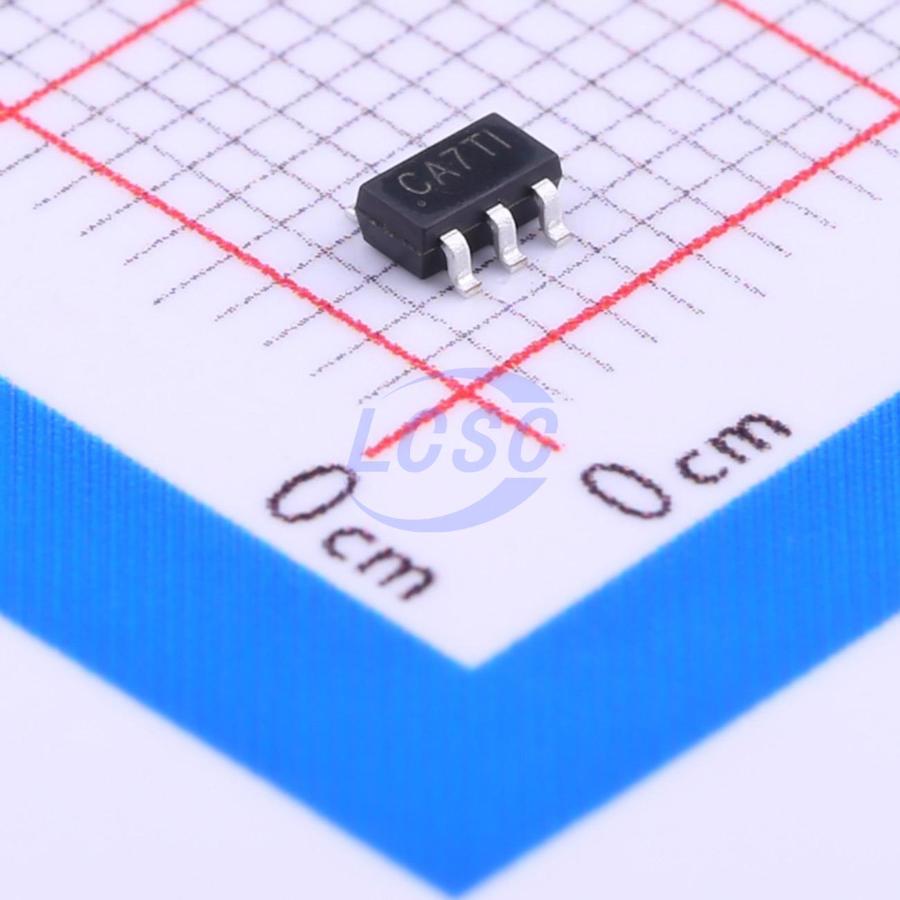

SY7208ABC
800kHz~1.2MHz Boost Adjustable 600mV~25V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 1MHz, 2A Step Up Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7208ABC
- Store part #
- C80514
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,435 in stock
#C80514
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.74 | ₹223.70 |
| 50+ | ₹34.78 | ₹1,739.00 |
| 150+ | ₹30.51 | ₹4,576.50 |
| 500+ | ₹25.18 | ₹12,590.00 |
| 3,000+ | ₹22.80 | ₹68,400.00 |
| 6,000+ | ₹21.38 | ₹1,28,280.00 |
5 × ₹44.74
₹223.70
excl. GST
₹263.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY7208ABC
₹223.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 800kHz~1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 3V~25V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~25V
- Output Current
- 2A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The SY7208 is a high efficiency, with an integrated NMOSFET current-mode and fixed frequency boost converter. The SY7208 integrated a very low Rds-on of NMOSFTET and feedback voltage to reduce power loss and achieve high efficiency. 1MHz operate frequency and internal compensation network minimizes as few external component counts and small L and C value. SOT23-6 package provides the best solution for PCB space saving and total BOM cost.
Applications
- White LED Display Backlighting
- Cell Phone and Smart Phone
- PDA, PMP, MP3
- Digital Camera
Key features
- Wide input range: 3 - 25V bias input, 25Vout max
- 1MHz switching frequency
- Low RDS(ON): 150 mΩ
- Up to 90% efficiency
- Under-Voltage lockout Protection
- Over-Temperature Protection
- Internal Soft Start
- 1uA Shutdown current
- RoHS Compliant and Halogen Free
- Accurate Reference; 0.6V_REF
- Compact package: SOT23-6
