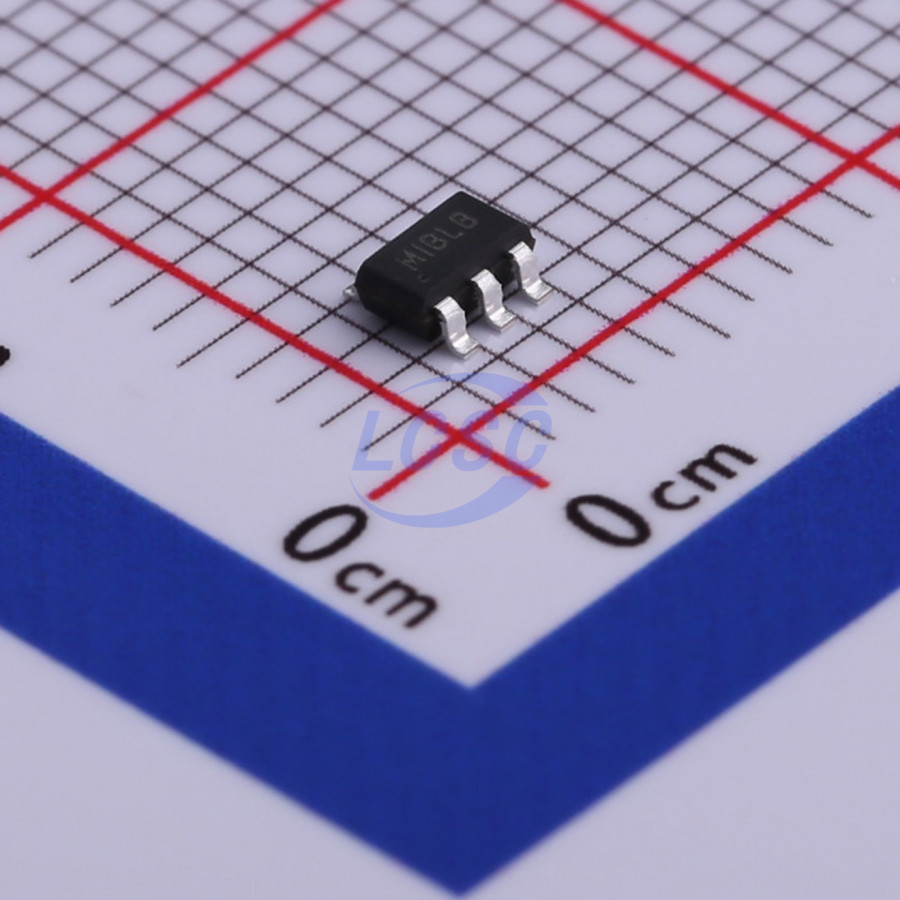

Silergy

SY7208LABC

Boost Switching Regulator IC Adjustable 1 Output SOT-23-6

SOT-23-6RoHSActive

High Efficiency 1MHz, 2A Step Up Regulator

Manufacturer: Silergy
Manufacturer part #: SY7208LABC
Store part #: C207632
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,815 in stock

#C207632

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹40.83	₹204.15
50+	₹32.08	₹1,604.00
150+	₹28.34	₹4,251.00
500+	₹23.66	₹11,830.00
3,000+	₹19.83	₹59,490.00
6,000+	₹18.59	₹1,11,540.00

Quantity (min 5, multiples of 5)

5 × ₹40.83

₹204.15

excl. GST

₹240.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY7208LABC

₹204.15 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1MHz
Function: Boost
Number of Outputs: 1
Output Type: Adjustable
Topology: Boost
Operating Voltage: 3V~25V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 100uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

Applications

WLED Drivers
Networking cards powered from PCI or PCI express slots

Key features

Wide input range: 3 - 25V bias input, 25Vout max
1MHz switching frequency
Minimum on time: 100ns typical
Minimum off time: 100ns typical
Low RDS(ON): 150mΩ
RoHS Compliant and Halogen Free
Accurate Reference: 0.6V_REF
Compact package: SOT23 6 pins
