SilergyDatasheet (PDF)

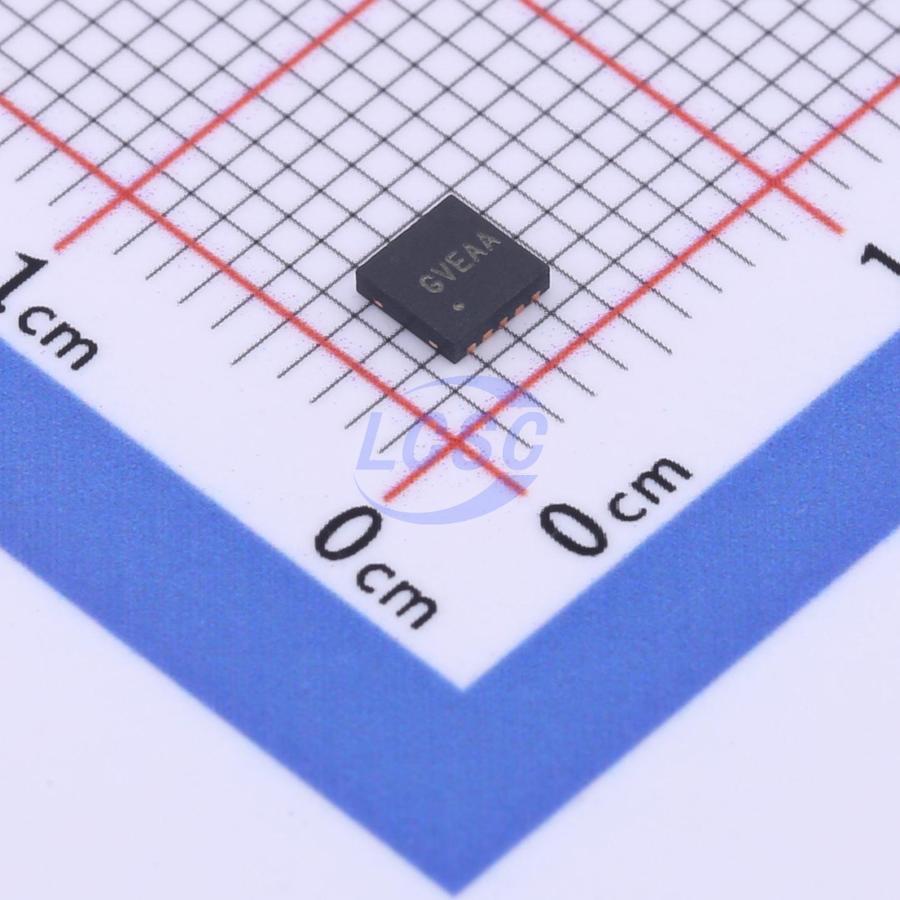

SY7219DBC
Boost Adjustable 9A DFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators
DFN-10-EP(3x3)RoHSActive
High Efficiency Boost DC-DC Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7219DBC
- Store part #
- C5110278
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,493 in stock
#C5110278
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.16 | ₹106.16 |
| 10+ | ₹96.04 | ₹960.40 |
| 30+ | ₹90.44 | ₹2,713.20 |
| 100+ | ₹84.41 | ₹8,441.00 |
| 500+ | ₹81.62 | ₹40,810.00 |
| 1,000+ | ₹80.32 | ₹80,320.00 |
1 × ₹106.16
₹106.16
excl. GST
₹125.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY7219DBC
₹106.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 9A
- Quiescent Current
- 380uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
SY7219 is a high efficiency, current-mode control Boost DC to DC regulator with an integrated 65mΩ RDS(ON) N-channel MOSFET. The OFF time and the peak current limit can be programmed for more applications.
Applications
- Industry control system
- Battery power system
Key features
- Internal 9A switch
- Low RDS(ON) for internal switch: 65mΩ
- Programmable peak current limit
- Programmable constant OFF time
- Maximum voltage rating of internal switch 36V
- Internal softstart limiting the inrush current
- RoHS Compliant and Halogen Free Compact package: DFN3×3-10
