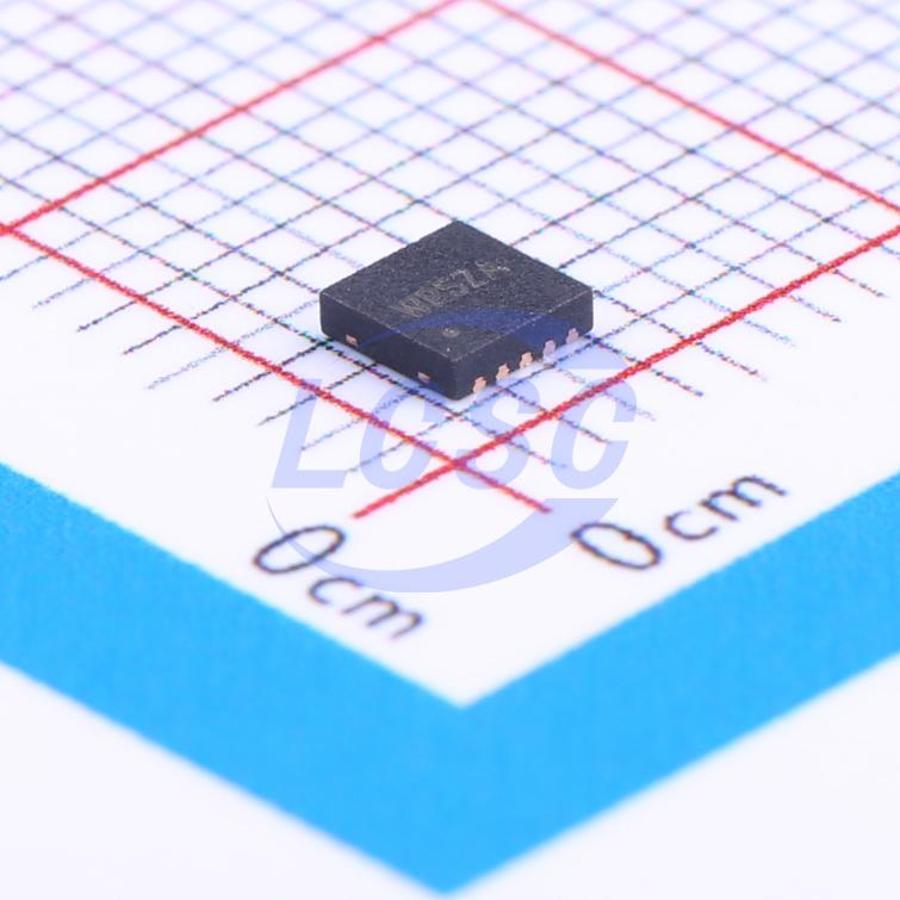

Silergy

SY7301ADBC

800kHz~1.2MHz 1 Boost DC-DC 2.8V~40V DFN-10-EP(3x3) LED Drivers ICs

DFN-10-EP(3x3)RoHSActive

40V High Current Boost LED Driver

Manufacturer: Silergy
Manufacturer part #: SY7301ADBC
Store part #: C178244
Package / case: DFN-10-EP(3x3)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,784 in stock

#C178244

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
1+	₹57.38	₹57.38
10+	₹45.21	₹452.10
30+	₹39.77	₹1,193.10
100+	₹33.25	₹3,325.00
500+	₹30.22	₹15,110.00
1,000+	₹28.47	₹28,470.00

Quantity (min 1)

1 × ₹57.38

₹57.38

excl. GST

₹67.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SY7301ADBC

₹57.38 for 1 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 800kHz~1.2MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Voltage - Input(DC): 2.8V~40V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

SY7301A develops a step-up DC/DC converter that delivers an accurate constant current for driving LEDs. Operating at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor. LEDs connected in series are driven with a regulated current set by the external resistor. The SY7301A is ideal for driving up to ten white LEDs in series or up to 40V.
