SilergyDatasheet (PDF)

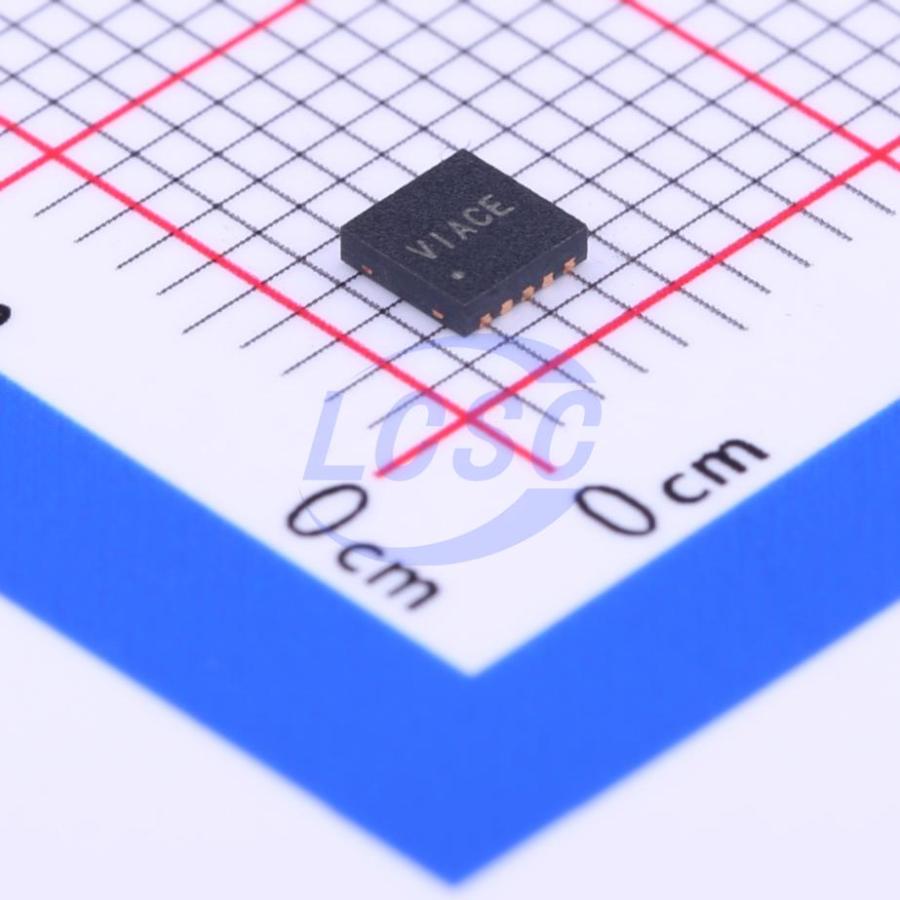

SY7304DBC
Boost Switching Regulator IC Adjustable 0.6V~33V 1 Output 4A DFN-10-EP(3x3)
DFN-10-EP(3x3)RoHSActive
High Efficiency 33V, 4A, 1MHz Step Up Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7304DBC
- Store part #
- C178252
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,163 in stock
#C178252
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.89 | ₹77.89 |
| 10+ | ₹62.43 | ₹624.30 |
| 30+ | ₹54.83 | ₹1,644.90 |
| 100+ | ₹47.20 | ₹4,720.00 |
| 500+ | ₹40.68 | ₹20,340.00 |
| 1,000+ | ₹38.29 | ₹38,290.00 |
1 × ₹77.89
₹77.89
excl. GST
₹91.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY7304DBC
₹77.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 800kHz~1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 3V~33V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~33V
- Output Current
- 4A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
Applications
- Portable devices
- Battery-powered systems
- NIC powered by PCI or PCI Express slots
Key features
- High-efficiency, current-mode control boost regulator
- Integrated 120mΩ low RDS(ON) N-channel MOSFET for high efficiency
- Fixed 1MHz switching frequency and internal compensation to minimize external component size and count
- Built-in internal soft-start circuit to minimize inrush current at startup
- Wide input voltage range: 3 - 33V
- Maximum output voltage: 33V
- Integrated 120mΩ RDS(ON) switch with 4A peak current capability
- Internal soft-start
- 0.6V ± 2% reference voltage
- Cycle-by-cycle peak current limiting
- Over-temperature protection
- RoHS compliant and halogen-free
- Compact package: DFN3×3-10
