Silergy

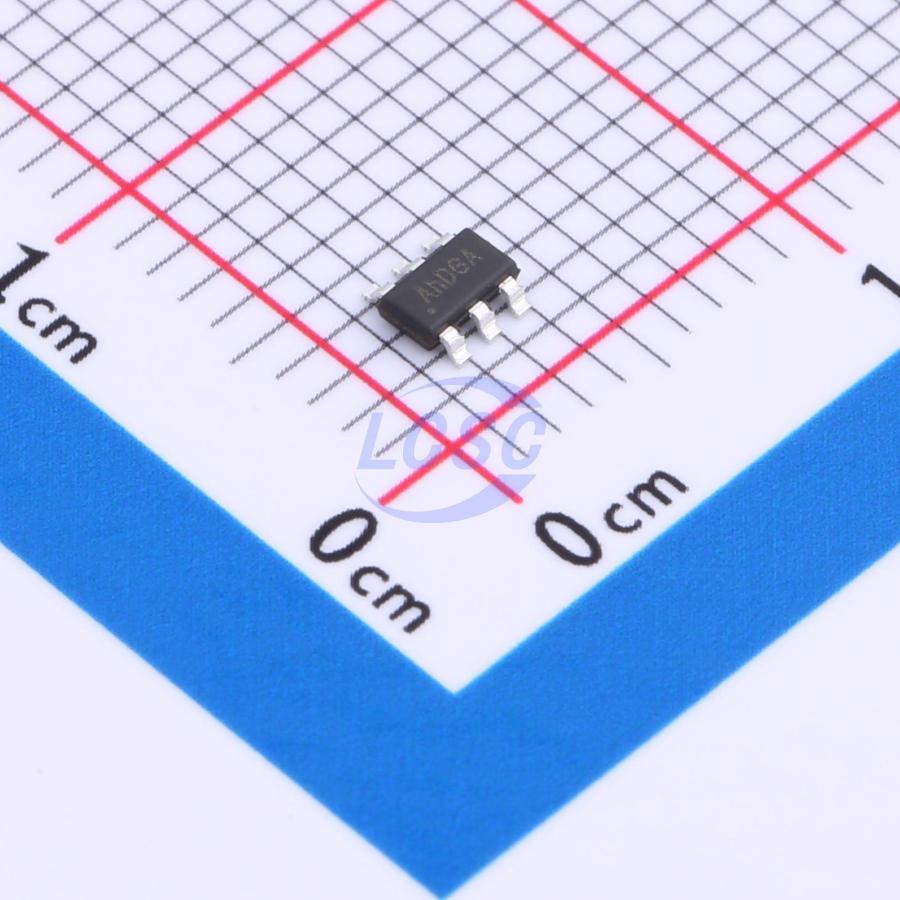

SY7311AADC

1MHz 1 Boost DC-DC 2.5V~5.5V TSOT-23-6 LED Drivers ICs

TSOT-23-6RoHSActive

40V High Current Boost LED Driver

Manufacturer: Silergy
Manufacturer part #: SY7311AADC
Store part #: C2986879
Package / case: TSOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,595 in stock

#C2986879

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.94	₹104.70
50+	₹20.41	₹1,020.50
150+	₹20.06	₹3,009.00
500+	₹19.70	₹9,850.00

Quantity (min 5, multiples of 5)

5 × ₹20.94

₹104.70

excl. GST

₹123.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY7311AADC

₹104.70 for 5 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

SY7311A, SY7311B and SY7311D are step-up DC/DC converters that deliver an accurate constant current for driving LEDs. Operating at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor. LEDs connected in series are driven with a regulated current set by the external resistor. The SY7311A, SY7311B and SY7311D are ideal for driving up to ten white LEDs in series or up to 40V.
