Silergy

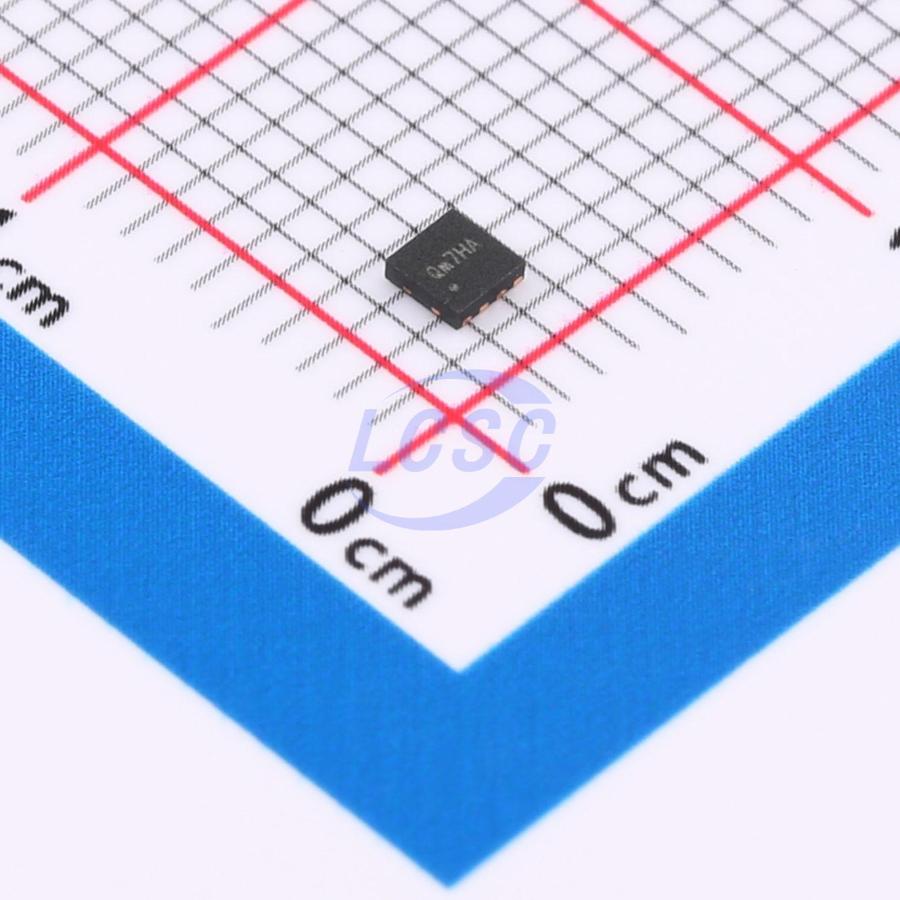

SY8003C1DFC

Step-down type 3MHz Adjustable 3A DFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators

DFN-8-EP(2x2)RoHSActive

High Efficiency 5.5V, 3A Continuous, 3MHz Synchronous Step Down Regulator

Manufacturer: Silergy
Manufacturer part #: SY8003C1DFC
Store part #: C41407207
Package / case: DFN-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,145 in stock

#C41407207

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.51	₹152.55
50+	₹26.39	₹1,319.50
150+	₹24.63	₹3,694.50
500+	₹22.45	₹11,225.00
3,000+	₹21.47	₹64,410.00
6,000+	₹20.88	₹1,25,280.00

Quantity (min 5, multiples of 5)

5 × ₹30.51

₹152.55

excl. GST

₹180.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY8003C1DFC

₹152.55 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 3MHz
Number of Outputs: 1
Features: Hiccup current limiting;Operating status indication;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 55uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The SY8003C1 is high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 3A output current. The SY8003C1 operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Applications

LCD TV
Set Top Box
Net PC
Mini-Notebook PC
Access Point Router

Key features

High efficiency, high frequency synchronous step-down DC/DC regulator
Capable of delivering up to 3A output current
Operates over a wide input voltage range from 2.7V to 5.5V
Integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss
Low output voltage ripple and small external inductor and capacitor sizes achieved with >3MHz switching frequency
Integrates reliable short circuit and overvoltage protection
Low RDS(ON) for Internal Switches (Top/Bottom): 110mΩ/80mΩ
3A Continuous Load Current Capability
2.7 - 5.5V Input Voltage Range, Target at 4.2V Output Application
High Switching Frequency Minimizes the External Components: 3MHz
Internal soft-start Limits the Inrush Current
Hic-cup Mode Protection
100% Dropout Operation
RoHS Compliant and Halogen Free
Compact Package: DFN2×2 - 8
