SilergyDatasheet (PDF)

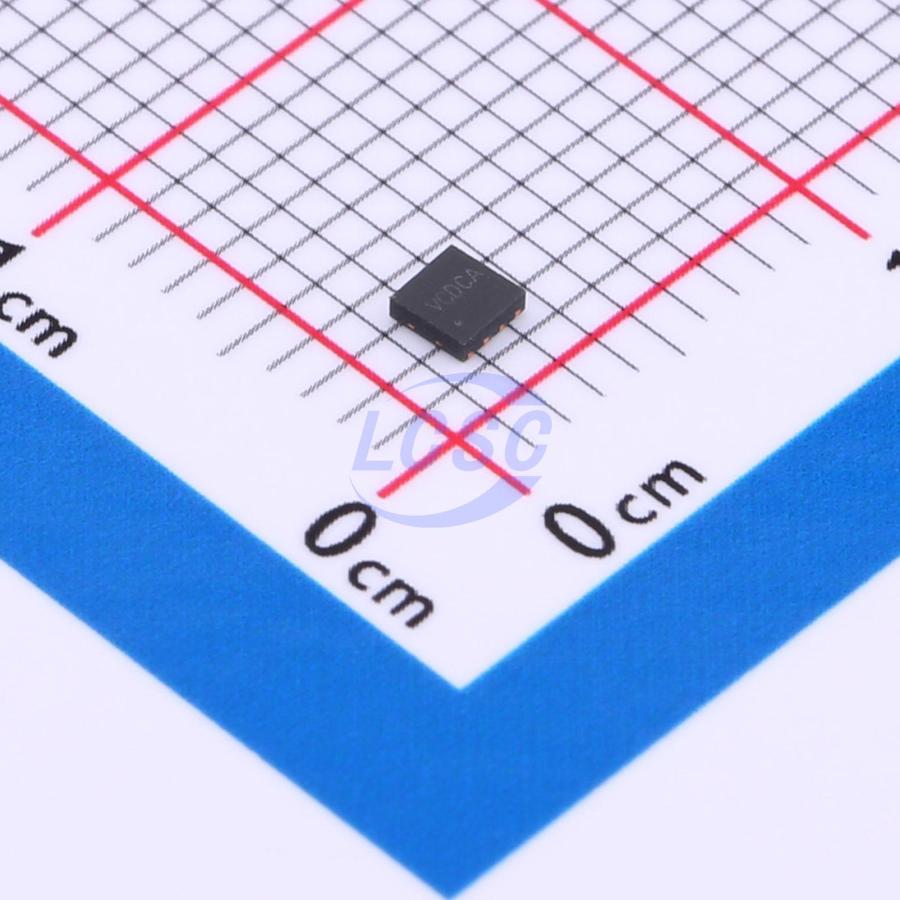

SY8003EDFC
Buck Switching Regulator IC 1 Output DFN-8(2x2)
DFN-8(2x2)RoHSActive
High Efficiency 5.5V, 3A Continuous, 1MHz Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8003EDFC
- Store part #
- C3003358
- Package / case
- DFN-8(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,345 in stock
#C3003358
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.75 | ₹183.75 |
| 50+ | ₹28.81 | ₹1,440.50 |
| 150+ | ₹25.40 | ₹3,810.00 |
| 500+ | ₹21.15 | ₹10,575.00 |
| 3,000+ | ₹19.26 | ₹57,780.00 |
| 6,000+ | ₹18.14 | ₹1,08,840.00 |
5 × ₹36.75
₹183.75
excl. GST
₹216.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8003EDFC
₹183.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Hiccup current limiting;Operating status indication;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
SY8003E is a high-efficiency, high-frequency synchronous step-down DC-DC regulator IC capable of delivering up to 3A of output current. The device operates over a wide input voltage range of 2.7V to 5.5V and integrates both main and synchronous switches with ultra-low on-resistance to minimize conduction losses. The 1MHz switching frequency helps achieve low output voltage ripple while reducing the size of external inductors and capacitors. The SY8003E incorporates robust short-circuit and overvoltage protection features.
Applications
- LCD TVs
- Set-top boxes
- Networked PCs
- Mini notebooks
- Access point routers
Key features
- Low internal switch (high-side/low-side) on-resistance: 110mΩ / 80mΩ
- 3A continuous load current capability
- 2.7V ~ 5.5V input voltage range
- 1MHz switching frequency, minimizing external component count
- Internal soft-start limits inrush current
- Hiccup mode protection
- Robust overvoltage protection: latch-free
- 100% duty cycle dropout operation
- Forced PWM mode operation only
- RoHS compliant and halogen-free
- Compact package: DFN2X2-8
