Silergy

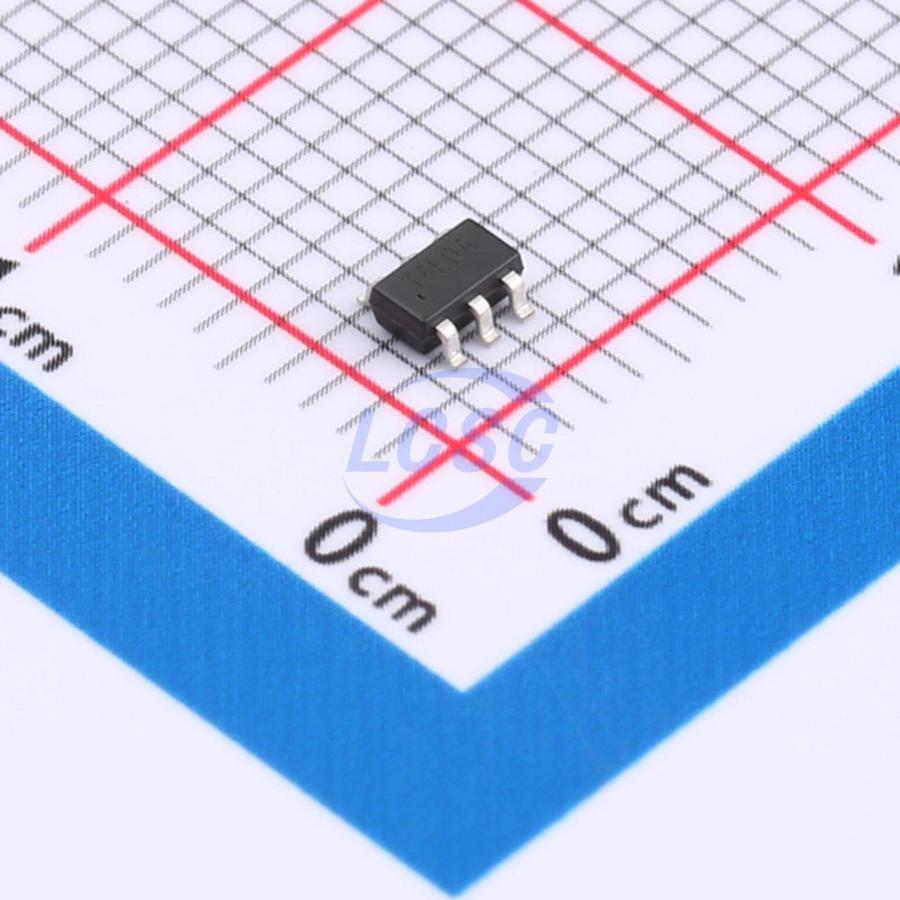

SY80063ABC

Step-down type 1MHz Adjustable 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

High Efficiency, 1MHz, 3A Synchronous Step Down Regulator

Manufacturer: Silergy
Manufacturer part #: SY80063ABC
Store part #: C5121268
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,580 in stock

#C5121268

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.76	₹113.80
50+	₹17.83	₹891.50
150+	₹15.73	₹2,359.50
500+	₹13.10	₹6,550.00
3,000+	₹11.93	₹35,790.00
6,000+	₹11.23	₹67,380.00

Quantity (min 5, multiples of 5)

5 × ₹22.76

₹113.80

excl. GST

₹134.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY80063ABC

₹113.80 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 1MHz
Number of Outputs: 1
Features: Protection latch;Operating status indication;Output discharge
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 55uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.066 g

Overview

The SY80063 is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY80063 integrates reliable latch off function when output over voltage, output short or thermal shutdown happens. The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.

Applications

Set Top Box
USB Dongle
Media Player
Smart Phone

Key features

2.5V to 5.5V Input Voltage Range
55μA Low Quiescent Current
Low RDS(ON) for Internal Switches (Top/Bottom): 85mΩ /60mΩ
High Switching Frequency 1MHz Minimizes the External Components
Internal Soft-start Limits the Inrush Current
100% Dropout Operation
Power Good Indicator
Reliable Latch off Function When: Output Under Voltage, Thermal Shutdown, Output Voltage > 120% of Regulated Voltage
Output Auto Discharge Function
RoHS Compliant and Halogen Free
Compact Package: SOT23-6
