SilergyDatasheet (PDF)

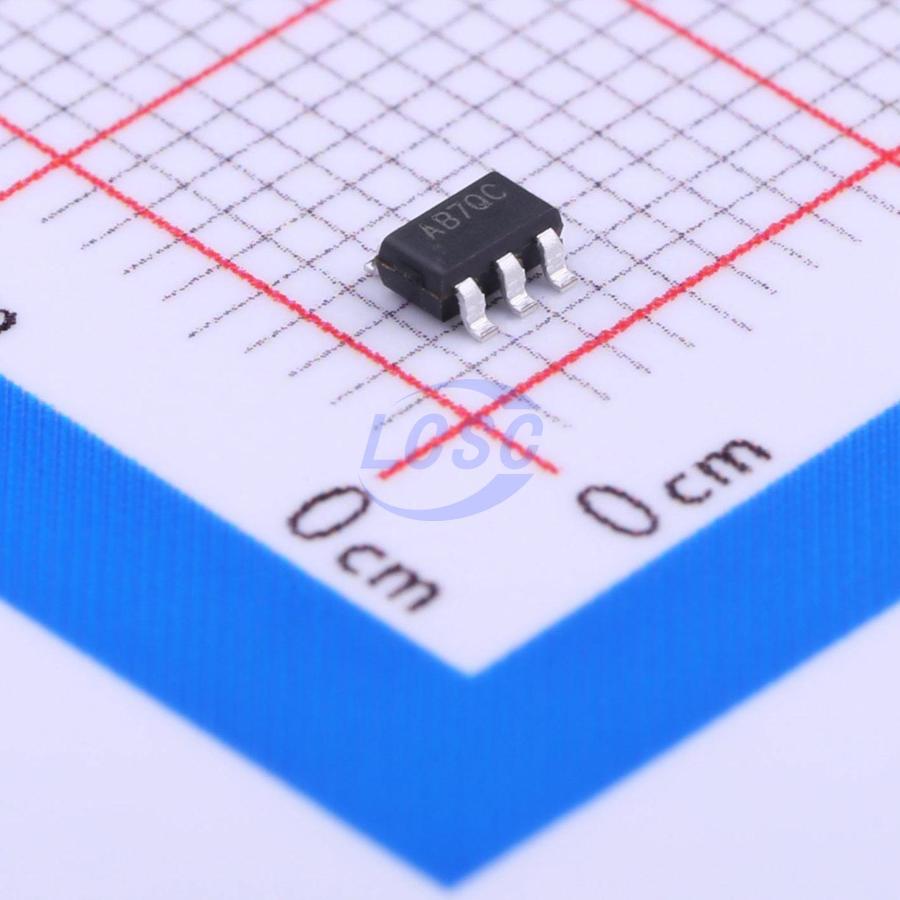

SY8008BAAC
1.5MHz Step-down type Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
High Efficiency 1.5MHz Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8008BAAC
- Store part #
- C82161
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,805 in stock
#C82161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹59.47 | ₹297.35 |
| 50+ | ₹49.18 | ₹2,459.00 |
| 150+ | ₹44.76 | ₹6,714.00 |
| 500+ | ₹39.25 | ₹19,625.00 |
| 3,000+ | ₹36.81 | ₹1,10,430.00 |
| 6,000+ | ₹35.34 | ₹2,12,040.00 |
5 × ₹59.47
₹297.35
excl. GST
₹350.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8008BAAC
₹297.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The SY8008A, SY8008B and SY8008C are high - efficiency 1.5MHz synchronous step - down DC - DC regulator ICs capable of delivering up to 1.2A output currents. The SY8008 family operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency. This along with small SOT23/TSOT - 23 footprint provides small PCB area application.
Applications
- Portable Navigation Device
- Smart phone
- USB Dongle
- Set Top Box
- Media Player
Key features
- Low RDS(ON) for internal switches (top/bottom)
- SY8008A: 300mΩ / 250mΩ
- SY8008B: 250mΩ / 200mΩ
- SY8008C: 200mΩ / 150mΩ
- 2.5 - 5.5V input voltage range
- 1.5MHz switching frequency minimizes the external components
- Internal softstart limits the inrush current
- 100% dropout operation
- RoHS Compliant and Halogen Free
- Compact package: SOT23 - 5/TSOT23 - 5 pin
