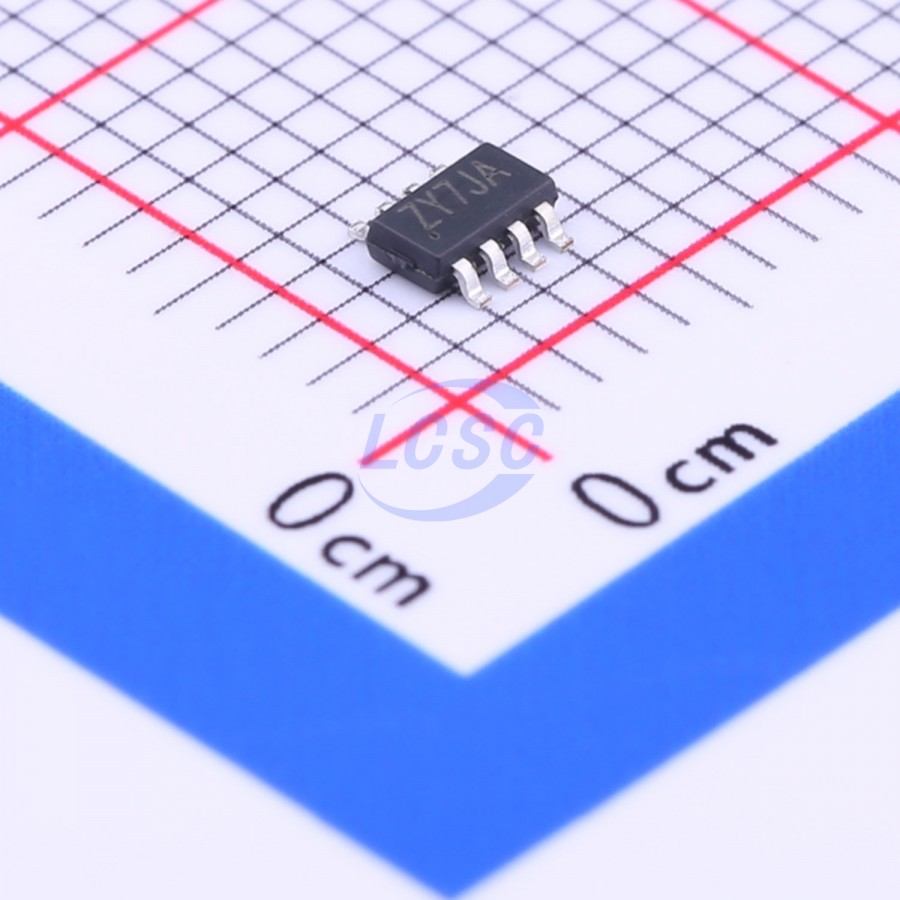

SY8029AIC
2MHz Step-down type Adjustable 2A TSOT-23-8 Voltage Regulators - DC DC Switching Regulators
TSOT-23-8RoHSActive
High Efficiency 2MHz, Dual 2A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8029AIC
- Store part #
- C207636
- Package / case
- TSOT-23-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C207636
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.52 | ₹227.60 |
| 50+ | ₹35.59 | ₹1,779.50 |
| 150+ | ₹31.33 | ₹4,699.50 |
| 500+ | ₹24.66 | ₹12,330.00 |
| 3,000+ | ₹22.30 | ₹66,900.00 |
| 6,000+ | ₹20.88 | ₹1,25,280.00 |
5 × ₹45.52
₹227.60
excl. GST
₹268.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8029AIC
₹227.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2MHz
- Function
- Step-down type
- Number of Outputs
- 2
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 45uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The SY8029 is a dual-output, high efficiency 2MHz synchronous step down DC-DC regulator IC, capable of delivering up to 2A output current each output channel. The SY8029 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Applications
- SSD
- Cell Phones
- Digital Cameras
- PDAs
- Portable Media Players
Key features
- Input range: 2.5V to 5.5V input voltage
- 2MHz switching frequency
- 180° out of phase operation
- Output current: 2A per channel
- Low Quiescent Current: <45uA for both channels
- Low RDS(ON) for internal switches (PFET/NFET): 125mΩ/100mΩ
- Internal soft-start
- 100% dropout operation
- RoHS Compliant and Halogen Free
- Compact package: TSOT23-8
