SilergyDatasheet (PDF)

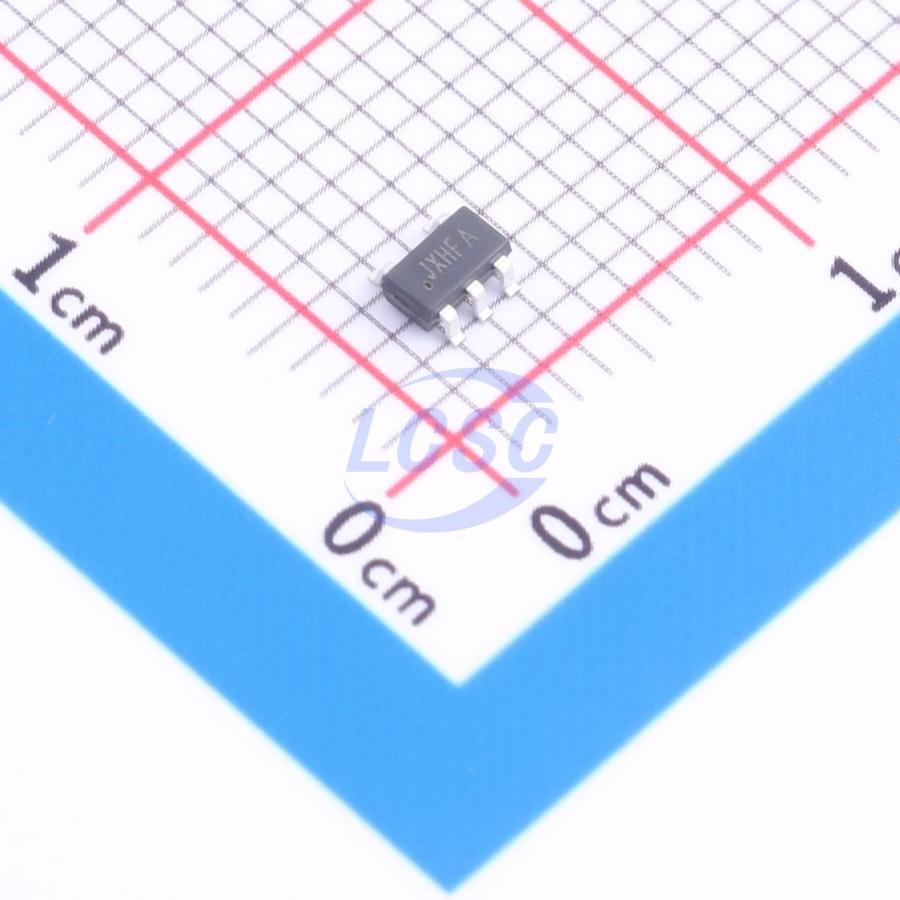

SY8089AAC
Step-down type 1MHz Adjustable 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- Silergy
- Manufacturer part #
- SY8089AAC
- Store part #
- C5187495
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,085 in stock
#C5187495
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.68 | ₹258.40 |
| 50+ | ₹40.81 | ₹2,040.50 |
| 150+ | ₹36.17 | ₹5,425.50 |
| 500+ | ₹30.36 | ₹15,180.00 |
| 2,500+ | ₹27.78 | ₹69,450.00 |
| 5,000+ | ₹26.24 | ₹1,31,200.00 |
5 × ₹51.68
₹258.40
excl. GST
₹304.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8089AAC
₹258.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Protection latch;Output discharge;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 55uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 4.94 g
Overview
SY8089 and SY8089A are high-efficiency, high-frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 2A output current. The SY8089 and SY8089A operate over a wide input voltage range of 2.7V to 5.5V and integrate both main and synchronous switches with ultra-low on-resistance RDS(ON) to minimize conduction losses. The switching frequency above 1MHz enables low output voltage ripple and reduced external inductor and capacitor sizes. The SY8089 integrates short-circuit and overvoltage lockout protection. Temperature range: -40°C to 85°C
Applications
- LCD TVs
- Set-top boxes
- Network PCs
- Mini notebooks
- Access point routers
Key features
- Low on-resistance RDS(ON) for internal switches (high/low side): 110mΩ/80mΩ
- 2.7 - 5.5V input voltage range
- 2A continuous, 3A peak load current capability
- 1MHz switching frequency minimizes external components
- Internal soft-start limits inrush current
- Robust short-circuit protection:
- SY8089: Latch-off protection
- SY8089A: Hiccup mode protection
- Robust overvoltage protection:
- SY8089: Latch-off protection
- SY8089A: Non-latch protection
- 100% duty cycle operation
- RoHS compliant and halogen-free
- Compact package: SOT23-5
