SilergyDatasheet (PDF)

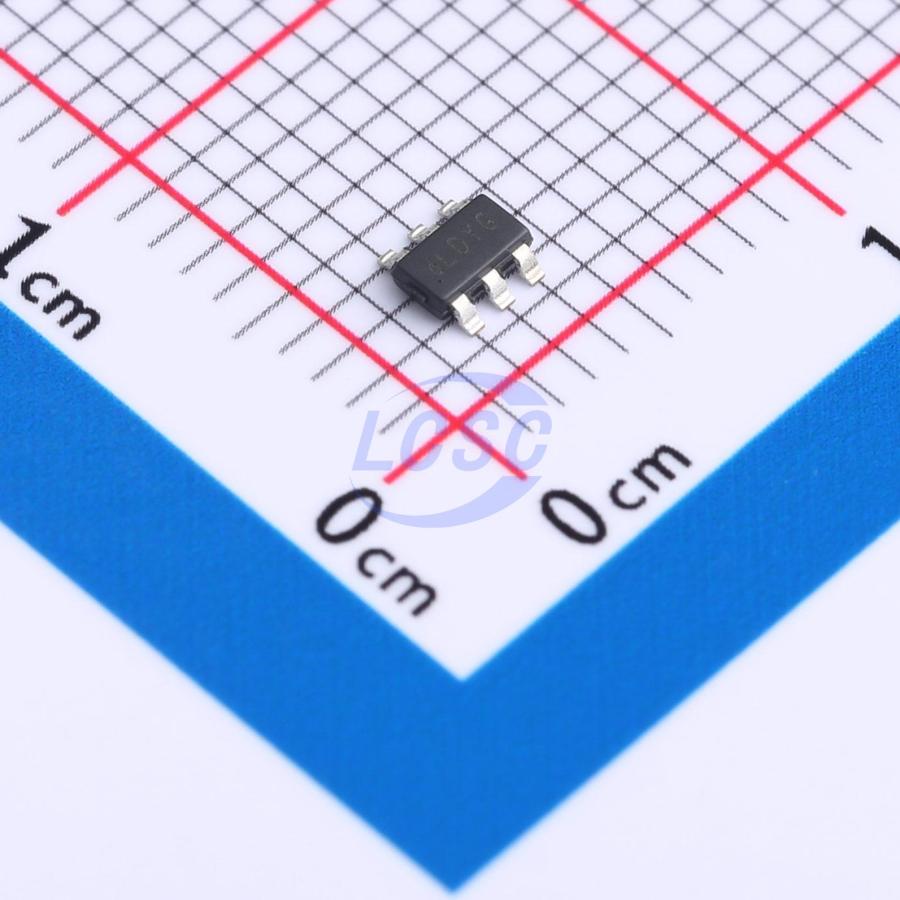

SY8104IADC
Buck Switching Regulator IC 1 Output SOT-23-6
SOT-23-6RoHSActive
High Efficiency, Fast Response, 4.0A, 18V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8104IADC
- Store part #
- C3003360
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C3003360
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.95 | ₹184.75 |
| 50+ | ₹28.78 | ₹1,439.00 |
| 150+ | ₹25.26 | ₹3,789.00 |
| 500+ | ₹20.89 | ₹10,445.00 |
| 3,000+ | ₹18.13 | ₹54,390.00 |
| 6,000+ | ₹16.96 | ₹1,01,760.00 |
5 × ₹36.95
₹184.75
excl. GST
₹218.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8104IADC
₹184.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.2V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Quiescent Current
- 280uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
SY8104I is a high-efficiency 500kHz synchronous step-down DC/DC regulator capable of delivering up to 4A load current. It operates over a wide input voltage range of 4.2V to 18V and integrates both main and synchronous switches with ultra-low on-resistance RDS(ON) to minimize conduction losses. The SY8104I employs a instant-on PWM architecture to achieve fast transient response in high step-down ratio applications while maintaining high efficiency at light loads. Furthermore, it operates at a quasi-constant frequency of 500kHz to minimize inductor and capacitor sizes.
Applications
- Set-top boxes
- Portable TVs
- DSL modems
- LCD TVs
- IP cameras
- Network equipment
Key features
- Low on-resistance RDS(ON) of internal switches (top/bottom): 55mΩ/36mΩ
- 4.2 - 18V input voltage range
- 4A output current capability
- 500kHz switching frequency minimizes external components
- Stable with 22μF output capacitor and 0.68μH inductor
- Instant-on PWM architecture for fast transient response
- Internal soft-start limits inrush current
- Cycle-by-cycle peak/valley current limiting
- Hiccup mode output short-circuit protection
- Thermal shutdown with auto-recovery
- Output auto-discharge
- Compact package: TSOT23-6
