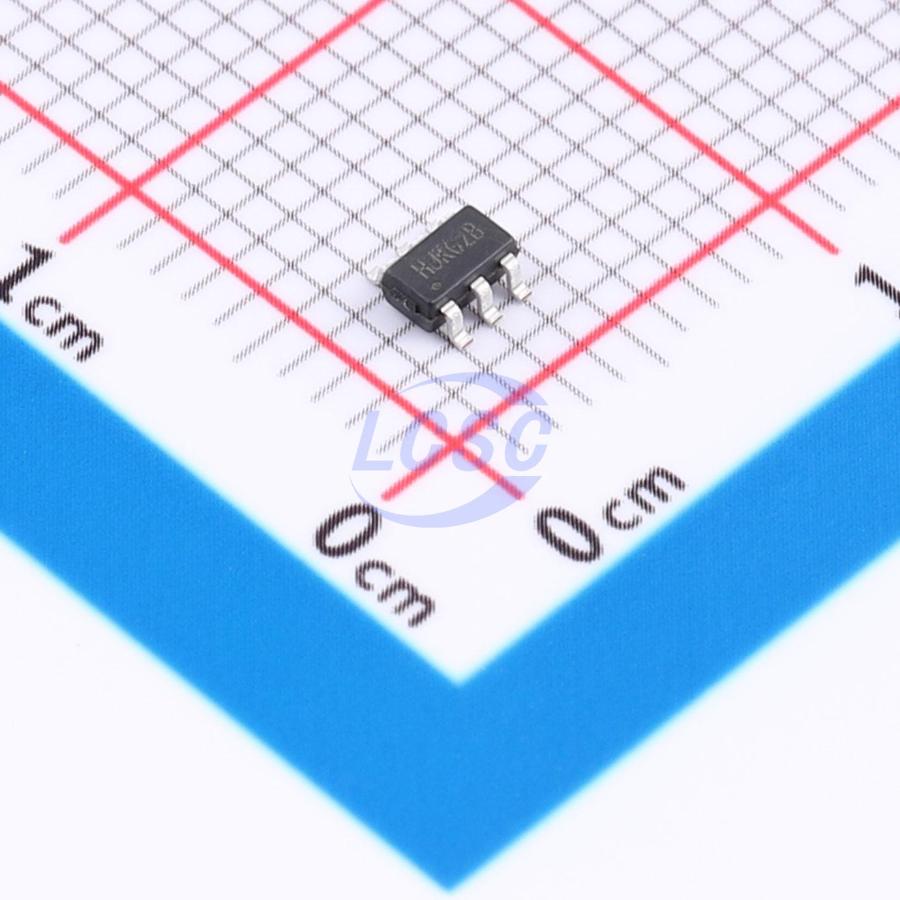

SY81102ABT

SY81102 is a high-efficiency 500kHz synchronous buck converter operating over an input voltage range of 4.5V to 18V, capable of delivering up to 2A of output current. It integrates both high-side and low-side MOSFETs with ultra-low Rds(on), helping to minimize conduction losses. The pseudo-constant 500kHz switching frequency allows the use of small external inductors and capacitors. The device employs a constant on-time, ripple-based control scheme to achieve fast transient response in high step-down ratio applications while maintaining high efficiency at light loads. It also provides cycle-by-cycle current limit protection, output undervoltage protection, and over-temperature protection. Only input and output capacitors, an inductor, a feedback resistor divider, and a feed-forward capacitor need to be selected according to the target application specifications. The SY81102 is available in a compact SOT23-6 package.

Applications

• Set-top box
• Portable TV
• DSL modem
• LCD TV
• IP camera
• Network equipment

Key features

• Low Rds(on) internal MOSFETs: 130mΩ (high-side), 105mΩ (low-side)
• Wide input voltage range: 4.5V ~ 18V
• Output current up to 2A
• ±1.5% 0.6V reference voltage
• Accurate EN threshold
• PFM light-load operation for high efficiency
• Internal soft-start limits inrush current
• Smooth startup with pre-biased output support
• 500kHz switching frequency minimizes external component size
• Constant on-time ripple-based control for fast transient response
• Stable with 10μF output capacitor
• Cycle-by-cycle valley and peak current limit protection
• Hiccup mode output undervoltage protection
• Auto-recovery overtemperature protection
• Input undervoltage lockout
• RoHS compliant and halogen-free
• Compact package: SOT23-6
