SilergyDatasheet (PDF)

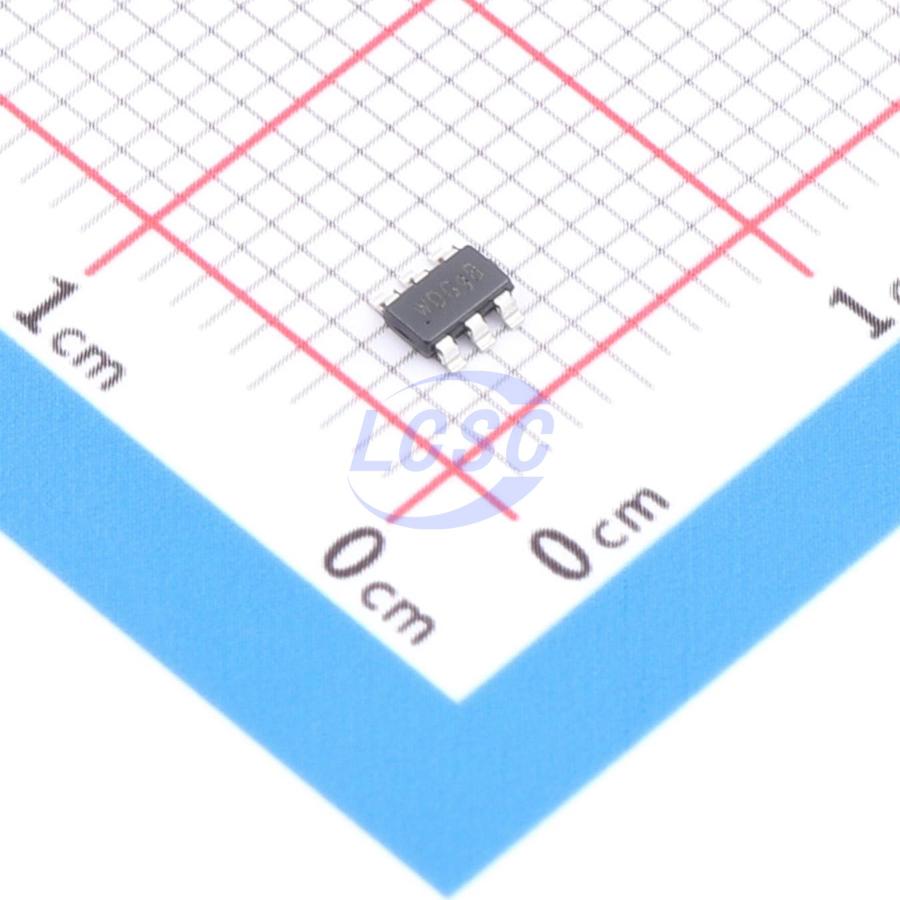

SY8113CADC
1MHz Step-down type Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High Efficiency 1MHz 3A 18V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8113CADC
- Store part #
- C459766
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,585 in stock
#C459766
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.05 | ₹260.25 |
| 50+ | ₹41.20 | ₹2,060.00 |
| 150+ | ₹36.44 | ₹5,466.00 |
| 500+ | ₹30.80 | ₹15,400.00 |
| 3,000+ | ₹27.76 | ₹83,280.00 |
| 6,000+ | ₹26.02 | ₹1,56,120.00 |
5 × ₹52.05
₹260.25
excl. GST
₹307.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8113CADC
₹260.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Set Top Box
- Portable TV
- Access Point Router
- DSL Modem
- LCD TV
Key features
- 1MHz switching frequency
- Instant PWM architecture to achieve fast transient responses
- Low output voltage ripple
- Small external inductor and capacitor sizes
- Internal softstart limits the current
- ±1.5% 0.6V reference
- TSOT23 - 6 package
- High efficiency
- Operates over a wide input voltage range from 4.5V to 18V
- Integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss
- Capable of delivering 3A current
