SilergyDatasheet (PDF)

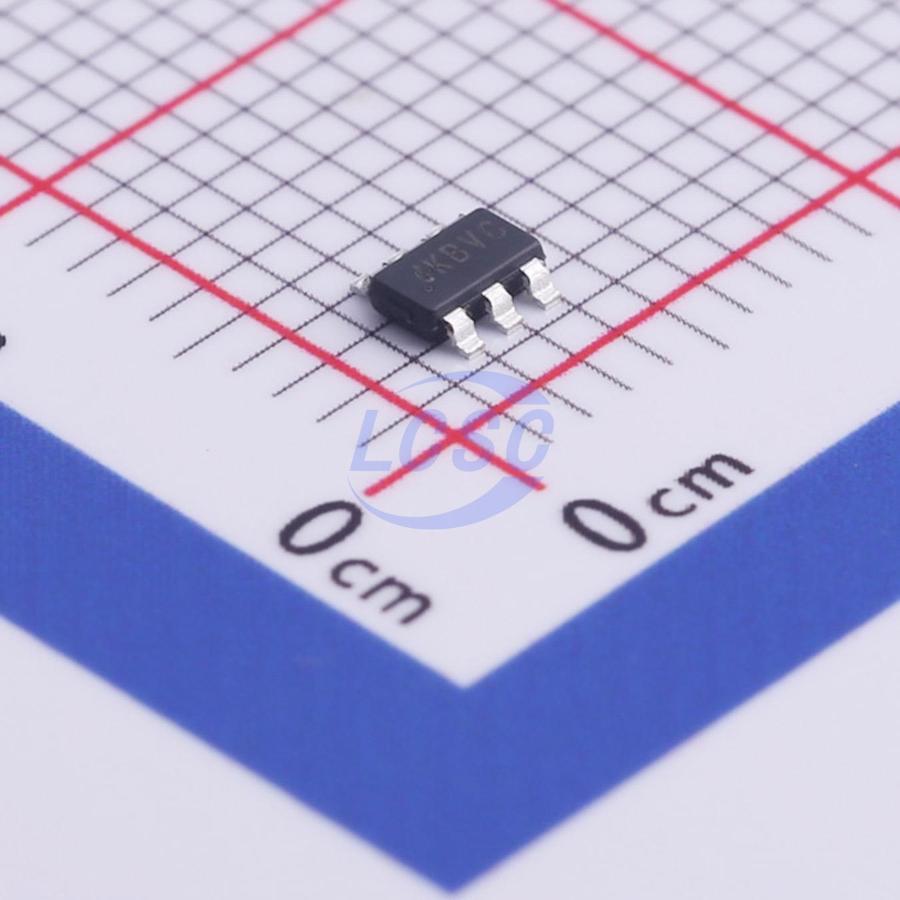

SY8113IADC
Step-down type 500kHz Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High Efficiency 3A 18V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8113IADC
- Store part #
- C479075
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,615 in stock
#C479075
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.37 | ₹101.85 |
| 50+ | ₹15.77 | ₹788.50 |
| 150+ | ₹13.53 | ₹2,029.50 |
| 500+ | ₹11.52 | ₹5,760.00 |
| 3,000+ | ₹10.43 | ₹31,290.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹20.37
₹101.85
excl. GST
₹120.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8113IADC
₹101.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.2V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
SY8113I is a high efficiency 500kHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current. It can operate over a wide input voltage range from 4.2V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8113I adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz to minimize the size of inductor and capacitor.
Applications
- Set Top Box
- Portable TV
- DSL Modem
- LCD TV
- IP CAM
- Networking
Key features
- Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ
- 4.2 - 18V Input Voltage Range
- 3A Output Current Capability
- 500kHz Switching Frequency Minimize the External Components
- Stable with 22μF COUT and 2.2μH Inductor
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal Soft-Start Limits the Inrush Current
- Cycle-by-cycle Peak/Valley Current Limitation
- Hic-cup Mode Output Short Circuit Protection
- Thermal Shutdown with Auto Recovery
- Output Auto Discharge Function
- Compact Package: TSOT23-6
