Silergy

SY8120B1ABC

500kHz Step-down type Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

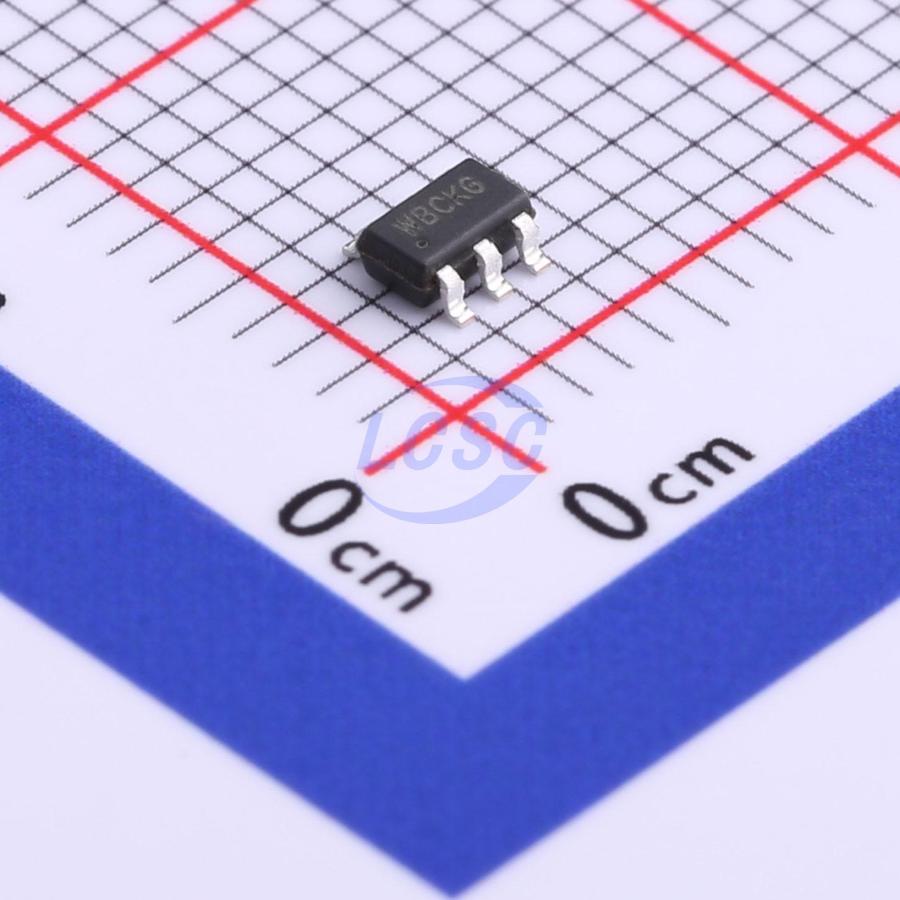

High Efficiency Fast Response, 2A, 18V Input Synchronous Step Down Regulator

Manufacturer: Silergy
Manufacturer part #: SY8120B1ABC
Store part #: C88474
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

44,820 in stock

#C88474

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.42	₹112.10
50+	₹17.24	₹862.00
150+	₹14.71	₹2,206.50
500+	₹12.46	₹6,230.00
3,000+	₹11.84	₹35,520.00
6,000+	₹11.47	₹68,820.00

Quantity (min 5, multiples of 5)

5 × ₹22.42

₹112.10

excl. GST

₹132.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY8120B1ABC

₹112.10 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.053 g

Overview

SY8120B1 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 2A load current. SY8120B1 operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8120B1 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500 kHz under heavy load conditions to minimize the size of inductor and capacitor. SY8120B1 is a synchronous buck regulator IC that integrates the PWM control, top and bottom switches on the same die to minimize the switching transition loss and conduction loss. With ultra low Rds(on) power switches and proprietary PWM control, this regulator IC can achieve the highest efficiency and the highest switch frequency simultaneously to minimize the external inductor and capacitor size, and thus achieving the minimum solution footprint. SY8120B1 provides protection functions such as cycle by cycle current limiting and thermal shutdown protection. SY8120B1 will sense the output voltage conditions for the fault protection.

Applications

Set Top Box
Portable TV
Access Point Router
DSL Modem
LCD TV
CCTV
IP CAM
Networking

Key features

Develops high efficiency synchronous stepdown DC-DC converter capable of delivering 2A load current
Operates over a wide input voltage range from 4.5V to 18V
Integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss
Adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads
Operates at pseudo-constant frequency of 500 kHz under heavy load conditions to minimize the size of inductor and capacitor
Integrates the PWM control, top and bottom switches on the same die to minimize the switching transition loss and conduction loss
Can achieve the highest efficiency and the highest switch frequency simultaneously to minimize the external inductor and capacitor size, and thus achieving the minimum solution footprint
Provides protection functions such as cycle by cycle current limiting and thermal shutdown protection
Senses the output voltage conditions for the fault protection
