SilergyDatasheet (PDF)

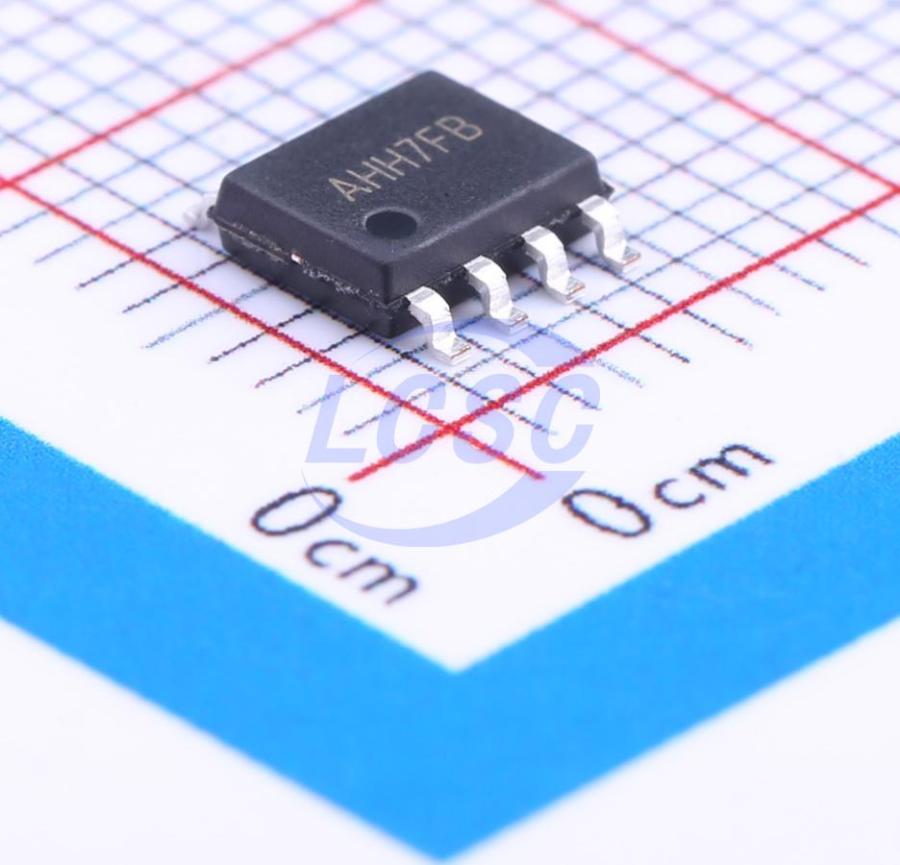

SY8205FCC
500kHz Step-down type Adjustable 5A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators
SOIC-8-EPRoHSActive
High Efficiency Fast Response, 5A, 30V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8205FCC
- Store part #
- C111875
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,721 in stock
#C111875
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.76 | ₹49.76 |
| 10+ | ₹38.59 | ₹385.90 |
| 30+ | ₹33.00 | ₹990.00 |
| 100+ | ₹28.13 | ₹2,813.00 |
| 500+ | ₹26.86 | ₹13,430.00 |
| 1,000+ | ₹25.96 | ₹25,960.00 |
1 × ₹49.76
₹49.76
excl. GST
₹58.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY8205FCC
₹49.76 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Built-in LDO regulator;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.243 g
Overview
SY8205 develops a high efficiency synchronous stepdown DC-DC converter capable of delivering 5A output current. SY8205 operates over a wide input voltage range from 4.5V to 30V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8205 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under continous conduction mode to minimize the size of inductor and capacitor.
Applications
- LCD - TV
- SetTop Box
- Notebook
- Storage
- High power AP router
- Networking
Key features
- Low RDS(ON) for internal switches (top/bottom): 70/40 mΩ
- 4.5 - 30V input voltage range
- Instant PWM architecture to achieve fast transient responses
- External softstart limits the inrush current
- Pseudo-constant frequency: 500kHz at heavy loads
- 5A continuous, 6A peak load current capability
- 1.5% 0.6V reference
- Output over current limit
- Output short circuit protection with current fold back
- Thermal shutdown and auto recovery
- RoHS Compliant and Halogen Free
- Compact package: DFN3x4 - 12/SO8E
