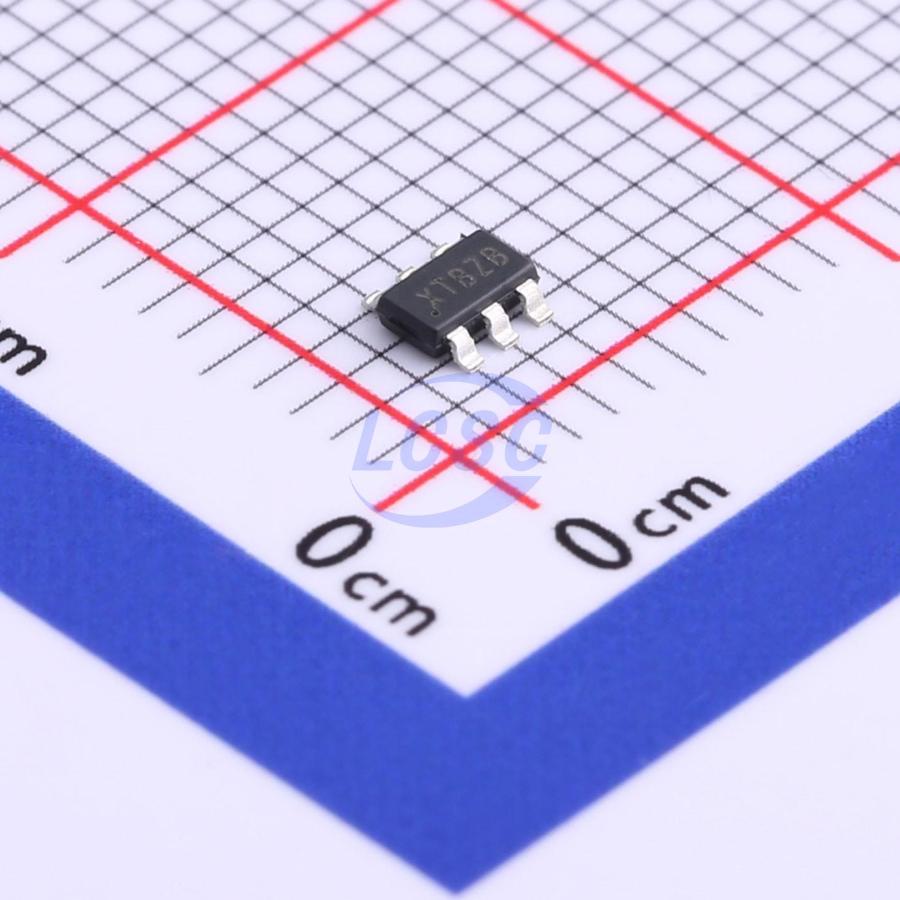

SY8253ADC
500kHz Step-down type Adjustable 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 500kHz 3A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8253ADC
- Store part #
- C93736
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,215 in stock
#C93736
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.37 | ₹241.85 |
| 50+ | ₹40.92 | ₹2,046.00 |
| 150+ | ₹23.69 | ₹3,553.50 |
| 500+ | ₹19.71 | ₹9,855.00 |
| 3,000+ | ₹17.94 | ₹53,820.00 |
| 6,000+ | ₹16.87 | ₹1,01,220.00 |
5 × ₹48.37
₹241.85
excl. GST
₹285.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8253ADC
₹241.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~23V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The SY8253 is a high efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 3A current. The SY8253 operates over a wide input voltage range from 4.5V to 23V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 500 kHz switching frequency. It adopts the instant PWM architecture to achieve fast transient responses for high step down applications
Applications
- Set Top Box
- Portable TV
- Access Point Router
- DSL Modem
- LCD TV
Key features
- low RDS(ON) for internal switches (top/bottom): 105 mΩ/50 mΩ
- 4.5 - 23V input voltage range
- 3A output current capability
- 500 kHz switching frequency
- Instant PWM architecture to achieve fast transient responses
- Cycle-by-cycle peak current limitation
- Internal softstart limits the inrush current
- Hic-cup mode output short circuit protection
- ± 1.5% 0.6V reference
- Power good indicator (SY8253AIC only)
- TSOT23 - 8/ TSOT23 - 6 package
