SilergyDatasheet (PDF)

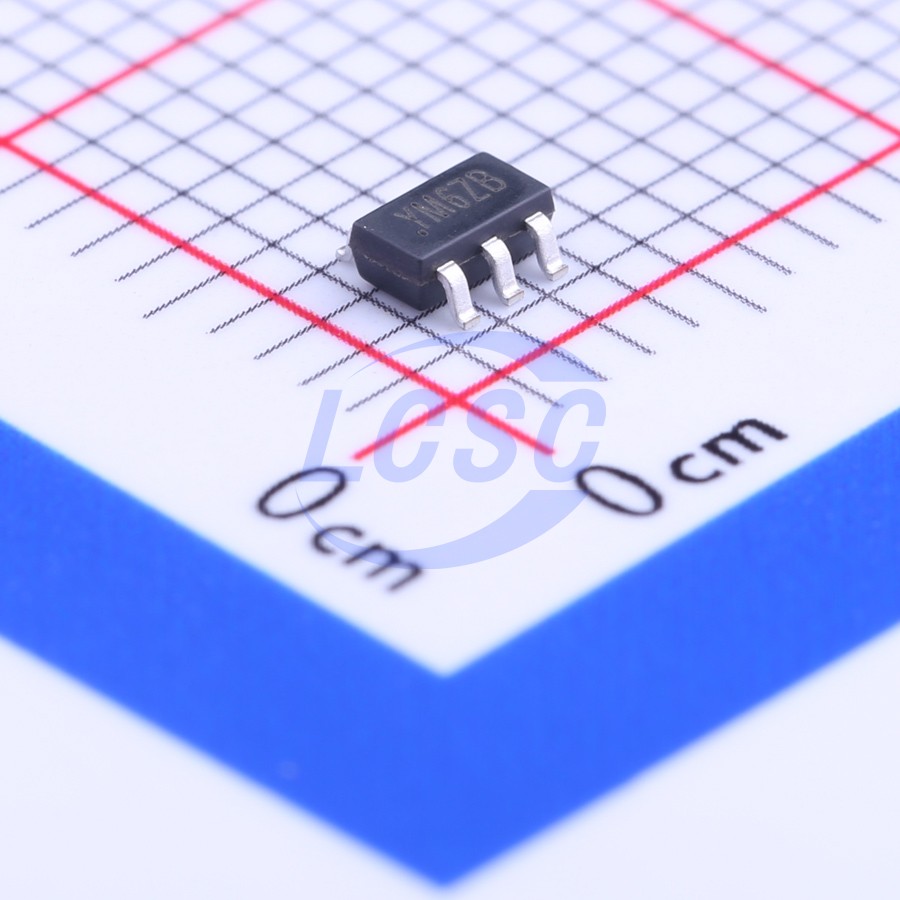

SY8291ABC
800kHz Step-down type Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 800kHz 40V Input 1.2A Asynchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8291ABC
- Store part #
- C125896
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,570 in stock
#C125896
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.58 | ₹142.90 |
| 50+ | ₹22.24 | ₹1,112.00 |
| 150+ | ₹19.52 | ₹2,928.00 |
| 500+ | ₹16.14 | ₹8,070.00 |
| 3,000+ | ₹14.62 | ₹43,860.00 |
| 6,000+ | ₹13.72 | ₹82,320.00 |
5 × ₹28.58
₹142.90
excl. GST
₹168.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8291ABC
₹142.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 160uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The SY8291 is a high efficiency 800 kHz, adaptive constant OFF time controlled asynchronous step-down DC-DC regulator capable of delivering 1.2A output current respectively. The SY8291 can operate over a wide input voltage range from 5V to 40V and integrate the main switch with very low Rds(on) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 800 kHz switching frequency.
Applications
- Set Top Box
- Portable TV
- Access Point Router
- DSL Modem
- LCD TV
Key features
- 5 - 40V input voltage range
- Low Rds(on) for internal N-channel Power FET: 180 mΩ
- 800 kHz switching frequency
- Adaptive constant OFF time control
- Internal softstart limits the inrush current
- 2% 0.6V reference
- RoHS Compliant and Halogen Free
- Compact package: SOT23-6
