SilergyDatasheet (PDF)

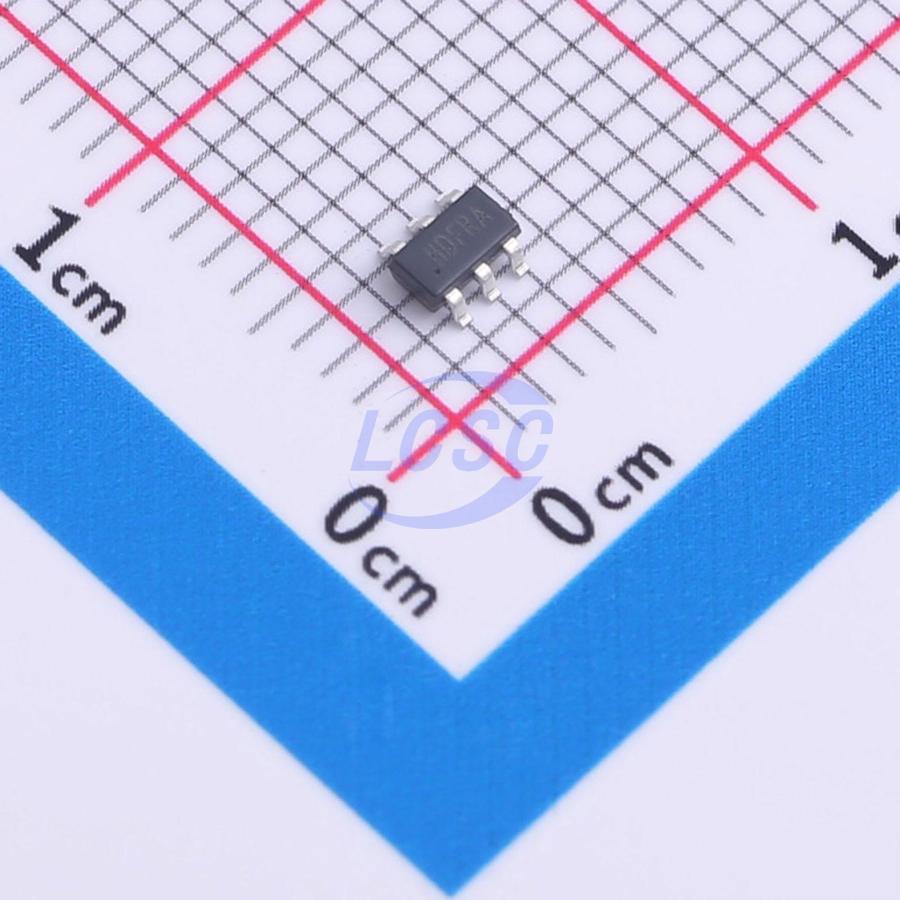

SY8292ABC
Step-down type 800kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 800kHz 40V Input 2A Asynchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8292ABC
- Store part #
- C83336
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,632 in stock
#C83336
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.77 | ₹58.77 |
| 10+ | ₹46.58 | ₹465.80 |
| 30+ | ₹41.58 | ₹1,247.40 |
| 100+ | ₹35.05 | ₹3,505.00 |
| 500+ | ₹32.22 | ₹16,110.00 |
| 1,000+ | ₹30.48 | ₹30,480.00 |
1 × ₹58.77
₹58.77
excl. GST
₹69.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8292ABC
₹58.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 800kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 160uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The SY8292 is a high efficiency 800kHz, adaptive constant OFF time controlled asynchronous step-down DC/DC regulator capable of delivering 2A output current. The SY8292 can operate over a wide input voltage range from 5V to 40V and integrate main switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 800 kHz switching frequency.
Applications
- Set Top Box
- Portable TV
- Access Point Router
- DSL Modem
- LCD TV
Key features
- 5 - 40V Input Voltage Range
- Low RDS(ON) for Internal N-channel Power FET: 180 mΩ
- 800kHz Switching Frequency
- Adaptive Constant OFF Time Control
- Internal Soft-start Limits the Inrush Current
- 2% 0.6 Reference
- Hic-p Mode Short Circuit Protection
- Cycle Peak Current Limit
- Normal Shutdown Protection
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6
