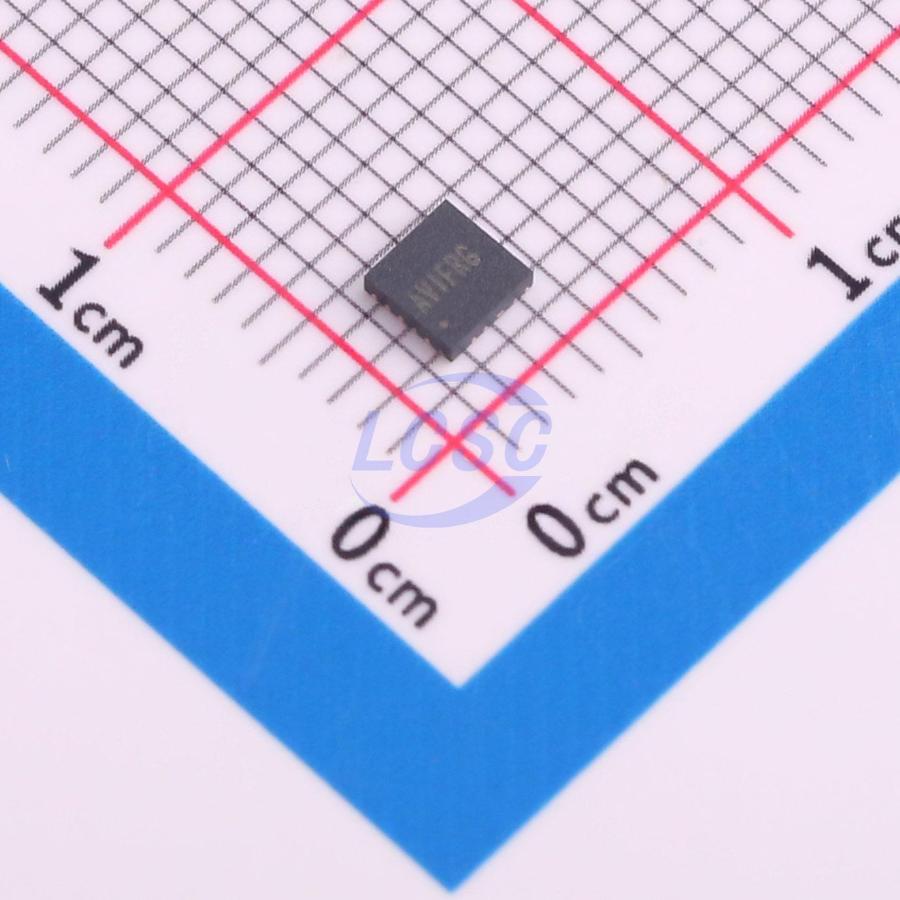

SY8368AQQC

Buck Switching Regulator IC Adjustable 5V 1 Output 8A QFN-12(3x3)

QFN-12(3x3)RoHSActive

High Efficiency Fast Response 8A Continuous, 16A Peak, 28V Input Synchronous Step-Down Regulator

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,634 in stock

#C207642

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹86.64

₹86.64

excl. GST

₹102.24 incl. 18% GST

SY8368AQQC

₹86.64 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 800kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Hiccup current limiting;Built-in LDO regulator;Operating status indication
Topology: Buck
Output Type: Adjustable
Operating Voltage: 4V~28V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 8A
Quiescent Current: 100uA

The SY8368A develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 8A continuous, 16A peak current.
The SY8368A operates over a wide input voltage range from 4.0V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The SY8368A adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads.
It operates at pseudo-constant frequency of 800kHz under continuous conduction mode to minimize the size of inductor and capacitor.
4.0 - 28V Wide Input Voltage Range
Low RDS(ON) for Internal Switches: 20/10mΩ
Instant PWM Architecture to Achieve Fast Transient Response
Internal 600μs Soft-start Limits the Inrush Current
Pseudo-constant Frequency: 800kHz
8A Continuous, 16A Peak Output Current Capability
±1% 0.6V Reference Voltage
Hiccup Mode SCP, OVP
Thermal Shutdown with Auto Recovery
RoHS Compliant and Halogen Free
